60pcs/Min Corrugated Paper Chain Feeder Printer Slotter

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMYS-LT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details film, wooden case
Delivery Time 25 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 30 sets/month
Product Details
Application Machinery & Hardware Packaging Material Plastic, Wood
Condition New Applicable Industry Manufacturing Plant, Printing Shops, Advertising Company,Packing Company
Voltage 220V/380V/440V Warranty 1 Year
Type Printing Machine After-sales Service Provided Engineer Service Oveaseas
Speed 0-60 Pieces/min Color Customer's Request
High Light

chain feeder printer slotter


corrugated paper printer slotter


60pcs/min flexo slotter

Leave a Message
Product Description

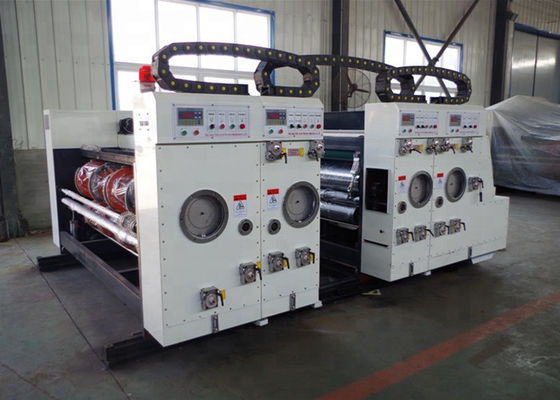

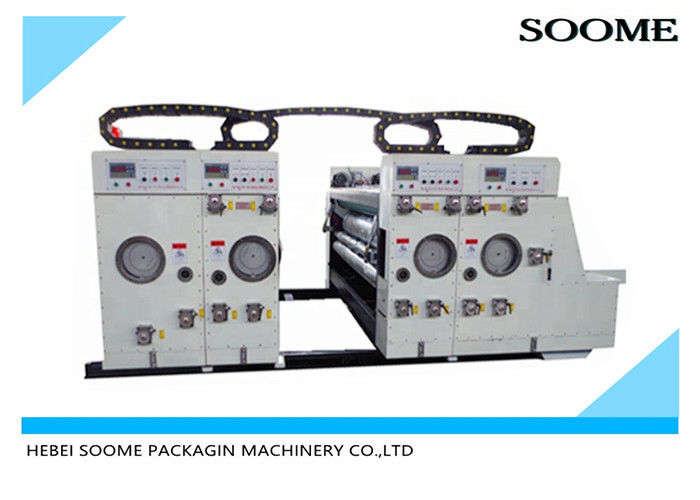

60pcs / Min Corrugated Paper Chain Feeder Flexo Printer RS4 Machine




Firstly will be printed sentences and pictures to make plate, installed on the flexo printer, then by artificial or printing ink coating on the plate there is words and images, and then directly or indirectly, transferring to the paper or other substrates (such as textile, metal, plastic, leather, wood, glass and ceramics), so as to reproduce the same as the plate of the print for the chain feeder flexo printer RS4 machine.


Functions and Characteristics


1.The chain feeder flexo printer RS4 machine composed with printer, slotter parts, can process 1-10mm cardboard printing creasing slotting etc. procedures.
2.Chain feeder flexo printer RS4 machine, wall board material is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing, center distance of holes can reach ±0.01mm.
3.Helical tooth gears on main drive of chain feeder flexo printer RS4 machine which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears.
4.Chain feeder flexo printer RS4 machine adopts the planetary gears phase for the printer slotter driving structure, precise and durable. Phase adjustment adopt Taiwan motor and high quality sensor control, precision is ±0.1mm, exact and reliable.
5.All bearings with thie chain feeder flexo printer RS4 machine use HRB brand.
6.Chain feeder flexo printer RS4 machine adopts electrical separation, pneumatic locking, pneumatic edition lifting, electric ink distribution, can realize the ink continuous supplying when stop the machine, avoid the ink drying and fading phenomenon when machine stop will affect the printing effect.
7.Chain feeder flexo printer RS4 machine adopts separation positioning by pneumatic, keep the gears engage position not change when machine separated, the dimensions will not change, improved the production efficiency.
8.Adopt crosshead shoe of the chain feeder flexo printer RS4 machine, for the paper 1mm-10mm thickness, the gears meshing gap keep the same, assure the printing precision and prolong the gears using lifetime.
9.Ink guiding system adopt high precision anilox roller with independent motor for ink distribution, high quality diaphragm pump supply ink, can adjust the ink volume randomly, improved the ink supplying more average.
10.Chain feeder flexo printer RS4 machine adopt electrical counter, can control the paper qty exactly, match with warning alarm, can warn workers to keep safe when open or adjust the machine.
11.Use CHINT brand electrics.


Technical Parameters


    No.                               Item                                1200*2600
     1                     Economic speed                              40-60pcs/min
     2                    Max.Feeding size                             1200*2600mm
     3                    Max.Printing size                             1200*2300mm
     4               Suitable paper thickness                                  1-10mm
     5                    Main motor power                                    5.5kw
