Paperboard 60pcs/Min 2 Colour Flexo Printing Machine With Slotter

Paperboard 60pcs/Min 2 Colour Flexo Printing Machine With Slotter

  • Paperboard 60pcs/Min 2 Colour Flexo Printing Machine With Slotter
  • Paperboard 60pcs/Min 2 Colour Flexo Printing Machine With Slotter
Paperboard 60pcs/Min 2 Colour Flexo Printing Machine With Slotter
Product Details:
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMYS-LT2400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New Brand NameBrand NameBrand NameBrand NameBrand Name: SOOME
Color: Customize Material: Steel
Application: Cardboard Printing And Slotting Machine Type: Flexographic Printer
After-sales Service Provided: Engineer Service Oveaseas Voltage: 220V/380V/440V
Automatic Grade: Automatic Warranty: 1 Year
Highlight:

paperboard 2 colour flexo printing machine

,

60pcs/min 2 colour flexo printing machine

,

2 colour flexo printing machine with slotter

60pcs/Min 2 Colour Flexo Printing Machine With Slotter For Paperboard

1. Summarize

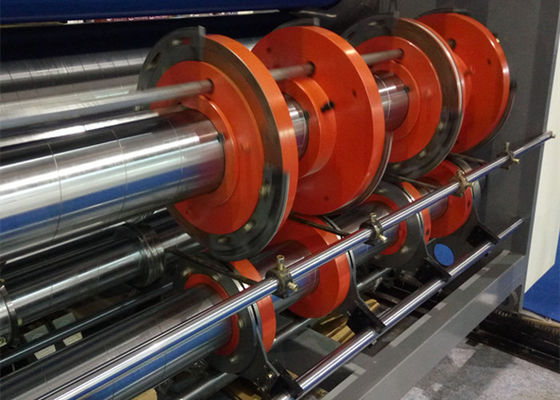

2 colour flexo printing machine with slotter for paperboard adopts electric counter, can control the paper quantity exactly, adjusting 4 slotting knives by manual together to change the slotting depth together, finish the corrugated carton box height adjustment in one time together. manual 2 colour flexo printing machine with slotter for paperboard transverse moves of 4 slotting knives separately. The 2 colour flexo printing machine with slotter for paperboard could be suitable for 3/5/7 layers corrugated paperboards production.



2. Features and Characteristics



1.The 2 colour flexo printing machine with slotter for paperboard machine composed with printer, slotter parts, can process 1-10mm cardboard printing creasing slotting etc. procedures.
2.Wall board material of this 2 colour f
lexo printing machine with slotter for paperboard is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing for the 2 colour flexo printing machine with slotter for paperboard, center distance of holes can reach ±0.01mm.
3.Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears.
4.The 2 colour f
lexo printing machine with slotter for paperboard adopt the planetary gears phase for the printer slotter driving structure, precise and durable. Phase adjustment adopt Taiwan motor and high quality sensor control, precision is ±0.1mm, exact and reliable.
5.All bearings use HRB brand.
6.Adopt electrical separation, pneumatic locking, pneumatic edition lifting, electric ink distribution, can realize the ink continuous supplying when stop the machine, avoid the ink drying and fading phenomenon when machine stop will affect the printing effect.
7.The
2 colour flexo printing machine with slotter for paperboard adopts separation positioning by pneumatic, keep the gears engage position not change when machine separated, the dimensions will not change, improved the production efficiency.
8.
The 2 colour flexo printing machine with s
lotter for paperboard adopts crosshead shoe, for the paper 1mm-10mm thickness, the gears meshing gap keep the same, assure the printing precision and prolong the gears using lifetime.
9.Ink guiding system adopt high precision anilox roller with independent motor for ink distribution, high quality diaphragm pump supply ink, can adjust the ink volume randomly, improved the ink supplying more average for
2 colour flexo printing machine with slotter for paperboard.
10.
The 2 colour flexo printing machine with slotter for paperboard adopts electrical counter, can control the paper qty exactly, match with warning alarm, can warn workers to keep safe when open or adjust the machine.
11.Use CHINT brand electrics.(As your need )



3.Technical Parameters



No.

Item

1200x2600
1

Economic speed

40-60pcs/min

2

Max. Feeding size

1200mm×2600mm
3

Max. Printing size

1200mm×2300mm
4

Suitable paper thickness

1-10mm
5

Inner wallboard width

2600mm
6

Knives outer diameter

Ø420mm
7 Main motor power 5.5kw

Paperboard 60pcs/Min 2 Colour Flexo Printing Machine With Slotter 0
