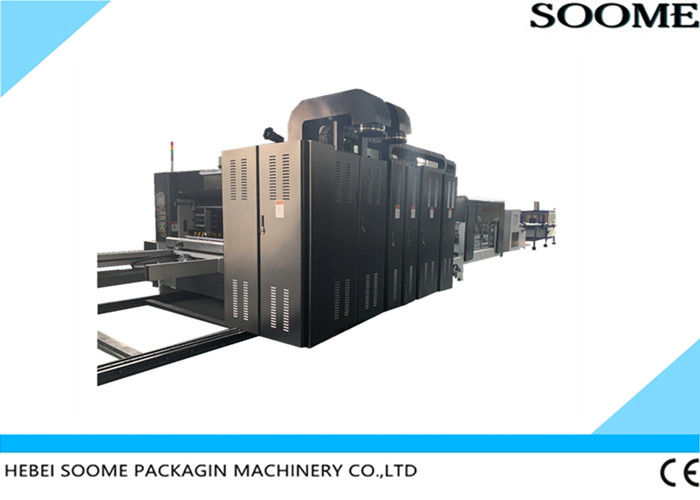

Inline 280pcs/Min Flexo Printer Slotter Die Cutter

Inline 280pcs/Min Flexo Printer Slotter Die Cutter

  • Inline 280pcs/Min Flexo Printer Slotter Die Cutter
  • Inline 280pcs/Min Flexo Printer Slotter Die Cutter
  • Inline 280pcs/Min Flexo Printer Slotter Die Cutter
Inline 280pcs/Min Flexo Printer Slotter Die Cutter
Product Details:
Place of Origin: Cangzhou
Brand Name: SOOME
Certification: CE
Model Number: SMLX-
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Wrapped with film / foam / blanket
Delivery Time: 70-90 working days
Payment Terms: L/C, T/T
Supply Ability: 5 sets/month
Contact Now
Detailed Product Description
Type: Automactic Carton Box Printing Machine After-sales Service Provided: Engineer Service Oveaseas,Avaliable,Online Support
Voltage: 220V/380V/440V Automatic Grade: Full-Atuomatic
Warranty: 1 Year Name: Full Automatic Flexo Printer Slotter Die Cutter Machine
Application: Carton Box Making Machine Color: Customize
Speed: 280pcs/min Condition: New
Usage: Paperboard Corrugated Carton Box Making Function: High Efficiency
Colors: 1-6 Colors Material: High Quality Steel Materials
Plate Type: Flexo Ink Printing Dimensions(l*w*h): According To Machine Model
High Light:

inline flexo printer slotter die cutter


280pcs/min flexo printer slotter die cutter


280pcs/min printer slotter die cutter

nline flexo printer NC slotter die cutter vibrator folder gluer strapper


I. Feeder unit(1 group)


1. Complete machine group

1)Multiple function control with touch screen and PLC, reliable system, low failure rate, simple operation.

2)This machine with the function of automatic zero, auto version adjustment, memory recovery, paper skip feeding, auto lifting & falling edition, etc.

3)Machine clutch controlled by electric, set with alarm bell.

4)Pneumatic interlocking device.


II. Printer unit(3 groups)


1. Printing roller

1)Seamless steel pipe, with surface grinding, hard chrome plating.

2)Printing roller made of high quality steel, with surface grinding and hard chrome plating.

3)Dynamic balancing correction, stable operation.

4)Ratchet wheel fixed rolled shaft.

5) Install & uninstall printing edition controlled by electric.


2. Printing pressing roller

1) Seamless steel pipe, with surface grinding, hard chrome plating.

2) Dynamic balancing correction, stable operation.

3) Automatic locking on adjustment of pressing roller space, adjust scope is 0-11mm.

4) Automatic return to zero device, decrease the paper waste.


3. Anilox roller

1)With surface grinding on the steel pipe, pressing checkered, chrome plating.

2)Dynamic balancing correction, stable operation.

3)Cooperated with pneumatic lifting device.

4) Matched with surpass clutch, distribute and clean the ink more easily.


4. Rubber roller

1) Wrapped with wear-resisting rubber on the steel pipe surface.

2) Rubber roller with special grinding to reach good effect of ink transmission.

3) Adopt automatic locking for the space adjustment between rubber rollers.


5. Phase adjustment mechanism

1)Printing phase adopt NC control 360°adjustment(running & stop both adjustable).

2)Transverse phase adopt NC controller, control scope is 15mm.

3) Printing roller adopt NC phase adjustment, auto zero, high precision on edition adjustment.

4) Printing roller adopt frequency converter phase adjustment, return to zero and edition adjustment fast, precise.

5) Automatic restoration system after the printing edition cleaning.


III. Slotter unit (1group)


1. Single shaft with dual cutter. Electric adjust the carton height with high precision.

1) Creaser, pre-creaser, diecutting cutter holder move together by NC controller.

2) Spacing adjustment of creaser and pre-creaser adopt self-locking mechanism, scope is 0-11mm.


2. Sizes adjustment

1) Slotter knives adjustment has two ways: one can input sizes into the touch screen, press start to change in lengthways and left right at the same time. Another can adjust by electrical buttons to move one by one.


IV. Rotary die-cutter (1group)


1. Creaser

1)Creaser and pre-creaser Ø180mm,above crease wrapped with optimal rubber will not damage the paper.

2)Spacing adjustment of creaser and pre-creaser adopt self-locking mechanism, scope is 0-11mm.


2. Rubber mat

1) Axial direction auto circulation translation.

2) Equipped with linear compensation device, with average diecutting of rubber mat.

3) Rubber roller, diecutting roller: Computer dynamic balancing correction, surface grinding, hard chrome plating.

4) With pneumatic lifting device, protect the rubber mat.

5) Equip with the rubber mat grinding device to repair the damaged anvil blanket.

6) Has the waste scraps output conveyor.


V. Inline down type folder gluer ( 1group)


Main features


1. The average glue box machine speed is 20000 pcs/hour, which is fast and greatly improves production efficiency. Can process 1-12 Taobao express cartons.

2. Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can complete the whole process.

3. The folding beam adopts elastic pressing wheel and belt conveying mode, which is accurate in conveying. The adjustment of folding beam and folding box size and paper width are all automatically completed.

4. The whole paper counting and stacking section: the automatic sizing device, paper receiving, stacking, and discharge are precisely controlled by the frequency conversion motor system, and the circulation speed is fast. The counting part can move left and right according to the folded size of the cardboard.

5. This machine can be adjusted online with the printing machine. The phase size of each unit, the size of the transverse position of each unit, the size of the leading edge paper baffle, the slotting cutter and the length of the press line can be adjusted online at the linkage line control panel. Width and height dimensions. Avoid cardboard waste caused by long adjustment time.


Inline 280pcs/Min Flexo Printer Slotter Die Cutter 0
