Place of Origin: | Made in China |
Brand Name: | SOOME |
Certification: | CE |
Model Number: | SMYS-2500 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wrapped with film or wooden case. |
Delivery Time: | 14 days after deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 sets per month |
After-sales Service Provided: | Avaliable | Voltage: | 380V 50HZ/220V 50HZ |
---|---|---|---|
Automatic Grade: | Automatic | Type: | Carton Printer Slotter Die Cutter Machine |
Warranty: | 1 Year | Name: | Economic Lead Edge Feeder Printer Slotter Die Cutter With Stacker |
Application: | Corrugated Carton Box | Color: | Customer's Request |
Condition: | New | Colors: | 1-4 Colors |
Highlight: | feeder flexo printer slotter die cutter,Automatic flexo printer slotter die cutter,120pcs/min printer slotter die cutter |

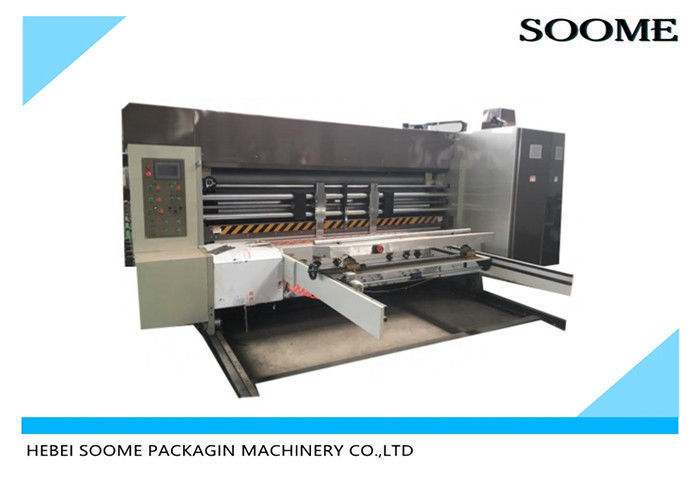

Economic Speed Automatic Feeder Flexo Printer With Slotter Die Cutter
Summarize
The flexo printer with slotter die cutter is generally composed of plate loading, inking, embossing, paper feeding (including folding) and other mechanisms. Its working principle of the flexo printer with slotter die cutter is: first make the text and image to be printed into a printing plate, install it on the printing machine, and then apply ink to the place where there are text and image on the printing plate by manual or printing machine of this flexo printer with slotter die cutter, and then directly or indirectly transfer it. It is printed on corrugated cardboard to reproduce the same print as the printing plate.
Features and Characteristics
Feeding Unit
1. Lead-edge Feeding System for this flexo printer with slotter die cutter, easy operation, high accuracy,(adopts sample lead feeder combined with first printing unit system).
2. 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission with flexo printer with slotter die cutter.
3. Left and right side of the baffle position manual adjustable, screw-driven for this flexo printer with slotter die cutter design.
4. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard under the flexo printer with slotter die cutter can also be processed.
Printing Unit
1. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running.
2. Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation with the flexo printer with slotter die cutter.
3. Pneumatic roller automatic lifting device and idle device.
4. Overrunning clutch and automatic idling device, to prevent the ink dried.
Slotting Unit
1. Lower slotting shaftdiameter155mm, surface grinding and hard chromium plating.
2. Slotting knife width 7mm, adjust scorers synchronously. Corner cutter can cut the edge width 50mm, mechanical adjustment of the knife holder transverse position.
3. Slotting knife holder gap adjusted by mechanism, range is 2~11mm.360°electric phase adjustment in positive and negative, digital display control.
4. Adjust the carton height by manual for the slotting unit of flexo printer with slotter die cutter.
Die-cutting Unit
1. The anvil rubber mat of this flexo printer with slotter die cutter imported excellent strength rubber pad, (Taiwan MaxDura), to ensure the service life, 10,000,000 times.
2. International standard die-cutting cylinder structure (roller diameter, screw holes horizontal and circumferentially distance), convenience of custom-made dies for the flexo printer with slotter die cutter.
Technical Parameters
Type |
Unit |
SMYS-3000 |
Plate roller diameter |
mm |
480 |
Plate roller length |
mm |
2500 |
Inner width of machine |
mm |
2600 |
Speed |
pcs/min |
120 |
Max printing area |
mm |
1400×2200 |
Max feeding paper size |
mm |
1450×2400 |
Feeding paper by skip |
mm |
1600x2400 |
Min feeding paper size |
mm |
400×720 |
Board thickness |
mm |
2-11 |
Print plate thickness |
mm |
7.2 |
Print roller axle circle-oriented regulating |
degree |
360°revolving |
Topping precision |
mm |
±0.5 |
Weight |
kg |
19000 |
