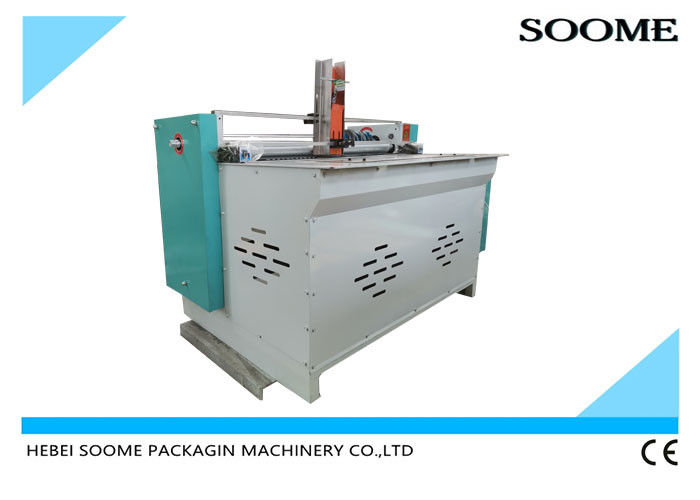

Adjustment Handle 45mm Corrugated Board Partition Machine

Adjustment Handle 45mm Corrugated Board Partition Machine

  • Adjustment Handle 45mm Corrugated Board Partition Machine
  • Adjustment Handle 45mm Corrugated Board Partition Machine
Adjustment Handle 45mm Corrugated Board Partition Machine
Product Details:
Place of Origin: Hebei Province China
Brand Name: SOOME
Certification: CE
Model Number: 1000 Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: wooden case with plastic film
Delivery Time: 15 days after depoist
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 per/mounth
Contact Now
Detailed Product Description
Min Slotting Distance: 45mm Type: Rotary Slotting Machine
Voltage: 220/380v Or According To Customer Need Automatic Grade: Automatic
Condition: New Warranty: 1 Year
Color: Customized Packaging Type: Cartons,Film
Machine Max Speed: 120pieces/min Max Feeding Size (L×W): 1000mm×300mm
Highlight:

45mm Corrugated Board Cutting Machine

,

corrugated rotary slotter machine

,

120pieces/min Corrugated Board Cutting Machine

Adjustment Handle 45mm Corrugated Board Partition Machine



Machine operation:



Choose the corrugated paperboard which you want to process, adjust the side feeding baffle . Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .

When the length of paperboard is big , can move the front feeding baffle right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles , adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .

 Adjust the back feeding baffle , adjustment method : loose the screws in circle of below picture , move the two back feeding baffles forwards or backwards , adjust the suitable positions according to the width of paperboard , after finishing adjustment , tight the screw and fix the baffles .

 Adjust the suction range of feeding table : first put one piece of paperboard on the feeding table , rotate the belt wheel which is with yellow circle in Picture Left , check the walking range of the pushing plate  . Ensure that the distance between the pushing plate and the paperboard is 2mm when the pushing plate move the extreme edge of machine , then it can push the paperboard and make it feed forwards. If need to adjust the position of pushing plate , loose the screws which are circled in Picture Right , find the suitable position , and fix the pushing plate .



Technical index:



Model 1000 type
Machine max speed 120 pieces/min
Max feeding size (L×W) 1000mm×300mm
Min feeding size (L×W) 100mm×75mm
Min slotting distance 45 mm
Slotting number 9 groups of slotting knives
Slotting width (Choose one according to the thickness of paperboard)
Dimension (Length*Width*Height) 1500mm×1450mm×1300mm



Machine maintenance:

Regular check the bearings of machine and clean once every half a year to one year. The other connection parts , need to add the engine oil every half a year .

Before start the machine , check if there is the impurity inside , if there is some parts worn or broken , after checking and no abnormity , then start the machine . The machine should keep clean and tidy in long time .

 Machine Warranty & After-sale Service



This machine has one year warranty for whole structure , not including the knives , rubber roller etc. easy-wear parts . In warranty period , except the easy-wear parts and the damage which is caused by wrong operation , if there is the problem with electric elements , gears , bearing etc. structure parts , we will provide the replaced parts for free .

Beyond the warranty period, if there is parts damaged or broken, we will get paid to provide the replaced part.

For all the operation , maintenance etc. problems in production , our company will provide the technical solution and help to our customer for free
