Place of Origin: | Made in China |
Brand Name: | SOOME |
Certification: | CE |
Model Number: | SMZX-BZD-2800 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wrapped with film or wooden case. |
Delivery Time: | 14 days after deposit. |
Payment Terms: | L/C, T/T |
Supply Ability: | 25 sets per month. |
Condition: | New | Automatic Grade: | Semi-Automatic |
---|---|---|---|
Voltage: | 380v 50 Hz | Driven Type: | Electric |
Weight: | 2150kg | Packaging Type: | Film |
Type: | Folding Gluing Machine | Certification: | CE Certificate |
Warranty: | 1 Year | Color: | Client Request |
Highlight: | paperboard folder gluer machine,corrugated folder gluer machine,2mm folder gluer machine |

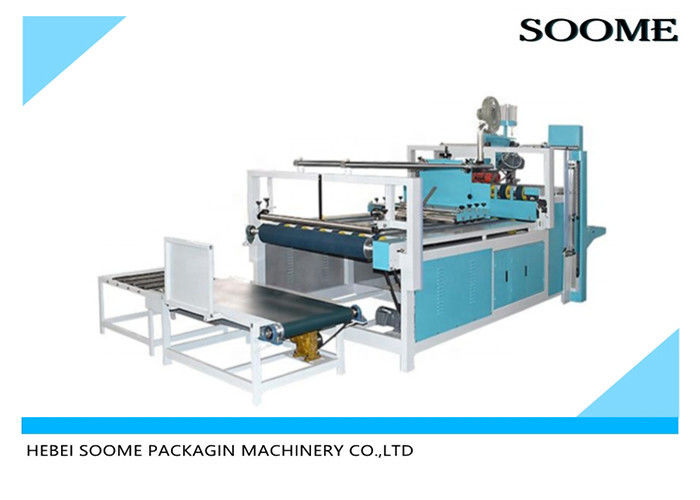

Semi-automatic for 2 - 12mm thickness corrugated paperboard folder gluer
Summarize
Folder Gluer is designed for forming corrugated carton boxes. This type folder gluer is the semi-automatic type one that feeding corrugated paperboards by manual, the labors could control the speed of incharge, and next with glue, folding and gluing, form into carton boxes, and then discharge and stack finished-product.
Semi-automatic folder gluer can be divided into two types: mainly used for folding, gluing, shaping, conveying, pressurizing, counting, drying and other functions of cartons. The whole folder gluer machine is controlled by the feeding department. , Glue coating part, shaping part, conveying and pressing part, receiving and counting part of folder gluer, etc. The operating procedure is that the worker manually folds the processed whole piece of cardboard and sends it to the gluing department. The gluing department automatically spreads glue on the bonding part of the paperboard, and sends it to the shaping department through a roller to shape it one by one to a certain amount. Press, blow dry and finally wait for completion.This semi-automatic folder gluer for standard double-folding and flapping one-piece outer packaging boxes, and the carton must be pressed along the corrugated "half-folding line", otherwise the glued carton may produce waste.
Features and Characteristics
This folder gluer is suitable to various kinds of corrugated cartons folding gluing. Easy to operate and learn for the folder gluer, no need experienced workers for this kind of folder gluer. Order changing fast within one minute.
The min. width and height of finished boxes that coming out from the folder gluer can reach to 260mm which is a good choice for carton manufacturer to own this folder gluer machine.
Main structure:
Folder gluer machine is composed of main machine frame, 2 small conveyor frames.
Main machine frame:
Machine frame, ascend and descend worktable, as for types of folder gluer, front part convey equipment, front part correction equipment of folder gluer, middle part convey equipment with folder gluer, middle part press together equipment, finished product side output equipment, electrical controlling device for the usage of folder gluer.
Technical Parameters:
SMZX-BZD-2800 |
|
Max. Size (L+W) x 2 |
2800mm |
Min. Size (L+W) x 2 |
340mm |
Max. Size (W+H) x 2 |
1515mm |
Min. Size (W+H) x 2 |
260mm |
Feeding pile height |
1000mm |
Motor power |
4kw |
Machine length |
5300mm |
Machine weight |
2150kg |
Machine speed |
60m/min |
