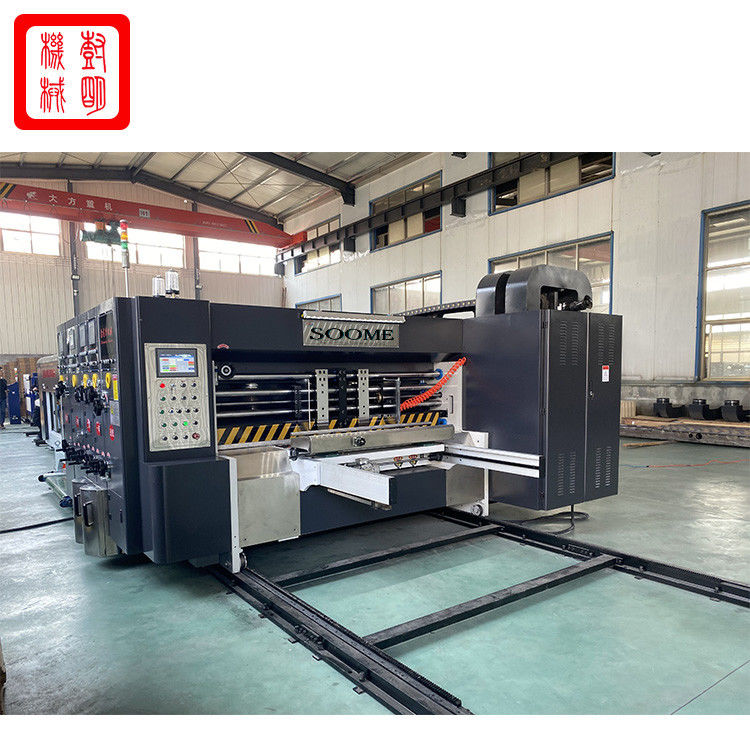

Electric 1.8m Width Flexo Printer Packaging Line
Voltage | 220/380/440V | Automatic Grade | Auto |
---|---|---|---|
Condition | New Condition | Driven Type | Electric |
Packaging Type | Plastic Film | Packaging Material | Plastic Film |
Dimension(l*w*h) | 4000*16000*2200 | Type | Packaging Line |
Weight | 22T | Certification | CE |
Color | 2-7 | Width | 1.8m-4m |
High Light | Flexo Printer Packaging Line,Electric Flexo Printer,1.8m width flexo printer |
Corrugated box slotting die cutter Printer Packaging Line
cardboard printing slotter die cutter machine online Printer Packaging Line
full automatic carton Printer Packaging Line
Specification/ Max feeding size(mm) |
1800/2000*800> Printer Packaging Line |
1800/2200*1000 Printer Packaging Line |
2500*1200/1400/1600 Printer Packaging Line |
2800*1200/1400/1600 Printer Packaging Line |
3200*1600 Printer Packaging Line |
|
Max speed pcs/min) | 250 | 200 | 160/150/120 | 150/140/120 | 120 | |
Min feeding size(mm) | 650*270 | 650*270 | 650*330/350/400 | 650*330/350/400 | 650*400 | |
Skip feeding size(mm) | 1800/2000*1000 | 1800/2200*1200 | 2500*1400/1600/1800 | 2800*1400/1600/1800 | 3200*1800 | |
=Cardboard Thickness= | 2-10 | 2-10 | 2-12 | 2-12 | 2-12 | |
Max. printing size(mm) | 1750/1950*750 | 1750/2150*950 | 2450*1180/1330/1580 | 2750*1180/1330/1580 | 3150*1580 | |
Print plate depth (mm) | 7.2 | |||||
Min slot (mm) |
Positive cut | 120*120*120*120 | 120*120*120*120 | 140*140*140*140 | 140*140*140*140 | 140*140*140*140 |
Reverse cut | 200*80*200*80 | 200*80*200*80 | 240*70*240*70 | 240*70*240*70 | 240*70*240*70 | |
Max die cutter area(mm) |
1700/1900*750 Printer Packaging Line |
1700/2100*930 Printer Packaging Line |
2400*1150/1310/1550 Printer Packaging Line |
2700*1150/1310/1550 Printer Packaging Line |
3100*1550 Printer Packaging Line |
Use for corrugated cardboard box making corrugated Printer Packaging Line
Use for pizza fruit vegetables ect boxes making Printer Packaging Line
Use for paperboard Printer Packaging Line
►The whole machine is designed and made according to high requirements with reliable and safety function;allows quick order changing and user friendly operation Printer Packaging Line;
►Select the excellent materials and parts,all orders are made of the fine steel,with chrome plating and harden treatment Printer Packaging Line;
►Driving gears are imported products,its grinding hardness is above 60 degrees Printer Packaging Line;
►Adopted joint ring-free technology,to reduce abrasion and achieve precise printing result Printer Packaging Line;
►With automatic zero setting and reset function Printer Packaging Line;
►Adopted gear lubricant auto self-balance device,to keep the lubricant levels in each unit uniform at all times Printer Packaging Line;
►Each working unit is motorized for open and close actions,with warning alarm system to ensure safety Printer Packaging Line;
►The distance adjustment of the feeding roll,press roll,and netted roll are achieved by electric control Printer Packaging Line;
►Continuous or skip feeding is available with counter;
►Copy sun automation lead edge feeder with strong vacuum transfer for precise and stable feeding;
►Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size cardboard.
