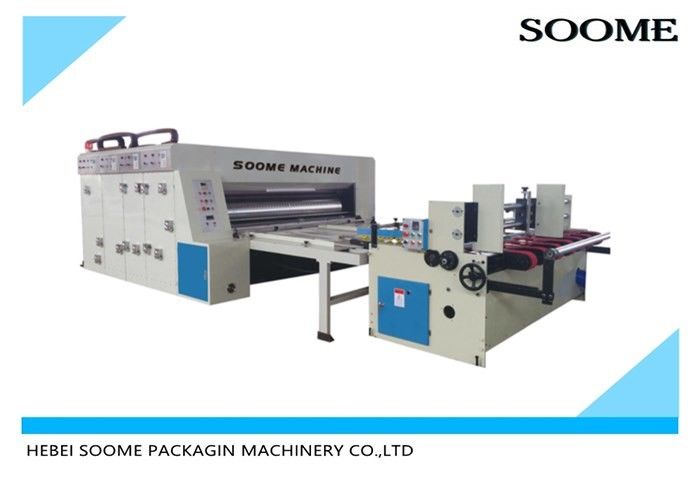

Paper Carton Doctor Blade 1mm 60pcs/Min Flexo Printing Machine

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMYS-LT2400
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wrapped with film or wooden case.
Delivery Time 14 days after deposit.
Payment Terms L/C, T/T, MoneyGram
Supply Ability 20 sets per month.
Product Details
Application Flexo Printing And Slotting Die Cutting Corrugated Paperboard Product Name Automatic Feeder Printing Machine
Plate Type Flexo Plate Color Customer's Request
Condition New Voltage 220V/380V/440V
High Light

Doctor Blade flexo printing machine


1mm flexo printing machine


60pcs/min flexo printing machine

Leave a Message
Product Description

Paper Carton Doctors Blade For Chain Printer Color Flexo Printing Machine



The graphic drawings to be printed are first made into a printing plate, mounted on a printing machine, and then the ink is coated manually or by a printing machine on the plate where there are words and images, and then directly or indirectly transferred to the paper or other substrate, so as to reproduce the same printing plate.


2.Features and Characteristics


1.The machine composed with printer, slotter parts, can process 1-10mm cardboard printing creasing slotting etc. procedures.

2.Wall board material is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing, center distance of holes can reach ±0.01mm.

3.Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears.

4.Adopt the planetary gears phase for the printer slotter driving structure, precise and durable. Phase adjustment adopt Taiwan motor and high quality sensor control, precision is ±0.1mm, exact and reliable.

5.All bearings use HRB brand.

6.Adopt electrical separation, pneumatic locking, pneumatic edition lifting, electric ink distribution, can realize the ink continuous supplying when stop the machine, avoid the ink drying and fading phenomenon when machine stop will affect the printing effect.


3.Technical Parameters


Model SMYS-LT2400
Item 1200*2600
Economic Speed 40-60pcs/min
Max.Feeding Size 1200*2600mm
Max.Printing Size 1200*2300mm
Suitable Paper Thickness 1-10mm
Main Motor Power 5.5kw
