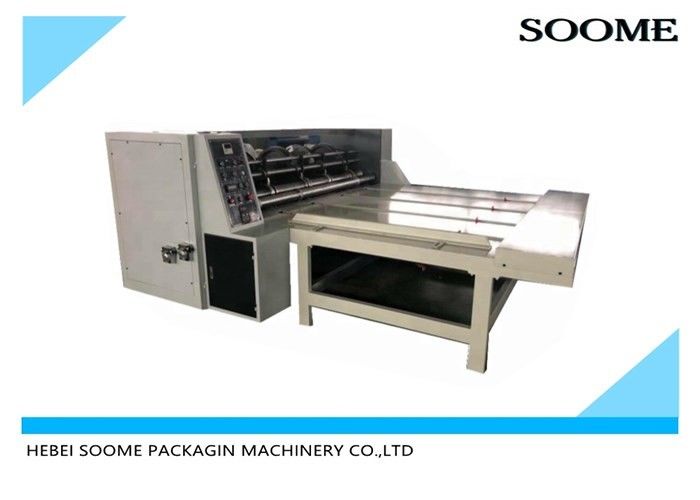

Chain Paperboard Feeder 10mm Rotary Slotting Machine

Chain Paperboard Feeder 10mm Rotary Slotting Machine

  • Chain Paperboard Feeder 10mm Rotary Slotting Machine
  • Chain Paperboard Feeder 10mm Rotary Slotting Machine
  • Chain Paperboard Feeder 10mm Rotary Slotting Machine
Chain Paperboard Feeder 10mm Rotary Slotting Machine
Product Details:
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMYS-LT-1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New Brand NameBrand NameBrand NameBrand NameBrand Name: SOOME
Color: Customize Material: Steel
Application: Cardboard Slotting And Creasing Machine Type: Rotary Slotting Machine
High Light:

paperboard rotary slotting machine

,

10mm rotary slotting machine

,

rotary creaser slotter machine

Chain Paperboard Feeder Rotary Slotting Machine With Accurate Grinding Gear

1. Summarize



Semi-auto chain feeding type slotting machine adopts electric counter, can control the paper quantity exactly, adjusting 4 slotting knives by manual together to change the slotting depth together, finish the carton height adjustment in one time together. Manual transverse moves of 4 slotting knives separately. Adjust the direction and case height of each blade manually.same as the paper feeding gap.equipped sudden stop system to make sure safely production.



2. Features and Characteristics



1) Slotting knife:width 7mm,alloy material,pass heat treatment,grinding, tooth form slotting cutter.

2) The slotting phase adopt planetary structure, digital adjustment in 360° ( can adjust when run and stop).

3) Manual transverse,make the knife dish line pressing move at the same time,fast and convenient.

4) Synchronous adjustable box high,four knife at the same time adjust the height of the board.

5) Pre-scorer rollers (up and down) out diameter is 110mm,controlled movement manually.



3.Technical Parameters



No.

Item

SMYS-LT-1224
1

Economic speed

40-50pcs/min

2

Max. Feeding size

900mm×1400mm
3

Max. Printing size

900mm×1350mm
4

Suitable paper thickness

2-10mm
5

Inner wallboard width

1400mm
6

Knives outer diameter

Ø480mm

Chain Paperboard Feeder 10mm Rotary Slotting Machine 0
