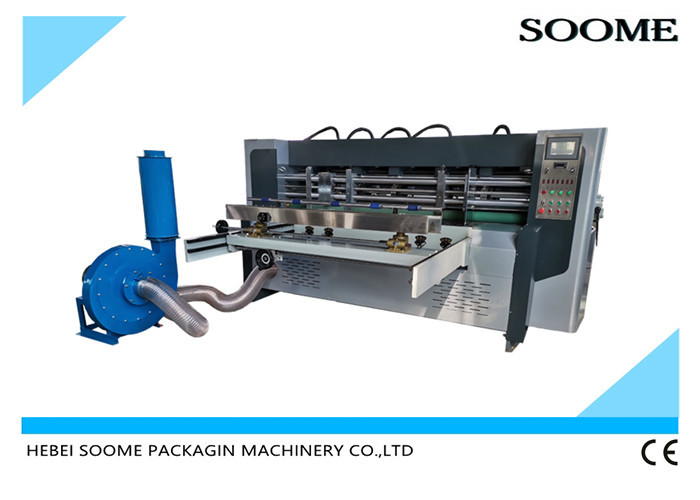

Corrugated Creasing 9kw Thin Blade Slitter Scorer Machine

Corrugated Creasing 9kw Thin Blade Slitter Scorer Machine

  • Corrugated Creasing 9kw Thin Blade Slitter Scorer Machine
  • Corrugated Creasing 9kw Thin Blade Slitter Scorer Machine
  • Corrugated Creasing 9kw Thin Blade Slitter Scorer Machine
Corrugated Creasing 9kw Thin Blade Slitter Scorer Machine
Product Details:
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-ZDSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 25 sets/month
Contact Now
Detailed Product Description
Type: Packaging Line Usage: Corrugated Cardboard
Function: Slitting Creasing Of Cardboard Voltage: 220V/380V/440V
Condition: New Place Of Origin: Hebei, China
Highlight:

9kw Thin Blade Slitter Scorer Machine

,

Creasing Thin Blade Slitter Scorer Machine

,

corrugated cardboard electric creasing machine

Automatic Corrugated Lead Edge Feeding Thin Blade Slitter Scorer Machine





3.Technical Parameters



SPECIFICATION

Model 2000 2200 2500
Max slitting size (mm) 1800 2000 2300
Min slitting size (mm) 120 120 120
Min slitting length (mm) 260 260 260
Blade size (mm) 190*105 190*105 190*105
Machine dimension (mm) 2630*770*1350 2830*770*1350 3130*770*1350
Power (kw) 9kw 11kw 13kw
Paperboard stacker length (mm) 1200(2000) 1200(2000) 1200(2000)
Paperboard stacker height 300 300 300























1.Summarize



It is mainly used in corrugated paperboard production line. As a good production line has high requirements for additional functions and automation of the equipment, it can be used to increase and lower the feed height according to the requirements of the production line, detect and automatically adjust the running speed, correct the position left and right, automatically change orders and other functions.It can be controlled separately or connected to the production line management system.



2.Features and Functions



1)Can set the qty. of paperboard, automatic stop the feeding after finishing.
2)Auto suction paper feeding, assured the safety of workers and decreased the working load.
3)Suitable to a large scale paperboard machining.

4)Three types of blade adjusted methods by manual / electric /automatic for optional .
5)Part: adopt high quality tungsten steel blade, sharp and long work life, slice more tidy, non-pressing and non-burr.

6)Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard to 260mm for small paper.
7)8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
8)Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.









Corrugated Creasing 9kw Thin Blade Slitter Scorer Machine 0
