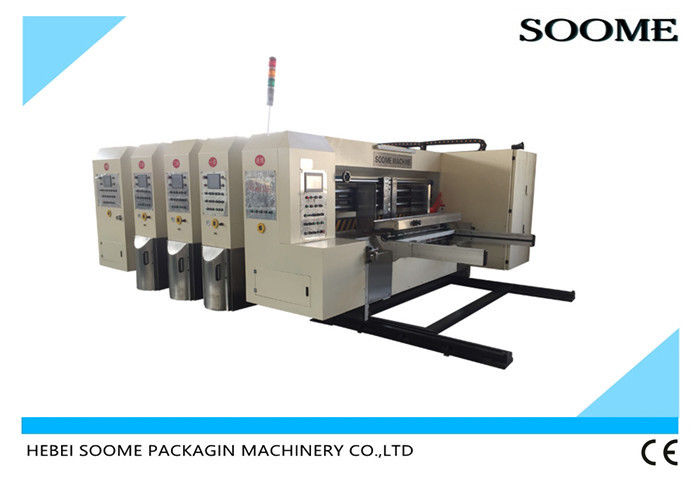

Corrugated Cardboard 3 Colors Flexo Printer Slotter Machine

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMYS-1225
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wrapped with film or wooden case.
Delivery Time 14 days after deposit.
Payment Terms L/C, T/T, MoneyGram
Supply Ability 15 sets per month.
Product Details
Application Printing And Processing Corrugated Paperboard Product Name Automatic Feeding Printing Machine With Slotter
Plate Type Flexo Plate Color Customer's Request
Condition New Voltage 220V/380V/440V
High Light

cardboard flexo printer slotter machine

,

corrugated flexo printer slotter machine

,

3 colors printer slotter machine

Leave a Message
Product Description

Automatic Feeding Corrugated Line Paperboard Flexo Printing Slotting Machine

1.Summarize



The words and images to be printed are first made into a printing plate, mounted on a printing machine, and then the ink is coated manually or by a printing machine on the plate where there are words and images, and then directly or indirectly transferred to the paper or other substrate, so as to reproduce the same printing plate.



2.Features and Characteristics



1. Automatic computerized machine ,easy to operation.
2. Color touch screen, saves 999 groups orders.Automatically order's input, inquiry, delete and zero-clearing.The automatic / manual adjustment of phase, management of the parameters, up and down the plate, auto/semi-auto inking, automatic display of production and speed, and setting of the quantities.
3. All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish. The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.
4. Interval of all the rollers is adjusted by high precise worm box. With three disk handle seat, convenient and swift.
5. Motorized electric numerical adjust the axial and vertical movement of the knife seat and height of the carton.
6. Speed difference compensation system is equipped with Die cutting unit, Axially conjunct moving of the cam type soft roller is 40mm, uniform wear and tear, raise the occupation of the gum cover, save the cost.


3.Technical Parameters



Parameter Unit

SMYS-GZ

420-2600

SMYS-GZ

420-3000

SMYS-GZ

480-2800

SMYS-GZ

480-3200

Inner Width mm 2600 3000 2800 3200
Max.Paper Size mm 1300*2300 1300*2700 1500*2600 1500*3000
Max.Printing Size mm 1250*2200 1250*2600 1500*2400 1500*2800
Interval Feeding Size mm 1400*2300 1400*2700 1650*2600 1650*3000
Max.Speed pcs/min 150 150
Economic Speed pcs/min 0-120 0-100
Topping Precision mm +-0.5 +-0.5
Standard Plate Thickness mm 7.2 7.2
Cardboard Thickness mm 2-11 2-11
Min.Slotting Interval mm 165*165*165*165 165*165*165*165
Max.Slotting Depth mm 320 450
