Corrugated Paperboard Box Folder Gluer Machine Semi Automatic For Carton Box
Type | Gluing Machine | Condition | New |
---|---|---|---|
Brand Name | SOOME | Color | Customized |
Driven Type | Electric | Place Of Origin | Hebei, China |
High Light | folding gluing machine,folder and gluer machine |

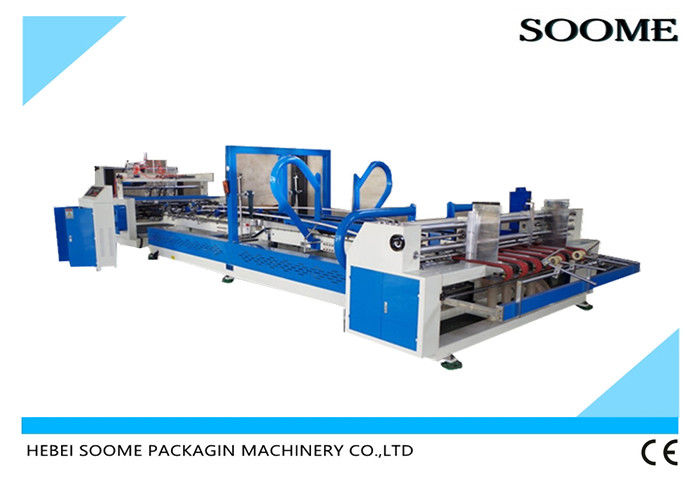

Semi-Automatic Corrugated Paperboard Folder Gluer Machine For Carton Box
1. Summarize
Compared with folding gluing box by manual, our machine can save more labor and nearly half glue at the same time more production cost.It glue right without spilling glue, realized little investment and malfunction and reduced the dependency of labor.
2. Features and Functions
1) Adopt imported paper conveying belt with suction fan, and the automatic stacker assured the smoothly paper feeding.
2) The special machine design make the adjustment, side guide plate, paper feeding blade separated from belt. It is easy to changed the size of box.
3) The carton gluing width is 20~25mm, lower gluing type.
4) The glue box can be moved left and right as per the shape of cartons.
5) The volume of glue can be controlled and much enough, maintenance easily.
6) Adopt stainless steel, will never rust and corrosion resistance from kinds of glue.
7) Adopt imported conveying belt with high friction, keep the synchronous speed with paper feeding unit. The high speed converter can be controlled independently.
8) Product changing via electric buttons by manual, convenient and fast.
3. Technical Parameters
Model | SMZX-QZ-1900 |
---|---|
Max. Paper size (mm) | 900*1900 |
Min. Paper size (mm) | 250*700 |
Speed (m/min) | 0~120 |
Power (kw) | 7.9 |
Dimensions (mm) | 13000*2600*1800 |
Weight (T) | 5.2 |
