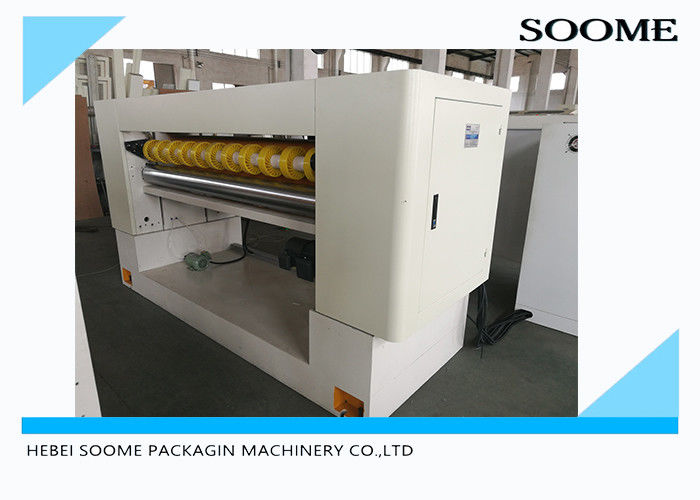

Sheet Board Corrugated Paper Cutting Machine AC Servo Motor Corrugated Box Cutter
Type | Cutting Machine | Voltage | 380V |
---|---|---|---|
Automatic Grade | Automatic | Condition | New |
Weight | 800kg | Driven Type | Electric |
Application | Machinery & Hardware | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
High Light | corrugated sheet cutting machine,sheet board cutting machine |
Sheet Board Corrugated Paper Cutting Machine AC Servo Motor Corrugated Box Cutter
Name of main parts | Brands or place of origin | |
Full AC servo motor | Shanghai futian | 22kw |
Feeding frequency synchronous motors | Hebei hengshui | |
Bearing | HRB | Upper and lower knife shaft bearing adopt japan NSK |
Contactor and relay, middle relay | France Schneider | |
Proximity switches | ||
Flying shear servo control system | KEFENG | 30kw |
Feeding drive | Taiwan dalta | |
HMI | Taiwan weilun or kunlun state | |
Pneumatic Components | Tianao |
Technical parameter
Working width: 1800mm
Max. cutting speed:200m/min
Cutting cardboard:max. 9999mm min. 500mm
Cutting precision:±1mm in stable speed
Cardboard: original paper: <360g/ liner paper<200g/
thickness3-14mm moisture content <10%
min. width warping1000mm <30mm
Comparative moisture content:20%~90% comparative temperature:5℃-50℃
Steam pressure:0.6-0.9MPa
Cutting cardboard blade shaft diameter:upper¢ 224 mm low¢ 228 mm
Guiding cardboard shaft diameter: front upper ¢165mm(sun wheel) front lower¢135mm
Back upper ¢165mm back lower¢135mm
Electricity :voltage 440V frequency 50Hz current 80A
Total power:32.58kw
Dimension:3000mm×1600mm×1500mm(length x width x height)
Characteristics
* Special structure design, high tensile strength wall plate and seat, there are watching window on wall plate two sides, convenient and easy to maintain.
* Transmitting system adopts oil pump auto-cycling lubricating, make sure transmitting precision.
* Adopting high precision, high rigidity whetted gears, bearing high running and durable, make sure blade-edge joggle exactly, cardboard is level off and clean
* high precision shaft, blade carrier design, cutting stably when machine high speed running
* Special changing blade structure, quickly and easily changing blade
* The system is made according to C.E. standard, and has been strictly tested by industry computer. The quality, life, and stability can be guaranteed.
* Driving unit adopts A.C. Servo drive, quickly and exactly acts.
* Special electricity structure design, more saving electricity, can avoid the problems of not stable electricity.
* Adopts special power bring and storage type design, save electric and could overcome electric voltage not steady environment.
* System has self test function, can prevent machine loss because of abnormal usage and false operation
* Computer automatically adjusts cutting speed according to cardboard specifications and production speed, automatically follow cardboard running speed, assure in –phase.
* Computer reserves 999 groups of order, and auto-complete based on the program and preferential condition, the screen display various production message.
* Cutting length: 500~9999mm,cutting precision :±1mm.
* Rotary blade is made in Tainwan
* Shaft bearings are from NSK, Japan, suitable for machine high speed running, durable.
Raw materials and bought-in parts
Wall plates two sides and seat:20# steel Origin: Hebei
Upper lower shaft: 45# steel
Balde:W18crv5Co5(high speed tool steel)
Gear:40Cr whetted, quenched and tempered
Main drive engine(AC. servo)power: 30kw, 1set Origin: China
Transmitting cardboard engine power: 2.2kw 2sets, Origin: China
Oil pump engine power: 0.19kw 2set Origin: China
Computer control system
Bearing: (main) NSK Japan (common) China
Pneumatic parts: Yadeke Taiwan, Tianyuan Shandong
