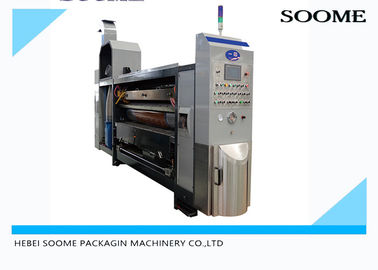

Paper Absorption Flexo Printer Slotter Die Cutter Scrap Blade Ceramic Anliox Roller
| Place of Origin | China |
|---|---|
| Brand Name | Soome |
| Certification | CE |
| Model Number | SM-HD |
| Minimum Order Quantity | 1 set |
| Price | contact |
| Packaging Details | plastic film |
| Delivery Time | 90 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 36 set per year |
Product Details
| Type | Flexographic Printer | After-sales Service Provided | Engineer Service Oveaseas |
|---|---|---|---|
| Voltage | 380V | Automatic Grade | Automatic |
| Warranty | 1 Year | Name | Flexo Ink Corrugated Carton Flexo Printing Machine |
| Application | Corrugated Carton Box | Color | Customer's Request |
| Speed | 280pcs/min | Condition | New |
| Usage | Paper Printer | Product Name | High Quality 380v Flexo Printer Slotter Die Cutter |
| High Light | flexo printer slotter machine,printing slotting die cutting machine |
||
Product Description
Paper Absorption Flexo Printer Slotter Die Cutter Scrap Blade Ceramic Anliox Roller

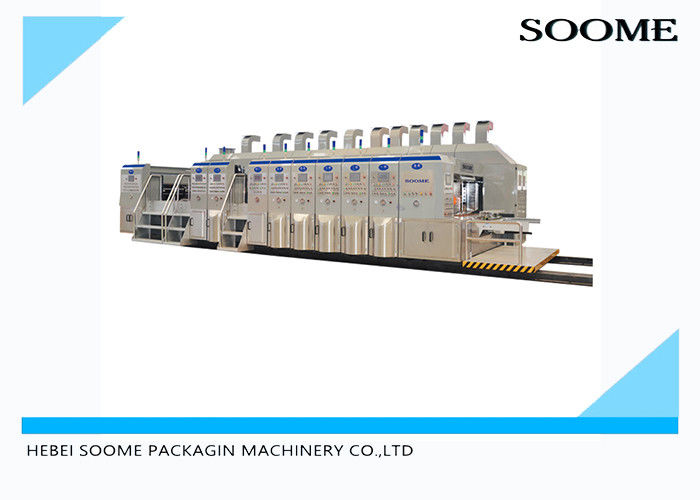

| FULLY AUTOMATIC LEAD FEEDER FLEXO FOUR COLOR PRINTING SLOTTING DIE CUTTING MACHINE DRYER | |
| Max Machine Speed (pcs/min) | 200 |
| Economic Working Speed (pcs/min) | 150-180 |
| Max Feeding Size (mm) | 1600×3600 |
| Max Printing Size (mm) | 1600×3400 |
| Skip-feeding Size (mm) | 1800×3600 |
| Min Feeding Height (mm) | 350(low speed,full printing) |
| Max Slotting Depth (mm) | 380 |
| Standard Plate Thickness (mm) | 7.2 |
| Suitable Cardboard Thickness (mm) | 2 - 11 |
| Main Motor Power (kw) | 30 |
| Total Power (kw) | 100 |
| Overall Dimensions (mm) L*W*H | 15000×4500×1800 |
Technical parameters:
- Design speed: 230pcs/min
- Production speed: 150-200pcs/min
- Continuous paper feeding size: 920x2400mm
- Skip feeding size: 1150x2400mm
- Min. paper feeding size: 300x550 mm
- Max. Printing size: 900x2220 mm
- Paper Thickness: 1.5-11 mm
- Printing roller diameter (without printing plate): ￠321.6mm
- Printing roller outer diameter(incl. printing plate): Ø336mm
- Printing plate thickness (3.94mm + 3.05 mm R-back+ Film): 7.2 mm
- Plate cylinder adjustment: 360°
- Printing plate registration adjustment (horizontal): 15 mm
- Printing anilox roller (Haili brand) : Ø216 mm; 2units: 200LPI; 1unit: 250LPI
- Printing rubber roller outer diameter: Ø208 mm.
- Rotary die lower roller diameter: Ø286 mm
- Rotary die lower roller diameter including die blade: Ø336 mm
- Rotary Anvil (blanket) roll diameter: Ø314.9 mm
- Rotary Anvil (blanket) dimensions: outer Ø331*inner Ø314.9*width Ø250 mm, thickness 8mm
- HMI(monitor) interface on printer, rotary die cutter: 7# touch screen
- Mechanical blanket roller left-right movement should be ±35 mm
- All machine wallboard thickness: 60 mm
- All the gears with precise grinding and material is 20CrMoTi.
- Printing precision: <±0.5mm; Die-cutting precision: <±1.5mm
Main Bought-in Parts (from Good Famous Manufacturers )
1．Main motor
- Main motor adopts frequency conversion motor,Siemens Bedford brand
- Fans adopt frequency motor(Shanghai).
2.Bearings
- imported (Japan) nsk
3.Electrical Parts
1)Units adopt independent control unit, safe and reliable
2)Relay, lights, buttons, contactor, air switch adopt(France)
Schneider etc. good famous brand, to ensure reliable
3)Adjust frequency converter adopt Delta (main motor
frequency conversion adjustment, suction feeding frequency
adjustment)
4)PLC controller adopt Taiwan Delta
5)Rotary encoder adopt the Japan Omron
6)Cylinders,pneumatic components using (Taiwan) Airtac.
7)solenoid valve adopt (Japan)SMC
8)Touch screen adopt (Taiwan) delta.
9)Rubber roller, (Guangdong) Jingyang made
