Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW

  • Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW
  • Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW
  • Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW
  • Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW
  • Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW
Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMZX-BZD-2800
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wrapped With Film
Delivery Time One Month
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Sets/Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Gluing Machine Total Power 4KW
Driven Type Electric Warranty 1 Year
Weight 2.15T Height Of Feeder 1M
Voltage 2200V / 380V /440V Color Customized
High Light

folding and gluing machine

,

folding gluing machine
Leave a Message
Product Description

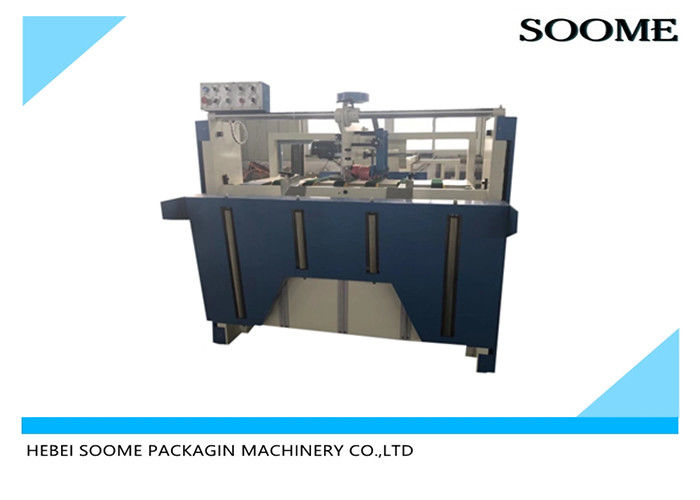

Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW



Features

This machine is suitable for folding and gluing all the kinds of paperboard. Easy to operate, no training is necessary. One minute quick order change. Carton glue Min. size is 260mm. It is the best choice for carton making factory.

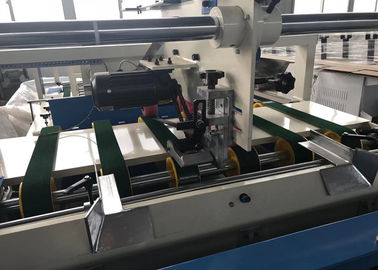

Main structure of machine

1. BZD-2800 type Semi-auto gluer composes of main form and two small conveyers.
2. Main form including form, up and down working table, forepart feeding section, forepart proofread section, middle transportation section, middle press section, side carton delivery section, electric control system.
3. The machine imported famous brand electric spare parts, Siemens electric, OMROPN photoelectric switch, Japan TOKY counter, Taiwan mean well electric power supply. Gluer head adopt alloy material, antacid-base to keeping the gluer head for long life. Main motors adopt Taiwan Chengbond motor.



Model   SMZX-BZD-2800
Max size (L+W)*2 2800mm
Min size (L+W)*2 340mm
Max size(W+H)*2 1500mm
Min size (W+H)*2 260mm
Height of feeder 1000mm
Power 4kw
Machine length 5300mm
Machine weight 2150kg
Machine speed 60m/min



Handle Corrugated Carton Folding Gluing Machine Electric Driven Type 4KW 0
