Multifunctional Flexo Folder Gluer Machine For Corrugated Cardboard Carton Box
Soome machine,established in 1995. Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole solution for corrugated packaging machine.
Facing the fierce competition in corrugated packing field,our company adopt three concepts “mechatronics”“intelligent operation”and “simple usage”.We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy .Our products sold to Italy, Spain, Argentina, India, Pakistan, Germany, Egypt,Vietnam,Kazakhstan,Iran,Turkey ,Russian ,and so on.
Wish we unite in a concerted effort for the beautiful future!
Introduction:

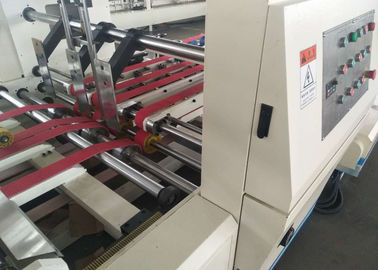

QZD Fully automatic folder gluer, composed of feeding part, folding gluing part and stacking correcting part with counting. PLC digital speed display, computerized adjustment with touch screen, has the simple, convenient, quick and reliable precise control mode, automatic feeding, automatic foling gluing, automatic counting, automatic piling and output, dual converter in front and back, average speed 160 pcs/min, while design speed 220 pcs/min.
Function and features
1. Can finish top fold twists automatically and at the same time, you can finish fluctuation two parts tape stickup, save labor and time.
2. Suitable to a large range of cartons, different sizes changing easy and fast.
3. The complete machine runs stable, easy to operate and maintain.
4. Correct the carton right angle automatically, 180° calibration, can correct the scissors differential and fish tail phenomenon in good effect.
The product structure
1. Control part
Simple touch screen operation, the machine adopts PLC, digital operation, touch screen input data, which can realize non-stop to change data, production speed and so on. The machine is automatic feeding, automatic folding, automatic counting, automatic piling output, economic speed 160 pcs/minutes, design speed 220 pcs/minutes.
1. The feeding part
1) The cardboard height adjustment device adopt high-quality steel, change different sizes of carton height and lenght fast.
2) Suction conveying belt use high-tech material, tension layer seamless joint ring belt, long lifetime and safe.
3) Adopt high-grade electromagnetic clutch and electromagnetic brake system, make for paper department can be the single or continuous operation, effective control of the waste of cardboard specifications adjustment and output for accuracy of cardboard.
4) Feeding part effectively reduce error,greatly improve the stability.
3. Folding gluing part
1) The motor selection, import the brand, stable performance, convenient speed, no noise pollution.
2) Folding part use imported high friction, super wear-resistant materials to make special the seamless joint annular conveyor belt, finish the automatic folding cardboard exactly.
3) Gluing part adopted high quality stainless steel glue wheels, glue averagely, and can save glue.
4) Folding part equipped with single channel creasing correction of folding and six precision pressure device,accurate effectively correct cardboard creasing line, so that the whole carton completed with the most accurate folding.
4. Correction stacking output part
1) Stacking part has the auto counting, stacking and tidying, output functions, can set the output qty as customer need.
2) Automatic correction, stepless speed differential correction,automatic correction of the scissors phenomenon and no-standard carton forming.
5. Fittings choose
1) 380V alternating current, total power 11.5kw, save energy, high efficiency.
2) Imported ring type seamless joint belt from Italy.
3) TR bearings.
4) High quality copper nut, wear resistant, longer lifetime, higher transmission accuracy.
5) Copper sleeve matched with lubrication oil, durable and wear-resistant.
6) Can be controlled by wireless remote controller, adjust sizes easy, fast and convenient.
6. Parameters (Weight about 6.5tons)
Model | QZD-1600 | QZD-2000 | QZD-2400 | QZD-2600 | QZD-2800 |
Max.size (mm) | 800*1600 | 1000*2200 | 1000*2400 | 1000*2600 | 1200*2800 |
Min.size (mm) | 460*170 | 300*500 | 300*700 | 350*800 | 300*600 |
Installation area (mm) | 2000*13500 | 2600*13500 | 2800*15500 | 3100*15500 | 3200*15500 |
Total power(kw) | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
7. QZD Auto folder gluer parts
NO. | The name of the | brand | origin |
1. | Suction belt |
Nitta
|
Japan |
2. | Feeding belt | aymara | Shanghai |
3. | Bearing | TR | dongguan |
4. | Frequency converter motor | Chenbang | Taiwan |
5. | High-pressure blower | Chenbang | Taiwan |
6. | High-pressure blower | Taiwan | |
7. | Nylon wheel |
Japan |
|
8. | Chain |
Chaohe |
Japan |
9. | Sprocket |
hangzhou |
|
10. | Cylinder |
Zhejiang |
|
11. | Copper wire sets |
hangzhou |
|
12. | PLC | Delta | Taiwan |
13. | Inverter | Delta | Taiwan |
14. | Touch screen | MCGS | BeiJing |
15. | Electromagnetic clutch | Shanghai | |
16. | Electrical appliances | CHINT | Shanghai |
17. | Switch/ buttons/ light | Schneider | France |
8. Standard accessories
NO. | Item | Specs. | Remark | |
1 | Tool box | 1PC | ||
2 | Inner Hexagon | 1.5,2,2.5,3,4,5,6,8,10 | 1SET | |
3 | Fork spanner | 12-14 | 1PC | |
4 | Fork spanner | 17-19 | 1PC | |
5 | Adjustable wrench | 12 | 1PC | |
6 | Screw driver | +,- | 1PC/TYPE | |
7 | Pressure pulley board | 10PCS | ||
8 | Pressure pulley | 10PCS | ||
9 | Switch | 10PCS | ||
10 | Indicator light | 2PCS | ||
11 | Travel switch | 2PCS | ||
12 | Polyurethane rubber lining | 6PCS | ||
13 | Inner six-party screw | M6*16 | 10PCS | |
14 | Flat mat | Φ6 | 20PCS | |
15 | Spring washers | Φ6 | 20PCS | |
16 | Nut | M6 | 20PCS |
