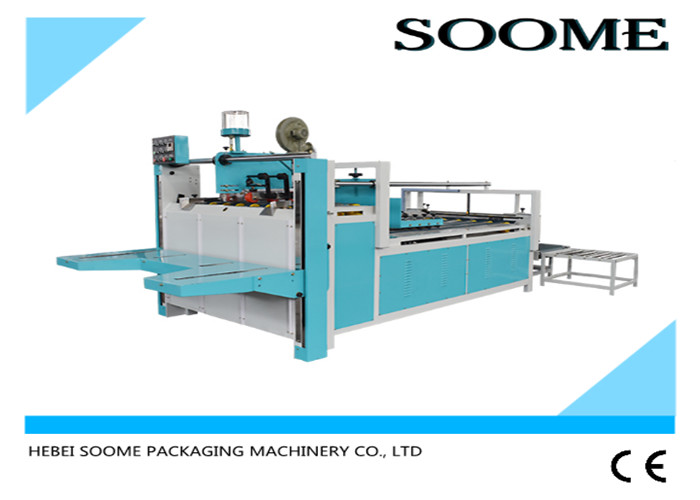

Steel Electric Carton Folding And Gluing Machine 4KW Power With Servo Motor

Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Gluing Machine | Total Power | 4KW |
---|---|---|---|
Driven Type | Electric | Warranty | 1 Year |
Weight | 2.15T | Height Of Feeder | 1M |
Material | Steel | Usage | For Paper Gluing |
High Light | folding gluing machine,folder and gluer machine |
Steel Electric Carton Folding And Gluing Machine 4KW Power With Servo Motor
Summarize
This machine composes of main frame and two small conveyer frame. Main component: frame, lift and down working table. Forepart feeding section, forepart proofread section, middle transportation section,middle pressing section, finished carton side-delivery section, electric cintrol system. Supply gluer head adopt special alloy material, anti-acidity and anti-alkalescence for keeping a long life of the gluer head.
Detail
1. Imported dual servo motors, high precision, decreased the mechanical driving parts and malfunction.
2. Touch screen control the parameters (nails distance, nails qty/type, back baffles), changing fast and convenient.
3. Back electrical baffle adopt stepper motor, accurate and fast.
4. The complete stitching head adopts special steel with precise processing.
5. Carton sizes and nails distance changing time need 1 minute, save more time.
6. Can stitch intensive nails, single nail, double rows nail, finish in one time.
7. Front paper feeding part is automatic counting, settled with photoelectric sensor, can lift up automatically when feeding paper.
8. Last section has automatic counting function, finished cartons can be piled as per the pre-set qty (1~99) and convey out for easy packing.
9. Will warn automatically when the brass wires finished.
10. Max. speed:600 nails/min.
technical parameters /model
|
SMZX-BZD-2800
|
max size (length+width)x2
|
2800mm
|
min size (length+width)x2
|
340mm
|
max size (high+width)x2
|
1515mm
|
min size (high+width)x2
|
260mm
|
high of feeding
|
1000mm
|
working speed
|
60pcs/min
|
motor power
|
4kw
|
machine weight
|
2150kg
|
machine over size
|
5300x2200x1800mm
|
