PLC Controlled Corrugated Cardboard Making Machine Steel Material 2.15T Weight

Basic Information
Place of Origin: Made In China
Brand Name: SOOME
Certification: CE
Model Number: SMZX-QZD-2600
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped With Film
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets/Month
Detail Information
Type: Gluing Machine Total Power: 3KW
Driven Type: Electric Warranty: 1 Year
Weight: 2.15T Height Of Feeder: 1M
Material: Steel Speed: 150PCS / Min
High Light:

folding and gluing machine

,

folding gluing machine


Product Description

PLC Controlled Corrugated Cardboard Making Machine Steel Material 2.15T Weight



Summarize

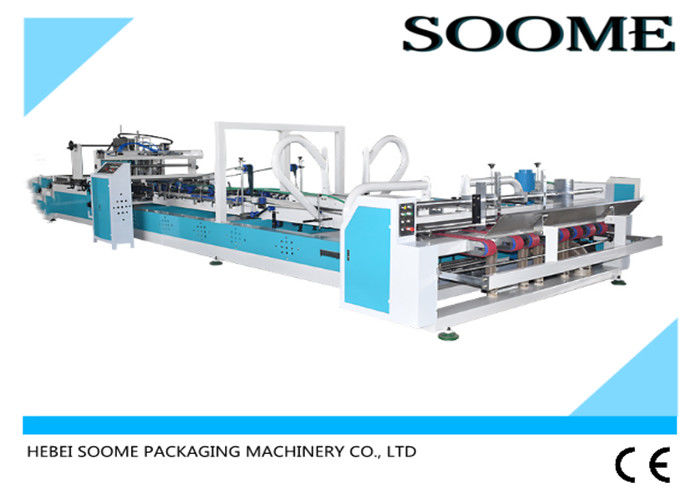

SMZX-QZD-2600 automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section, counter and stacker section. Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable.Average speed is 150sheets/min. Energy conservation and high speed, saving labor cost.



Product Description



Feeding Section

1. Vacuum suction feeding to feed warping paperboard easily
2. Quality electromagnetic clutch and brake adpoted, feeding section controled independent, operation easily
3. Scorer wheel adjustable, suit for 2-8mm thick paperboard
4. Second creasing struction can impress again the paperboard which was not creased well



Guling and Folding section

1. Simpless structure and high reliability, glue quantity adjustable, cleaning easily
2. Stainless steel glue wheel adopted,long life and saving glue cost
3. Imported quality rubber belt adopted,automatic folding
4. With paperboard rectify device and creasing rectify device



Feature



model
 SMZX-QZD-2400
SMZX-QZD-2600
SMZX-QZD-2800
max cardboard size(mm)
2200X900
2400x1200
2600x1200
min cardboard size(mm)
150x800
200x800
200x800
oversize of machine(mm)
12800x2850x2250
12800x3050x2250
12800x3250x2250
power(KW)
10
11
12
speed(pcs/min)
150
150
150
