Semi Auto Folder Gluer Machine Electric Driven Type Paperboard Height Adjustment
Type | Gluing Machine | Total Power | 4KW |
---|---|---|---|
Driven Type | Electric | Warranty | 1 Year |
Weight | 2.15T | Height Of Feeder | 1M |
Voltage | 2200V / 380V /440V | Color | Customized |
High Light | folding gluing machine,folder and gluer machine |

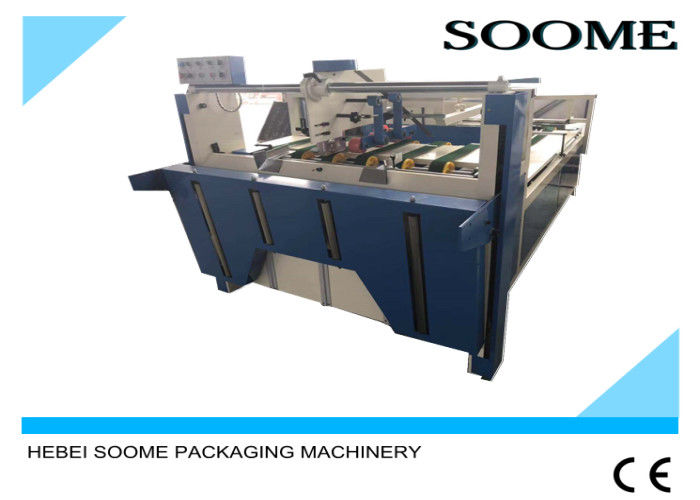

Semi Auto Folder Gluer Machine Electric Driven Type Paperboard Height Adjustment
Features
This machine is suitable for folding and gluing all the kinds of paperboard. Easy to operate, no training is necessary. One minute quick order change. Carton glue Min. size is 260mm. It is the best choice for carton making factory.
Main structure of machine
1. BZD-2800 type Semi-auto gluer composes of main form and two small conveyers.
2. Main form including form, up and down working table, forepart feeding section, forepart proofread section, middle transportation section, middle press section, side carton delivery section, electric control system.
3. The machine imported famous brand electric spare parts, Siemens electric, OMROPN photoelectric switch, Japan TOKY counter, Taiwan mean well electric power supply. Gluer head adopt alloy material, antacid-base to keeping the gluer head for long life. Main motors adopt Taiwan Chengbond motor.
Model | SMZX-BZD-2800 |
Max size (L+W)*2 | 2800mm |
Min size (L+W)*2 | 340mm |
Max size(W+H)*2 | 1500mm |
Min size (W+H)*2 | 260mm |
Height of feeder | 1000mm |
Power | 4kw |
Machine length | 5300mm |
Machine weight | 2150kg |
Machine speed | 60m/min |
