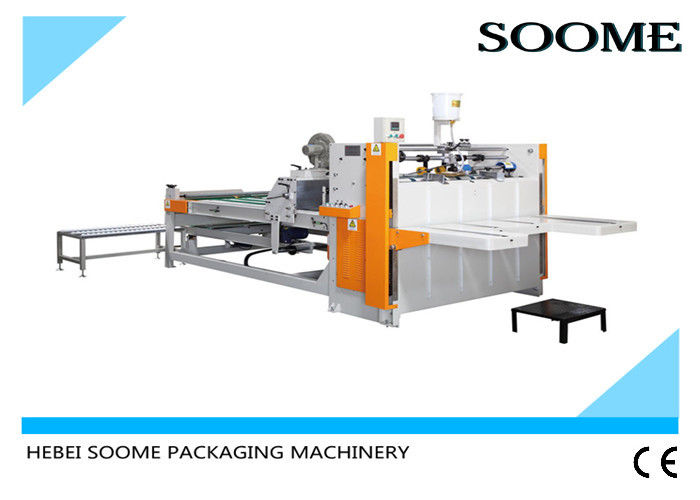

Box Folder Gluer Machine Manual Operation 2600mm Packaging Alkali Resistant

Place of Origin Cangzhou, China
Brand Name SOOME
Certification CE
Model Number SMZX-BZD-2600
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Wrapped with film or in wooden case
Delivery Time 30-35days after deposit
Payment Terms T/T, L/C, Western Union
Supply Ability 30sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Corrugated Cardboard Folding Gluing Into Cartons Feeding Pile Height 1000mm
Max. Sheet Length 2460mm Min. Sheet Length 900mm
Max. Sheet Width 1400mm Min. Sheet Width 280mm
Voltage 220 / 380 / 440V As Per Different Countries Power 2.2kw
Machine Speed 60m/min. Electrics Brand Schneider / Meanwell / Omron Brand
High Light

folding gluing machine

,

folder and gluer machine

Leave a Message
Product Description

Box Folder Gluer Machine Manual Operation 2600mm Packaging Alkali Resistant



I. General introduction



Semi automatic folder gluer is a kind of folder gluer machine. It is manually feeding of sheets one by one, before feeding, need to fold it by manual, then machine offer glue and press to paste well, stacking into piles and conveying out for packing.



This machine can save labor cost and time for gluing than manual glue box. But much lower speed than automatic folder gluer. It is economical type machine for customer choosing.



II. Usage and Features



This machine is suitable to various kinds of corrugated cartons folding gluing. Easy to operate and learn, no need experienced workers. Order changing fast within one minute.



The min. width and height of finished box can reach to 260mm which is a good choice for carton manufacturer.



III. Main structure



Composed of main machine frame, 2 small conveyor frames.



Main machine frame



Machine frame, ascend and descend worktable, front part convey equipment, front part correction equipment, middle part convey equipment, middle part press together equipment, finished product side output equipment, electrical controlling device.



Electric elements and material



Adopted imported electrics, Simens electric appliance, Omron optoelectronic switch, TOKY counter, Taiwan MEANWELL switch power supply.



Alloy gluer head is acid and alkali resistant, long working life. The motors all adopted Taiwan Shengbang motor except air blower and lifting motor.



IV. Technical parameters



Model SMZX-BZD-2600 SMZX-BZD-2800
Max. sheet length 2460mm 2650mm
Min. sheet length 900mm 900mm
Max. sheet width 1400mm 1400mm
Min. sheet width 280mm 280mm
Motor power 2.2kw 2.2kw
Machine speed 60m/min 60m/min
Machine weight 2T 2.3T
