Custom Corrugated Carton Folder Gluer , Semi Auto Folding And Gluing Machine

Basic Information
Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: SMZX-BZD-2000
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 30-35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30sets per month
Detail Information
Application: Corrugated Cardboard Folding Gluing Into Cartons Feeding Pile Height: 1000mm
Max. Working Width: 2000mm Or As Customer Need Color: Customized
Electrics Brand: Schneider / Meanwell / Omron Brand Warranty: One Year
Voltage: 220 / 380 / 440V As Per Different Countries Power: 2.2kw
Machine Speed: 60m/min. Machine Weight: 1800KGS
High Light:

folding gluing machine

,

folder and gluer machine


Product Description

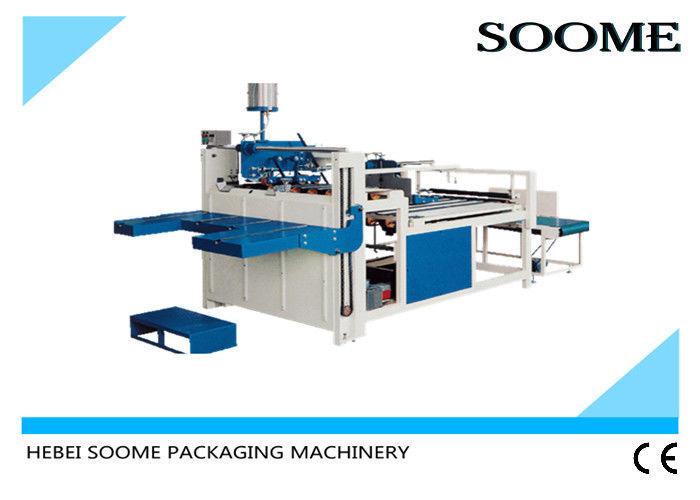

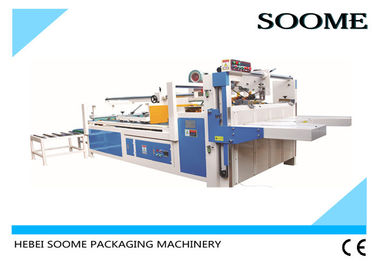

Custom Corrugated Carton Folder Gluer , Semi Auto Folding And Gluing Machine



I. General introduction



Semi automatic folder gluer is a kind of folder gluer machine. It is manually feeding of sheets one by one, before feeding, need to fold it by manual, then machine offer glue and press to paste well, stacking into piles and conveying out for packing.



This machine can save labor cost and time for gluing than manual glue box. But much lower speed than automatic folder gluer. It is economical type machine for customer choosing.



II. Usage and Features



This machine is suitable to various kinds of corrugated cartons folding gluing. Easy to operate and learn, no need experienced workers. Order changing fast within one minute.



The min. width and height of finished box can reach to 260mm which is a good choice for carton manufacturer.



III. Main structure



Composed of main machine frame, 2 small conveyor frames.



Main machine frame



Machine frame, ascend and descend worktable, front part convey equipment, front part correction equipment, middle part convey equipment, middle part press together equipment, finished product side output equipment, electrical controlling device.



Electric elements and material



Adopted imported electrics, Simens electric appliance, Omron optoelectronic switch, TOKY counter, Taiwan MEANWELL switch power supply.



Alloy gluer head is acid and alkali resistant, long working life. The motors all adopted Taiwan Shengbang motor except air blower and lifting motor.



IV. Technical parameters



SMZX-BZD-2000
Max. Size (L+W) x 2 2000mm
Min. Size (L+W) x 2 340mm
Max. Size (W+H) x 2 1515mm
Min. Size (W+H) x 2 260mm
Feeding pile height 1000mm
Motor power 2.2kw
Machine speed 60m/min



Custom Corrugated Carton Folder Gluer , Semi Auto Folding And Gluing Machine 0Custom Corrugated Carton Folder Gluer , Semi Auto Folding And Gluing Machine 1
