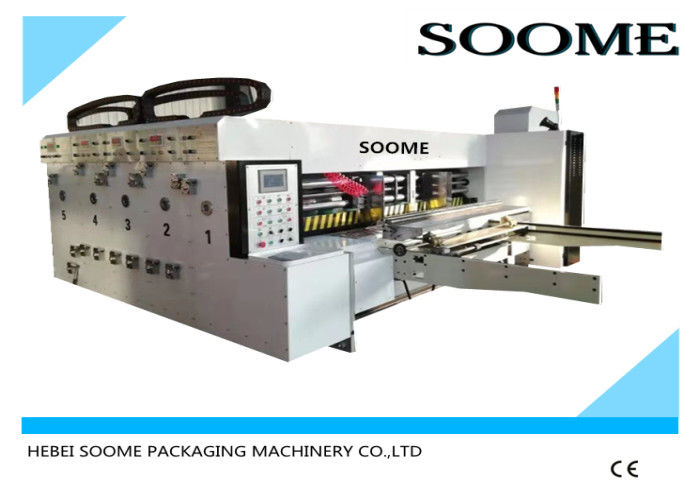

Electric Flexo Printer Slotter Machine Rotary Die Cutting Machine For Corrugated


I. Feeding part


Items Instructions
  • Machine combine and separation

1) electric control machines with on-off alarm, continued between rang the bell warning, ensure that homework personnel security.

2) transmission shaft with friction type clutch, avoid mistake and damage the machine.

3) pneumatic type interlocking device.

4) host motor startup protection device.

  • Lead edge send paper system

1) suction feeding, the blower 7.5 KW, can according to bend to ensure smooth feeding cardboard. (valve adjust air volume)

2) side baffle, pushing paper, back block box position adjusts by electric (digital control), baffle clearance before manual adjustment.

3) Skip feeding device. (according request, you can choose to delivery paper continuous or skip)

4) Counter for supplying paper, setting and displaying the production quantity.

5) Motorized and PLC control of feeder

  • Dust removal system
Air suction device on aspiration, draught absorption with brush, large cardboard on the printing of impurity clear, improve printing quality.
  • Send paper roller

1) external diameter Φ 85 mm.

2) solid steel, parcel wear-resisting rubber, and make balance correction.

3) under feeding roller is with embossing hard chrome plating.

4) Feeding paper roller gap dial manual adjustment, adjusting range 0 ~ 12 mm.

  • Auto-retn to zero device

1) send paper department, printing department, slotting of automatic electric zero.

2) general carton using automatic zero setting, make two pieces can adjust to the correct position, reduce the waste paper.


II. printing part


Item Instruction
  • Printing roller


1) external diameter ¢393 mm( including plate is 405mm).

2) steel pipe surface grinding, hard chromium plating.

3) make balance correction and keep operation steadily.

4) ratchet fixed roll version axle.

5) Hung Groove on each printing drum, suitable for 10 mm hang bar.

6) the print plate loading and unloading, the pedal switch electric control and reversing.

2. Printing pressure roller

1) Steel pipe surface grinding with hard chrome

2) do balance correction and smooth operation.

3) printing pressure roller clearance dial manual adjustment, adjusting range 0--12 mm.

3. feeding roller upper and down

1) the top roller: external diameter ¢85 mm for solid steel, match three to deliver the paper ring.

2) the next roller: external diameter ¢155 mm for solid steel, the surface grinding, hard chromium plating.

3) to deliver the paper roller clearance dial manual adjustment, adjusting range 0 ~ 12 mm.

4. anilox roller

1) external diameter ¢215 mm. Steel pipe surface grinding, the suppression of anilox. Hard chromium plating.

2) Make balance correction and smooth operation.

3) the mesh number is 200-250 mesh for your choice.

4) cooperate with paper feeding system pneumatic type automatic lifting devices. (when feeding paper, anilox roll down to connect with printing plate, when stopped, please separate anilox roller and printing plate).

5) anilox roll with sphenoid clutch, ink, wash ink well when convenient and quick.

6) One unit is ceramic roll and doctor blade

5. Rubber roller

1) external diameter ¢190 mm.

2) steel tube surface package wear-resisting rubber, and do balance correction.

3) rubber high special grinding, the ink effect is good.

6. Phase adjustment

1) Phase Adjustment with planetary gear structure, the phase can be adjusted correctly 360 degree.

2) Electricity phase adjustment, digital show .and memory function, when stopped to clean the slab rubber, and when start again, it will be restored data as original set before stop.

3) Electric digital adjusts the horizontal position, and the distance can adjust 14 mm.

4) In the printing process, will automatic reset system after cleaning plate.

7. Ink system

1) pneumatic type diaphragm pumps, stable for ink, operate and maintain simple.

2) Ink filters, filtering impurities.

3) plastic ink tank.

8. Printing phase locked system

1) cylinder brake institutions.

2) when the machine or adjusting the phase separation and the brake institutions limit the rotation, maintain the original position gear up.


III. Die cutting part:


Item Instruction
1. Die cutting upper roller

1) the diameter of roller is medium 378 mm, surface grinding, plating hard burger, move smoothly, including pads in the 398 mm. (Taiwan super 10 mm thick rubber resistance)

2) has speed limit compensation device.

3) rubber roller to move transversely 40 mm, prolong the service life of the rubber.

  • automatic repair device, improve pads utilization rate, can repair the three to four times.
2. Die cutting down roller

1) the diameter of roller is medium 360 mm, surface grinding, plating hard-chrome.

2) equipped with lift roller, no cardboard, mould roller to be automatic drop, reduce wear rubber roller.

3. Phase adjust system

1) the planet type gear structure.

2) the phase PLC and LCD control and electric digital 360 ° adjustment. (operation, stop all can adjust)


IV. Main technology parameter


Model SMYS-QY-2000 SMYS-QY-2200 SMYS-QY-2600 SMYS-QY-2800 SMYS-QY-3000
Inboard width (mm) 2000 2200 2600 2800 3000
Max. speed (pcs/min) 120 120 120 120 120
Max. paper size (mm) 910x1800 910x2000 1270x2400 1270x2600 1270x2800
Min. paper size (mm) 280x600 280x600 350x700 350x700 350x700
Max.printing area (mm2) 840x1640 840x1840 1200x2200 1200x2400 1200x2600
Printing precision (mm) ±0.75 ±0.75 ±0.75 ±0.75 ±0.75
Printing plank thickness (mm) 7.2 7.2 7.2 7.2 7.2
Paperboard thickness (mm) 3~11 3~11 3~11 3~11 3~11
Min. grooving space (mm) 190x50x190x50 190x50x190x50 190x50x190x50 190x50x190x50 190x50x190x50
Max. slot depth (mm) 210 210 300 300 300
Total power (kw) 20 20 22 22 22.5
Dimensions (mm) 6500x3230x2000 6500x3430x2000 7500x4000x2400 7500x4500x2400 7500x5000x2400
Weight (T) 16 18 19 22 25
