Servo Type Corrugated Carton Flexo Printing Machine Die Cutting Packing

Place of Origin Made In China
Brand Name SOOME
Certification CE Certificate
Model Number SMYS-GS-1226
Minimum Order Quantity 1
Price Negotiation
Packaging Details Wrapped with film
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 Sets / Month
Product Details
Condition New Funcation Carton Box Making
Warranty 1 Year Voltage 220V / 380V / 440V
Automatic Grade Fully Automatic Certification CE Certificate
High Light

flexo printer slotter machine


printing slotting die cutting machine

Leave a Message
Product Description

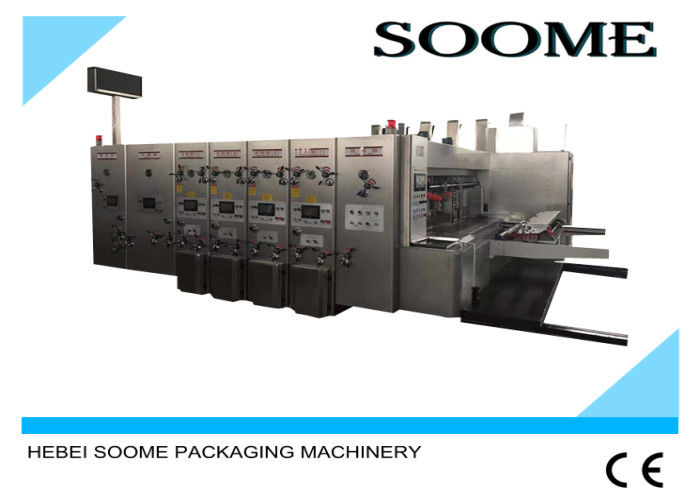

Servo Type Corrugated Carton Flexo Printing Machine Die Cutting Packing




The machine for printing words and images. Modern presses are usually made up of plates, ink, embossing, and paper feeding (including folding). The principle of it is to make the printed text and image printed on the printing press, and then apply the ink to the printing plate with words and images, and then directly or indirectly to the paper or other printed materials (such as textiles, metal plates, plastic, leather, wood, glass, and ceramics). In order to reproduce the same print as the printing plate. The invention and development of printing machines play an important role in the transmission of human civilization and culture.


Main Functions


1. Remote after service could be realized;

2. Touch screen and electric control dual system

3. All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62

4. CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision

5. Functions of intelligent zero returning and memory reset 9999 order memory

6. The transmission system adopts two oil pumps circulating lubrication

7. With new NC Adjusting System for die cutter

8. Slotter with Intelligent photoelectric

9. E flute type cardboard could be used for printing carton;

10.Suitable for small and middl-big size carton and many order change

11.Better machine better carton, so as to Better business.

12.Carton box printing machine and corrugated box making line machine price are best and high quality.


Feeding Unit

1. Servo control Lead edge feeder--flexo printing machine
2. Servo motor-quick react, precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style
3. Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel
4. Pressure-free stretching feeding mechanism is the option.


Printing Unit

1. Box machine forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface, Dynamic and static balancing make steadily running, Hanging forme, make installation easy and quick, Forme changing both foot switch, and/or electric control (forward / backward run)
2. Planetary gear phasing structure.


Slotting Machine Unit

1. Pre-scoring wheel: Pre-scored paperboard will not crush
2. Transverse movement of scoring wheel, doctor wheel and slotting head controlled by motorized button control, lx308easy and quick
3. 7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth
4. Aluminium hand hole punch device.


Die Cutting Unit

1. New CNC difference adjusting system for rotary die cutting,
2. Adjusting the error and difference of die-cutter's Cardboard,
3. Easy operation
4. Anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface. Dynamic balancing correction enhances running stability.


Specification 1800/2000 *800 1800/2200 *1000 2500*1200/1400/1600 2800*1200/1400/1600 3200*1600
Max speed (pcs/min) 280 240 200/170/150 200/170/150 150
Max feeding size(mm) 1800/2000*770 1800/2200*970 2500*1170/1370/1570 2800*1170/1370/1570 3200*1570
Min feeding size (mm) 650*250 650*270 650*330/350/400 650*330/350/400 650*400
Skip feeding size(mm) 1800/2000*1000 1800/2200*1200 2500*1400/1600/1800 2800*1400/1600/1800 3200*1800
Feeding Depth(mm) 2~10 2~10 2~12 2~12 2~12
Max printing size (mm) 1750/1950*720 1750/2150*920 2450*1120/1320/1520 2750*1120/1320/1520 3150*1520
Print plate depth (mm) 7.2 7.2 7.2 7.2 7.2

Min slotter interval



Positive cut

120*120*120*120 120*120*120*120 140*140*140*140 140*140*140*140 140*140*140*140

Min slotter interval



Reverse cut

200*80*200*80 200*80*200*80 240*80*240*80 240*80*240*80 240*80*240*80
Max die cutter size (mm) 1700/1900*720 1700/2100*920 2400*1150/1320/1520 2700*1120/1320/1520 3100*1520
