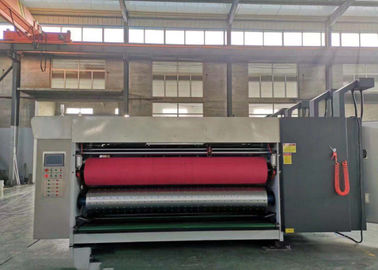

Full Automatic Flexo Printing Machine For Corrugated Carton CE Certificate

Place of Origin Made In China
Brand Name SOOME
Certification CE Certificate
Model Number SMYS-GS-1226
Minimum Order Quantity 1
Price Negotiation
Packaging Details Wrapped with film
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 Sets / Month
Product Details
Condition New Funcation Carton Box Making
Material Steel Voltage 220V / 380V / 440V
Automatic Grade Automatic Certification CE Certificate
High Light

flexo printer slotter machine


printing slotting die cutting machine

Leave a Message
Product Description

Full Automatic Flexo Printing Machine For Corrugated Carton CE Certificate




The machine for printing words and images. Modern presses are usually made up of plates, ink, embossing, and paper feeding (including folding). The principle of it is to make the printed text and image printed on the printing press, and then apply the ink to the printing plate with words and images, and then directly or indirectly to the paper or other printed materials (such as textiles, metal plates, plastic, leather, wood, glass, and ceramics). In order to reproduce the same print as the printing plate. The invention and development of printing machines play an important role in the transmission of human civilization and culture.




1. The machine adopts advanced negative pressure suction feeding method, automatic feeding cardboard, the wind volume can be adjusted, ensuring the smooth feeding of the uneven cardboard.

2. Inks are not easily contaminated with upper printing system.

3. Be able to complete slitting, creasing, slotting and angle cutting at the same time.

4. Touch screen PLC controlling includes automatic counting, speed showing, automatic plate lifting and falling, phase adjusting etc.

5. Automatically remember the position of the plate roller after we clean the printing plate.

6. Main machine starting protection function: the machine can not start up before the main lock opening to avoid mistake operating.

7. Controlling electric components adopt famous brand CHINT products to ensure the performance.

8. Main power source adopts frequency conversion drive with good energy conservation.

9. The main transmission gear is made of high performance alloy steel which was ground through heat treatment(it can reach six level precision), connecting with shaft applying high precision coupling.

10. Main motor and fan motor is frequency conversion control.

11. Operating station and side shield is split design to facilitate the internal maintenance of the gear box.

12. Emergency stop protection: A stop button to ensure the safety.

13. Thickness of wallboard is 50mm, to ensure the stability, produced by large processing center, adopts high quality casting steel HT250.



Main Parameters


NO. Terms Unit Model
1 Inner width mm 2800
2 Max.Speed Pcs/min. 150
3 Economic Speed Pcs/min. 120
4 Max.Feeding Size mm 1200×2600
5 Max.Printing Size mm 1200×2400
6 Min.Feeding Size mm 350×700
7 Total Power kw 12
8 Suitable Thickness of Cardboard mm 2-11
9 Slotting Width mm




Main Outsource Parts


NO. Name Place of Origin
1 Bearing HARBIN
2 Electrical Parts CHINT
3 Frequency Converter DELIXI
4 Diaphragm Pump Fujian FUDING
5 Anilox Roller Dalian JUNFENG
6 Rubber Roller Hebei JIZHOU
7 Gear Pump Jiangsu TAIXING
8 Ink Uniforming Motor Taiwan T.S.T
9 Pneumatic Components Zhejiang LEQING
10 Keyless Connector Shanghai
11 High Pressure Centrifugal Fan Hebei
