|Type:||Semi-auto Flexo Printer||Suitable Sheet Thickness:||1.5-11 Mm|
|Wallboard Thickness:||50MM||Colors:||2/3/4/5 Colors|
|Warranty:||One Year||Voltage:||220 / 380 / 440V|
flexo printer slotter machine,
printing slotting die cutting machine

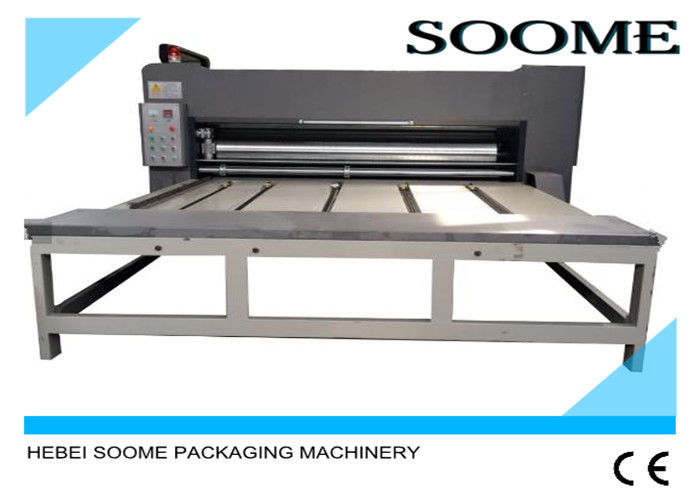

Semi Auto Flexo Printer Slotter Die Cutter Flexo 2 Color Flexo Printing Machine
|CHAIN FEED 4 COLORS PRINTER SLOTTER DIE CUTTER MACHINE|
|CHAIN FEEDER||1 UNIT|
|DIE CUTTER||1 UNIT|
1. The machine composed with printer, slotter parts, can process 1-10mm cardboard printing creasing slotting etc. procedures.
2. Wall board material is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing, center distance of holes can reach ±0.01mm.
3. Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears.
4. Adopt the planetary gears phase for the printer slotter driving structure, precise and durable. Phase adjustment adopt Taiwan motor and high quality sensor control, precision is ±0.1mm, exact and reliable.
5. All bearings use HRB brand.
6. Adopt electrical separation, pneumatic locking, pneumatic edition lifting, electric ink distribution, can realize the ink continuous supplying when stop the machine, avoid the ink drying and fading phenomenon when machine stop will affect the printing effect.
7. Ink guiding system adopt high precision anilox roller with independent motor for ink distribution, high quality diaphragm pump supply ink, can adjust the ink volume randomly, improved the ink supplying more average.
8. Adopt electrical counter, can control the paper qty exactly, match with warning alarm, can warn workers to keep safe when open or adjust the machine.
Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Patent type feeding width automatic adjustment device and printing locking device with screw.With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.
