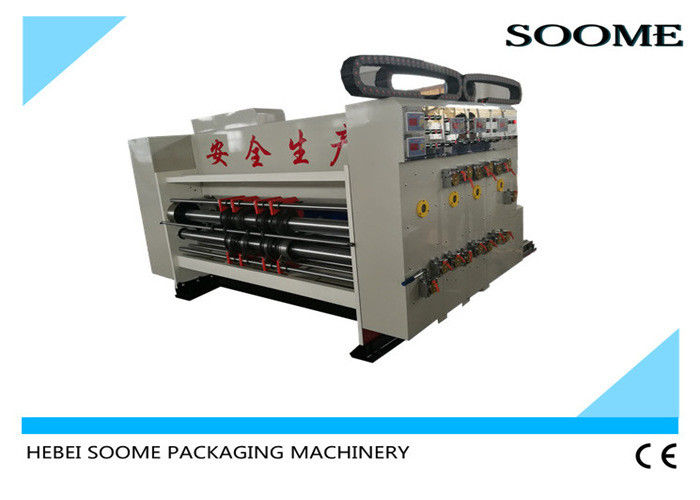

Small Size Flexo Printer Slotter Die Cutter For Mini Box / Express Cartons

Place of Origin Cangzhou, China
Brand Name SOOME
Certification CE
Model Number SMYS-TB-2000
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Wrapped with film or in wooden case
Delivery Time 25-40days after deposit
Payment Terms T/T, L/C, Western Union
Supply Ability 30sets per month
Product Details
Application For Making Small Corrugated Cartons / Express Box Max. Speed 180pcs/min.
Suitable Sheet Thickness 1.5-11 Mm Printing Plate Thickness 7.2 Mm
Precision ±0.5 Mm Feeding Type Automatic Lead Edge Feeder
Electrics Brand CHINT / DELTA / SCHNEIDER Or Customized Color Customized
Warranty One Year Voltage 220 / 380 / 440V
High Light

flexo printer slotter machine


printing slotting die cutting machine

Leave a Message
Product Description

Small Size Flexo Printer Slotter Die Cutter For Mini Box / Express Cartons


I. General introduction


1. Flexo water-based ink printer slotter machine for corrugated cartons printing slotting diecutting.


2. It has big type for big cartons printing and have small type specially for express boxes and mini boxes. If increase rotary diecutter, can also make pizza boxes and any special shape boxes for different usage and fields.


3. Can choose different printing unit as customer need and working condition.


4. Machine is more suitable and competitive than the big flexo. Lower cost. Since it's speed not lower than the big machine, so production capatity is similar as the big machine.


II. Main feature


1. The machine is consist of automatic paper feeder ,printer and slotter, can finish the 3ply / 5ply paper printing and slotting procedures in once time.

2. This machine wallboard and ground rack adopt 30mm thickness cast iron, improved the machine stability.

3. Adopt 40# steel gear,fine milling, all gears with precise grinding , spray lubrication, adjusted by gear crosshead shoe, gapless running .

4. Main motor adopt 4kw frequency motor, drought fun 4.0kw, ink distribution motor.

5. The lead edge automatic feeder adopt light pressure auto feeder, will not damage paper flute, keep flute, smooth feeding and good printing effect.

6. The suitable paper thickness: 1.5~12mm. Can process A/B/C/E flute corrugated paperboard.

7. Main configuration: Electrical phase adjustment, electrical units separate and combine, penumatic locking, pneumatic lifting up and down of printing plate, spray lubrication, slotter unit manual transverse moving of slotting knives (can choose electrical transverse adjustment), electrical carton height adjustment.

8. Standard: CHINT electrics, DELIXI motor ( option: Schneider or Siemens electrics ).


III. Main parameters


Items Parameters
Max. paper size 700x1800mm
Max. printing size 700x1700mm
Min. paper size 170x440mm
Min. Box size 130x80x70mm
Design speed 180pcs/min.
Max. Slotting size 300mm
Min. Slotting size 170mm
Anilox roller mesh

220 LPI (or as customer need)
