| Place of Origin: | China Hebei Dongguang |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMYS-TB |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden or plastic * 20”container |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 set/month |
| Printing Color: | 1/2/4/5 | Speed: | 60-120pcs/min |
|---|---|---|---|
| Usage: | Making Small Carton Box | Feature: | Save Land Area |
| Warranty: | 12 Months | Port: | Tianjin Xingang |
| High Light: | flexo printer slotter machine,printing slotting die cutting machine |
||

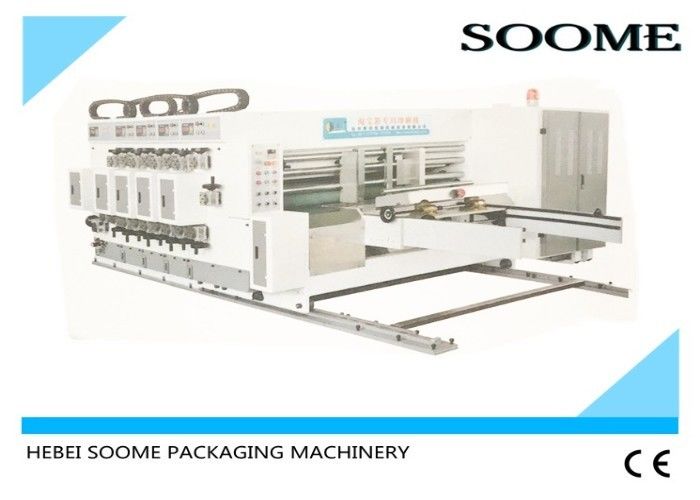

Lead Edge Feeder Flexo Die Cutter / Mini Flexographic Printing Machine
| Model | 2000Type |
| Max machine speed | 60-120pcs/min |
| Length of printing roller | 1600mm |
| Max feeding size (L*W) | 1700*600mm |
| Min feeding size (L*W) | 450*170mm |
| Negative knife(A*B) | 150*50mm |
| Positive knife(A*B) | 80*80mm |
| Min height of box(H) | 70mm |
| Dimension(L*W*H) | 5500*3000*1650mm |
1. The machine is consist of automatic paper feeder ,printer and slotter, can finish the 3ply / 5ply paper printing and slotting procedures in once time.
2. This machine wallboard and ground rack adopt 30mm thickness cast iron, improved the machine stability.
3. Adopt 40# steel gear,fine milling, all gears with precise grinding , spray lubrication, adjusted by gear crosshead shoe, gapless running .
4. Main motor adopt 4kw frequency motor, frequency conversion drought fun 4.0kw can adjust blowing volume, ink distribution motor.
5.The lead edge automatic feeder adopt light pressure auto feeder, will not damage paper flute, keep flute, smooth feeding and good printing effect.
6. The suitable paper thickness: 1.5~12mm. Can process A/B/C/E flute corrugated paperboard.
7. Main configuration: Touch screen control on auto feeder, electrical phase adjustment, electrical units separate and combine, penumatic locking, pneumatic lifting up and down of printing plate, spray lubrication, slotter knives electrical transverse moving, electrical carton height adjustment, computerized control of sizes, can adjust carton height and transverse moving synchronously and can store orders.
8. Slotter unit adopt crosshead shoe and guide rail, improved the slotting precision and adjust speed. 10pcs lead screw for computerized control. Increase creasing shafts to 3 rows of creasers, make creasing shafts thicker and heaver, can improve the creasing effect, make paperboard more suitable to the automatic folder gluer.
9. Standard: CHNT electrics, DELIXI motor ( option: Schneider or Siemens electrics ).
Sale
Pre-sale: product introduction, technical exchange, non-standard product design, troubleshooting.
In sale: keep good faith contract, ensure timely delivery, keep in touch at any time, to special or complex products, I plant arrange technical personnel to the user for product use and troubleshooting, debugging and maintenance guidance.
After sale: the guarantee period is 12 months out of the factory, in the course of use, regular return visit, consult the user to the product quality use condition, the improvement opinion and so on aspect feedback, in order to further improve the product quality.
