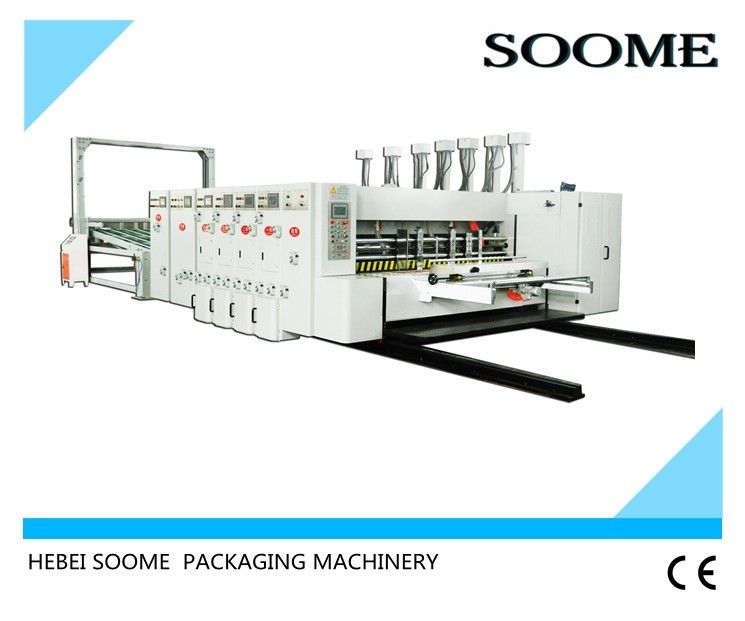

Multicolor Flexo Printing Machine High Speed 150Pcs/Min For Corrugated Carton

Place of Origin China Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMYS-GZ
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or plastic * 40”container
Delivery Time 45 days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 set/month
Product Details
Type Packaging Line Place Of Origin Hebei,China
Automatic Grade Automatic Has Been Exporting Country European/United States/Africa/Asia/Middle East
Warranty 1 Year After-sales Engineer Available To Service Machinery
High Light

flexo printer slotter machine

,

printing slotting die cutting machine

Leave a Message
Product Description



150Pcs/min High Speed Automatic Flexo Printing Slotting Die cutting Pizza Box Making Machine With Stacker



Main Features:



1. Automatic computerized machine,easy operation.

2. Color touch screen,save 999 groups orders.Automatically order’s input,inquiry,delete and zero-clearing.The automatic/manual adjustment of phase,management of the parameters ,up and down the plate,auto/semi-auto inking,automatic display of production and speed,and setting of the quantities.

3. All the drive rollers adopted high quality steel materials,hard chromium plating and the surface treated by lapping finish.The drive gears adopt high quality alloy steel,after heat treatment and lapping finish.

Interval of all the rollers is adjusted by high precise worm box.With three disk handle seat,convenient and swift.

4. Motorized electric numerical adjust the axial and vertical movement of the knife seat and height of the carton.

5. Speed difference compensation system is equipment with die cutting unit,Axially conjunct moving of the cam type soft roller is 40mm,uniform wear and tear,raise the occupation of the gum cover,save the cost.

6. Suitable for 3/5/7 layer corrugated paperboard,as well E flute paperboard.

7. Main engine controlled by frequency converter,can save electric for 30%.



Stacking part:



1) Installed with safeguard mechanism with the paper-receiving arm can be operated by hand or automatically in order to prevent the sudden falling down of the paper-receiving arm for the safety of the operating personal.

2) The lifting of machine platform is driven by powerful chain.

3) The piling height is 1600mm.

4) The platform tilting height adjust automatically according to the paper piling height. The rising and descending motor equipped with brake function, that keep th fixed position to prevent falling down.

5) Adopt the organization of pneumatic paper lifting. Receiving tray will automatically open can catch the paperboard while the paper are piled to the planned height.

6) The surface corrugated belt can prevent the sliding of paperboard.



Parameter Model
  SMYS-GZ420-2600 SMYS-GZ420-3000 SMYS-GZ480-2800 SMYS-GZ420-3200
Inner width 2600mm 3000mm 2800mm 3200mm
Max.paper size 1300*2300mm 1300*2700mm 1500*2600mm 1500*3000mm
Max.printing size 1250*2200mm 1250*2600mm 1500*2400mm 1500*2800mm
Interval feeding size 1400*2300mm 1400*2700mm 1650*2600mm 1650*3000mm
Max.speed 150pcs/min 150pcs/min
Economic speed 0-120pcs/min 0-100pcs/min
Topping precision +-0.5mm +-0.5mm
Standard plate thickness 7.2mm 7.2mm
Cardboard thickness 2-11mm 2-11mm
Min.slotting interval 165*165*165*165mm 165*165*165*165mm
Max.slotting depth 320mm 450mm
