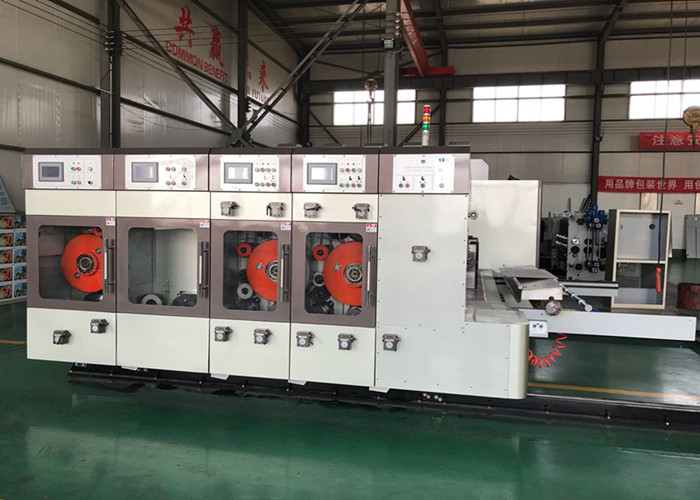

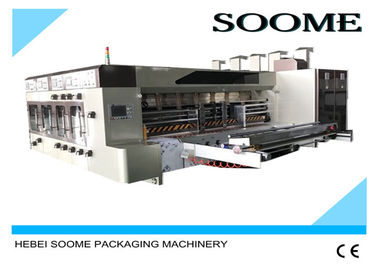

Dust Proof Flexo Printer Slotter Die Cutter With Lead Edge Suction Feeding System

Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMYS-GS1630
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wpped With Film
Delivery Time 2 Months
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Sets/Month
Product Details
Condition New Color Customized
After Service Engineers Provide Overseas Service. Material Steel
Warranty 1 Year Total Power 50KW
High Light

flexo printer slotter machine


printing slotting die cutting machine

Leave a Message
Product Description

Dust Proof Flexo Printer Slotter Die Cutter With Lead Edge Suction Feeding System




A machine for printing words and images. Modern presses usually consist of plates, ink, embossing and paper feeding (including folding). The invention and development of printing machines play an important role in the dissemination of human civilization and culture. With the variety of market cardboard, our company designed and developed SMYS-GS1630, not only suitable for large cardboard printing, slotting, die cutting, but also stable machine, sustainable work, humanized design, easy to operate and repair.


Main Feature


High precision bevel gear,adopt 20CrMnTi quality steel, carburizing quenching, fine grinded gear,transmission gear of high strength, good wear resistance, low noise, longtime ensure the machine rotation precision.Lubrication adopt closed type spray lubrication system, to ensure transmission accuracy and use-life.




Feeding Unit


1. Lead-edge suction feeding system, easy operation, high accuracy.(adopts lead feeder system).

2. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

3. Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.

4. Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.


Printing Unit


1. With printing plate, outer diameter φ530mm

2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

3. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

4. Installed with foot switch to control plate roller reversing, convenient change plate

5. Printing roller plate-change and fix-plate function.

6. Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy

7. Printing roller can be adjusted for a distance 0-12mm

8. Optional ceramic roller,used Guangzhou Guangtai brand.

9. Pneumatic roller automatic lifting device and idle device.


Slotting Unit


1. Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons

2. The first pressure line round, after preloading cardboard not easily crush.Slotting phase and box height, computer and electric digital control.

3. Preload, creasing gap adjustment adopt mechanical control.The slotter knife stock gap adjustment adopt self-locking structure.

4. The slotter knife adopt postive or Anti-knife manner(optional).

5. Computer automatic arrange knife, can stockpile 999 memories.


Die Cutting Unit

1. Rubber roller mechanical spiral commutation 40mm move about horizontal structure.

2. Die-cutter phase, computer and electric digital control.

3. Horizontal phase, computer and electric digital control, range ±5mm.

4. Rubber roller and die roller gap use computer and electric digital control.


Type 1630 High Speed Lead Edge Paper Feeder 5 Colors Flexo Ink Printer

Slotter Die cutter Machine For Big Paper Size

Max Machine Speed (pcs/min)


Economic Working Speed (pcs/min)


Max Feeding Size (mm)


Max Printing Size (mm)


Skip-feeding Size (mm)


Min Feeding Height (mm)

450(Low speed, full printing)
Standard Plate Thickness (mm) 7.2

Suitable Cardboard Thickness (mm)
