Electrical Flexo Printer Slotter Die Cutter Pneumatic Locking French Schneider Electric Elements

Place of Origin China Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMYS-QY
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or plastic * 40”container
Delivery Time 45 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 15 set / month
Product Details
Printing Plate Thickness 7.2mm Max.cardboard Thickness 2-11mm
Voltage Customized Color Customer’s Request
Usage Printing Carton Box Warranty 1 Year
High Light

flexo printer slotter machine


flexo printing slotting machine

Leave a Message
Product Description

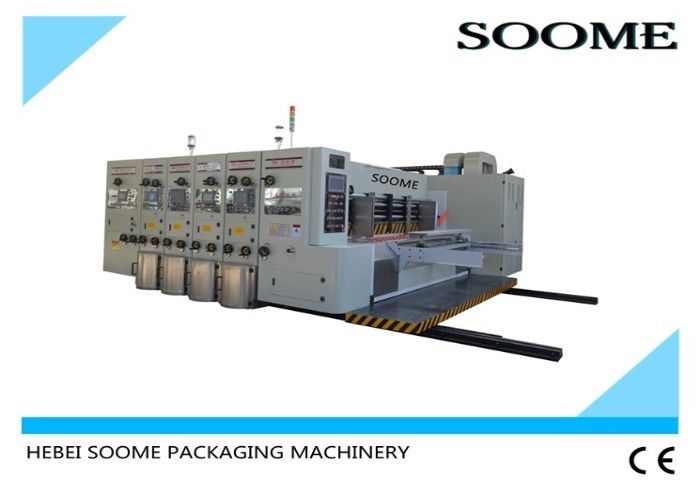

Lead Edge Feeding High Speed Flexo Printer Slotter And Rotary Die cutter Machine


  Flexo printer slotter and rotary die cutter machine is a printing equipment which can print the required text, pattern and other information to the surface of the box box. It usually includes the process flow of loading, painting, printing, and conveying paper. Carton printing usually has a single printing, printing tape slotting / die cutting, printing slotting / die cutting, sticky box and linkage production line.


I.  Machine Feature:


1. The main electric elements all adapt French Schneider brand. Name-brand PLC controlling, colorful touch screen , frequency converter.

2. The transmission gear adopt 40 Cr, 20GrMo Ti high quality alloy steel which is grinded, and after the heat treatment ,it can up to six grade precision.

3. The machine lubrication system uses an automatic spray lubrication, and with the device impermeable to oil spills institutions.

4. Each unit of the machine with electric separation, and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.

5. Every unit of machine with emergency stop switch, so the machine can be stopped between the unit, it can ensure the workers safe (remark: every unit moving is drag by feeder unit)


II. Main parameter


Type Unit SMYS-QY-2600
Plate roller diameter mm ¢480
Plate roller length mm 2500
Inner width of machine mm 2600
Speed pcs/min 120
Max printing area mm 1400×2200
Max feeding paper size mm 1450×2400
Feeding paper by skip mm 1600x2400
Min feeding paper size mm 400×720
Board thickness mm 2-11
Print plate thickness mm 7.2
Print roller axle circle-oriented regulating degree 360°revolving
Topping precision mm ±0.5
Weight kg 19000


III. Details of each part


Feeding department:


1) The master control panel by the control buttons and touch screen control operation, convenient and reliable.
2) Skip paper feeding with counter, showing the production number.
3) The front bezel to manually adjust the gap.
4) 11KW wind turbine, suction feeding, the electric inverter to adjust the air volume, according to board bending different, so air flow adjustments to ensure smooth paper.
5) The dust removal device and fan brush the surface clean cardboard scraps of paper.

6) Thick-walled seamless steel pipe, wrapped in plastic wear phase, that is to maintain flexibility and ensure that the surface wear and reduce the squash into the board.
7) Front feed under the roller diameter ф159 mm, back feed under diameter ф149 m, quenched and tempered seamless steel grinding the surface of hard chromium plated embossed and treatment.

8) The transmission uses two roller drive coupling, reducing wear and tear to make the drive more stable.
9) The use of electric sub-machine fit, with a continuous alarm warning lights to ensure the safety of operations.
10) Shaft with electromagnetic friction clutch, to prevent malfunction or overload protection of the motor will not burn.
11) Feeder, printing department, the Department of cutting electric automatic zero.
12) Pneumatic chain of devices.


Printing department


1) Printing of high quality thick-walled seamless steel roll, surface conditioning, grinding, hard chromium plating.
2) All axes of roller correct by dynamic balance, the machinery running steady.

3) Handling print, the foot switch is convenient and flexible electric control reversing.
4) Printing , roller clearance adjusted by hand, the scale panel shows the data.

5) Printing phase fixed device, using pneumatic brake mechanism. While the machine separates or the phase is adjusting, the brakes can restrict the revolving of the machine platform and keep the fixed point of original gears position.

6) Rubber roller: the surface of the roller is steel pipe which is packed by the wear-resisting rubber. Adopting medium and high special grinding the rubber roller has effective ink-spreading.

7) The steel roller adopt high precision hard chrome plating net-grain roller.

8) Installed with ink roller rotation electrical machinery to avoid the main engine’s drying up while its stopping.


Slotting the Department


1) The function of the double shaft slotting unit (adopt units). Big size carton box or kicking paperboard slotting can save loading knife time.

2) Slotting phase and the height carton box adjusting, computer and the electrical number can be controlled.

3) Slotting knife with a move transversely structure, screw with linear axis that mobile more flexible and accurate.

4) The up and down knife move at the same time, keep the linkage of knives, accurate, extend the service life tools.

5) Slotting knife shaft space, computers and digital electronic adjustment automatically.

6) The slotting knife move transversely with double prevent collision protection device (electronic and mechanical).

7) Elastic and corner cutting blade structure, three and five layers board corner cutting no adjustment and operation more convenient.

8) Line wheel, slotting knife move transversely adjustment, computer and electric control.

9) Creasing gap adjusting with computer and digital electronic control (choose configuration).


Rotary die-cutting department:


1) The rubber roller adopt mechanical control the position move left and right.The movement distance is 40 mm.

2) The phase of the die-cutting unit adopt PLC and electric 360° adjust,accord the error to input the adjust data,can be adjusted while the machine running or stop (PLC with touch screen adjustment as an option).

3) The horizontal moving of the die roller adopt PLC and electric adjustment,input the adjust data accord the error ,adjusting distance is 10mm.(PLC with touch screen adjustment as an option)

4) The space adjustment of rubber roller and die roller adopt self-locking structure,with cylinder big scope quickly adjust,decrease the rubber wear,increase the rubber life.

5) The space adjustment between the feed roller adopt self-locking structure.

6) The unique speed compensation device can make the rubber roller rolling running with the die roller, make the surface speed of the rubber cushion is completely controlled by the die roller, the shape of the carton sheet will absolutely equal to the die pattern.

7) There is a rubber repair device with the machine, the rubber can be used after repaired.
