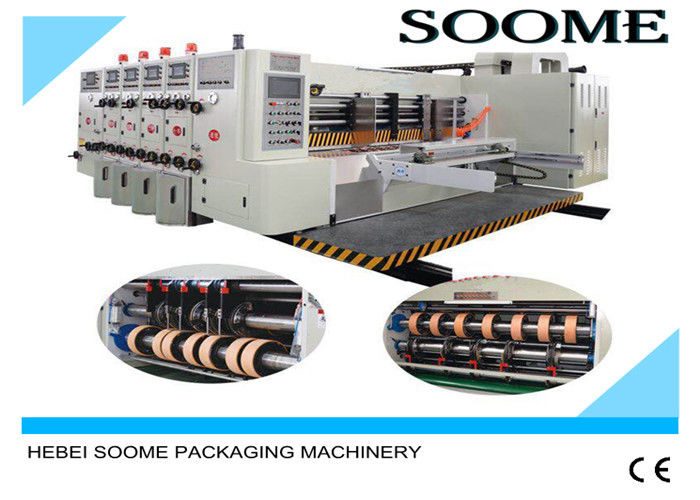

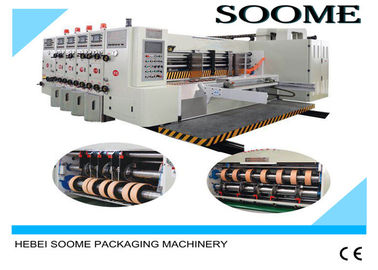

High Efficiency Flexo Printer Slotter , 220V 380V Corrugated Box Printing Machine

Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMYS-GS1226
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wpped With Film
Delivery Time 2 Months
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Sets/Month
Product Details
Condition New Color Customized
Weight 19T After Service Engineers Provide Overseas Service
Voltage 220V/380V Usage Card Printing, Paper Printer Or Others
High Light

flexo printer slotter machine


printing slotting die cutting machine

Leave a Message
Product Description

180PCS / Min Lead Edge Paper Feeder 3 Colors Water Ink Flexo Printer

Slotter Die cutter Machine




Printing is one of the four great inventions of our ancient times, but it is still widely improved and applied.

The principle of ink flexo printer is using water brush. Ink printing is a special printing technology which can show meticulous color changes on the carrier.The ink used in ink and ink printing needs to be dilute and dissolved, so as to ensure the smoothness of color printing. Because the diluted ink for light color printing is more expressive than the light color of ordinary special color.Designers often use diluted ink for ink printing and form a light color on the paper for the subsequent use of four color printing.




1. The main electronics all adapt French Schneider brand. Name-brand PLC controlling, colorful touch screen , frequency converter.

2. The transmission gear adopt 40 Cr, 20GrMo Ti high quality alloy steel which is grinded.Also after the heat treatment it can up to six grade precision.

3. The machine lubrication system uses an automatic spray lubrication, and with the device impermeable to oil spills institutions.

4. Each unit of the machine has the funcation of electric separation,pneumatic locking, pneumatic total lock for ensuring the stability of the unit.Ringing for reminding caution when machine separated is the way to ensure the safety of operating person.

5. Each unit equips emergency stop switch to stop suddenly.(remark: each unit movement is drag by feeder unit)



Feeding Unit


1. The master control panel in the front of the feeder which equipped multiple control buttons and one  touch screen make the operation fast and conveniently.

2. 11KW wind turbine enhances the suction feeding speed.The electric inverter adjusts the air volume according to  different bending board which make sure the paper running across smoothly.

3. The dust removal device and fan brush the surface clean cardboard scraps.

4. The transmission uses two roller drive coupling reducing wear and tear to make the drive more stable.


Printing Unit


1. Printing of high quality thick-walled seamless steel roll, surface conditioning, grinding, hard chromium plating.

2. Handling print, the foot switch is convenient and flexible electric control reversing.

3. Printing phase fixed device, using pneumatic brake mechanism. While the machine separates or the phase is adjusting, the brakes can restrict the revolving of the machine platform and keep the fixed point of original gears position.

4. Installed with ink roller rotation electrical machinery to avoid the main engine’s drying up while its stopping.


Slotting Unit


1. The function of the double shaft slotting unit (adopt units). Big size carton box or kicking paperboard slotting can save loading knife time.

2. Slotting knife shaft space, computers and digital electronic adjustment automatically.

3. The slotting knife move transversely with double prevent collision protection device (electronic and mechanical).

4. Line wheel, slotting knife move transversely adjustment, computer and electric control.

5. Creasing gap adjusting with computer and digital electronic control (choose configuration).


Die Cutting Unit


1. The rubber roller adopt mechanical control the position move left and right.The movement distance is 40 mm.

2. The phase of the die-cutting unit adopt PLC and electric 360° adjust,accord the error to input the adjust data,can be adjusted while the machine running or stop (PLC with touch screen adjustment as an option).

3. The horizontal moving of the die roller adopt PLC and electric adjustment,input the adjust data accord the error ,adjusting distance is 10mm.(PLC with touch screen adjustment as an option)


Main parameter


Type Unit SMYS-QY-2600
Plate roller diameter mm ¢480
Plate roller length mm 2500
Inner width of machine mm 2600
Speed pcs/min 180
Max printing area mm 1400×2200
Max feeding paper size mm 1450×2400
Feeding paper by skip mm 1600x2400
Min feeding paper size mm 400×720
Board thickness mm 2-11
Print plate thickness mm 7.2
Print roller axle circle-oriented regulating degree 360°revolving
Topping precision mm ±0.5
Weight kg 19000
