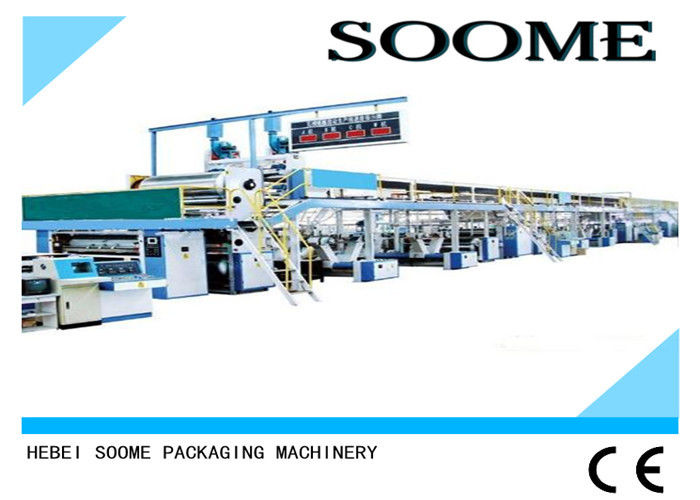

Electric Corrugated Cardboard Production Line

High Temperature Corrugated Cardboard Production Line Lubricated Glue Application

Summarize

Corrugated cardboard production line is the key to the corrugated carton production enterprise production equipment.Corrugated cardboard enterprise faces the increasing fierce market competition because of the corrugated cardboard users paying more attention on order specifications, small quantity and fast delivery,that's why we must improve the automation of corrugated board production line, the same as the level of corrugated board production line of production management including improve quality and efficiency, save energy and manpower, reduce supplies and  waste, the purpose of equipment is key to achieve this goal, including cadres corrugated cardboard enterprise dealing with the cadres of the old production line equipment to conduct a comprehensive upgrade, The new production line shall be equipped with automatic cadre equipment with production management system.

Operating Principle

Corrugated board production line is pressed corrugated roller base paper,glue,paper separating, cutting into different size,the last working procedure of assembly line by code output, etc. Such as single-sided corrugated paper production line is usually composed of web support, single face corrugated board forming machine, rotary paper cutting machine, using roll paper materials and potato or corn starch adhesive, continuous production and cut into the required specifications of the single face corrugated board.Cardboard don't have to dry.It can produce more than three layers of corrugated cardboard.

Main Parts

Hydraulic Mill Roll Stand

Technical Parameters

Base paper diameter:Ø400mm-Ø1500mm
Max. load: 3000kg
Main shaft dia. : Ø 215mm

Hydraulic System Parameters

Working pressure(MPa): 12－16 MPa
Hydraulic cylinder scope(swing): Ø 100mm×460mm
Hydraulic cylinder dia.(clamp):Ø 63mm×720mm

Structure And Features

Symmetrical structure can install two bundles base paper, to change paper with non-stop.
Adopt hydraulic drive, can make the base paper lift, clamp, loosen, move and center.
Head of paper clamping part with mechanical expansion design.
Tension control adopt pneumatic brake, manual control and also can be on-line controlled together with paper receiving part.

Raw Material And Origin

Principal axis of holder and arm lock: high quality seamless steel pipe Origin: Chengdu
Wallboard of two sides:Q235A welded sheets Origin: Handan
Arm lock: HT200 casting Origin: Hebei
Electric elements: CHINT/Schneider
Girder connected box iron: Tangshan

Single Facer

Main Parts Parameters

Corrugated roller:Ø 280mm
Pressure roller:Ø 290mm 45# seamless steel pipe under quenching
Pasting roller:Ø240mm 45# seamless steel pipe with hatching knurling and hard chrome
Scrapping glue roller:Ø130mm 20# seamless steel pipe
The pre-heater roller:Ø320mm 20G steel Origin: Baotou

Machine Features

Wind adsorption for paper transmission keep the steady corrugated type in high speed.
Blower adsorb the corrugated paper under the lower corrugated roller in range of 180°via vacuum box.
Suction slot of lower corrugated roller < 2mm, can reduce the trace on paper.
Adopt cardan shaft drive to separate from the vibration source, operation more stable.
Reduction gearbox adopt immersion oil, closed gear drive reduced the vibration.
Adopt circulatory gluing, offering glue by pneumatic.
Pasting roller with hatching knurling and hard chrome on the surface.

Raw Material & Purchased Parts

Wallboard of two sides:HT200 Origin: Hebei
Foundation material: welded box iron Origin: Tangshan

Single Layer Overbridge

Technical Parameters

Paper holding roller:front above Ø135mm back above Ø135mm
Low speed conveying roller:drive roller Ø135mm driven roller Ø135mm
Tension bridle roller Ø85mm hanging roller Ø85mm
Adsorption lead roller Ø85mm

Structure & Features

It is a kind of bridge type conveyor transport the single corrugated paper to tension brake or adsorption brake by tracker and conveyor for next process.
Adopt suction tension device, high pressure centrifugal converter adsorb the papers by vacuum, electric rectification, assured the paper flat.
Electric elements controlled the two sets operation board, it can be adjusted above and below the bridge separately.
The tracker use the chain drive to pull the single corrugated paper to the bridge together with the single facer. The conveying speed is slow to that can form the wave overlap for production line.

Raw Material & Purchased Parts

Material of main frame:16# Box iron Origin: Tangshan
Conveyor of paper storing part:parallel rubber conveyor Origin: Tianjin

Online Thin Blade Slitter Scorer

Technical Parameters

Machine body left-right moving:±100mm *Min. Slitting width:130mm
Working air pressure:0.6－0.9MPa
Relative humidity:20%－90% *Temperature:5－50°

Structural Features

The work height can be electric adjusted and the orders can be changed quickly when two machines work together.
Dual frequency converter controlled.
Blade & scorer both move by manual (Option: blade & scorer both move by electric).
Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr.
Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.
Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet.
Adopt China famous brand or imported electric elements, reliable performance.
Electric left-right rectification function to cooperate the position of paper sheet.

Raw material

Main wallboard material of the two sides: Q235A
Blade:outer dia. 260mm material: tungsten steel alloy

NC Spiral Blade Cut Off Machine

Technical Parameters

Paper cutting range:max.9999mm min.500mm
Paper cutting precision:±1mm (in constant speed)
Paperboard: raw paper < 360g/㎡ core paper < 200g/㎡

  thickness 3－14mm moisture content < 10%

  warpage < 30mm
Relative humidity: 20%－90% Relative temperature:5℃－50℃
Knife shafts dia.:above Ø188mm Lower Ø188mm.
Paper guide dia.: front above shaft(sun gear)Ø165mm front lower shaft Ø120mm
Back above shaft(sun gear)Ø165mm back lower shaft Ø120mm

Structural Features

Special construction: intensive wallboard and pedestal, transparent window on the two sides of wallboard for easy view and maintenance.
Drive system adopt auto oil pump cyclic lubrication, assured the entirely lubricating for gears.
High precision and hard grinding gears resist high speed, keep the long time working life and be identical with the gaps.
Precise cutter shaft and holder assured the cutting stably in high speed.
The special structure of blade adjustment and changing make it very fast.
The complete system all adopt C.E standard design with strict industrial computer test, has the good quality, long lifetime and stability.
AC servo drive with high quality, fast and accurate reaction on the drive part.
Special electric design can save much more energy.
The auto detection function avoid the damage of abnormal operation.
Computer can adjust the slitting speed automatically and keep synchronous speed with the production line.
Memorize 999 orders and finish the orders as per the priority settled.

Raw Material & Purchased Parts

Material of wallboard and pedestal:HT200 casting Origin: Hebei
Material of up & down shaft:45# steel
Material of cutting knife:W18crv5Co5(high speed tool steel)
Material of gears:40Cr accurate grinding modulation.

Automatic Orthogonal Stacker

Technical parameters

Max. Paper length: 2000mm

Structural Features

Lengthways receiver adopt wide conveyor belt.
Automatic piling up, auto counting, electrical zero, electrically convey laterally.

Material

Main frame: #16 box iron
