3000mm Heavy Thin Blade Slitter Scorer Machine For Corrugated Sheet Cutter
Wide Size | 2800mm | Min.slitting Wide Size | 120mm |
---|---|---|---|
Usage | Cutting And Creasing Cardboard | Key Word | Slitter Scorer |
Blade Material | Tungsten Steel Raw Material | Scorer | Pre-press ; |
Speed | 120m/min | Blade Size | 190*105 |
High Light | 3000mm thin blade slitter scorer machine,heavy thin blade slitter scorer machine,corrugated sheet cutter slitter scorer |

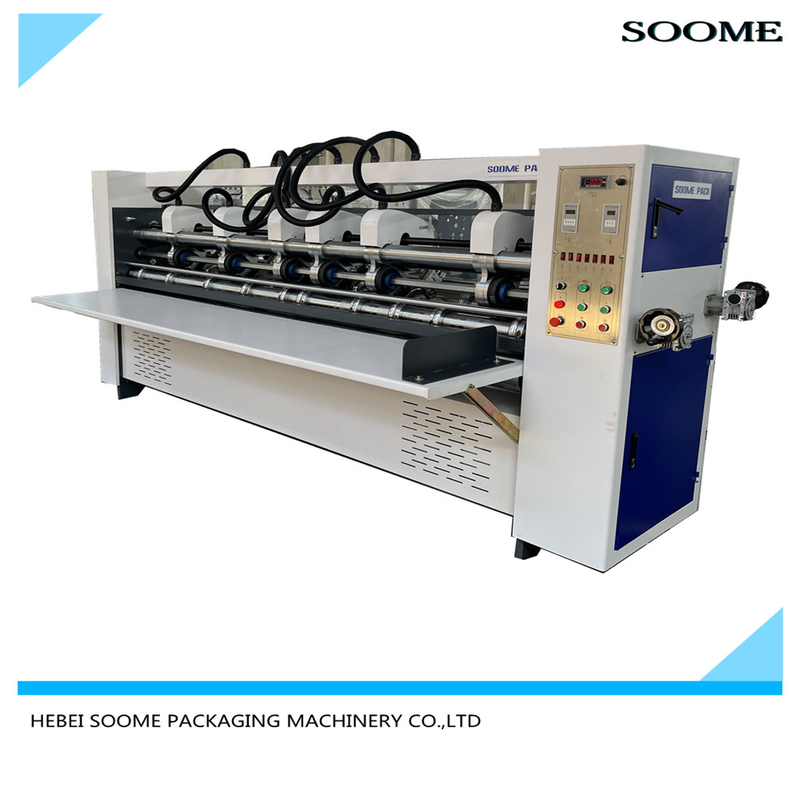

3000Mm Heavy Thin Blade Slitter Scorer For Corrugated Sheet Cutter
PRODUCT OVERVIEW
Thin blade slitter scorer machine is used for cutting and pressing paperboard. Compared with the traditional paper slitter, thin knife paper slitter is more neat without burr and burst line.

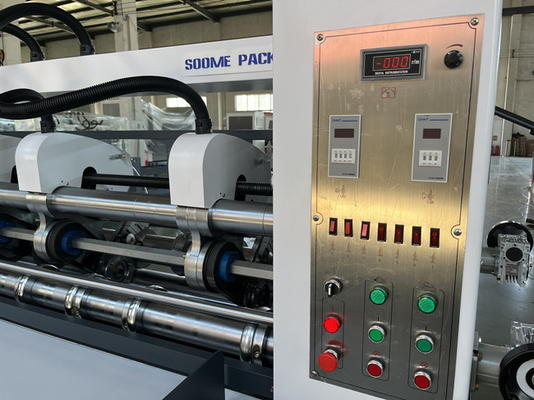

More shafts type thin blade slitter scorer machine,use the front and back double rubber shafts design,can pass short board.It is not only use for big board slitting creasing,can also use for small size baffles processing.Electric adjusted the space of slitter blade,auto locking,improve the efficiency.
TECHNICAL INDEX
Model | 2000 | 2200 | 2500 | 2800 | 3000 |
Max.wide size (mm) | 1800 | 2000 | 2300 | 2600 | 2800 |
Min .slitting wide size(mm) | 120 | 120 | 120 | 120 | 120 |
Min.slitting length(mm) | 260 | 260 | 260 | 260 | 260 |
Min.scorer width (mm) | 30 | 30 | 30 | 30 | 30 |
Scorer height(mm) | 0-12 | 0-12 | 0-12 | 0-12 | 0-12 |
Blade size(mm) | 190*105 | 190*105 | 190*105 | 190*105 | 190*105 |
Blade/scorer | 4/6,5/8,6/10,7/12,8/14 | ||||
Machine dimension(mm) | 2630*770*1350 | 2830*770*1350 | 3130*770*1350 | 3430*770*1350 | 3630*770*1350 |
Power (KW) | 3 | 3 | 4 | 4 | 5.5 |
