1370x2800 Flexo Ink Printer Slotter Die Cutter Machine Three Color

  • 1370x2800 Flexo Ink Printer Slotter Die Cutter Machine Three Color
  • 1370x2800 Flexo Ink Printer Slotter Die Cutter Machine Three Color
Place of Origin Hebei China
Brand Name SOOME
Certification CE certification
Model Number SMYS-1226
Minimum Order Quantity 1 set
Price negotiated
Packaging Details Wrapped with film or in wooden case
Delivery Time 25-40days after deposit
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100sets per month
Product Details
Warranty 1 Year Condition New
Machine Max Speed 180 Pieces/min Max Feeding Size (L×W) 1200mm×2400mm
Min Feeding Size (L×W) 350mm×650mm Skip Feeding Size 1400*2400mm
Max Printing Size 1200*2200mm Thickness Of Paperboard 1.8-12mm
Color Register 0.5-0.75 Thickness Of Print Plate 7.2mm
High Light

1370x2800 printer slotter die cutter machine

,

3color printer slotter die cutter machine

,

three color flexo printer slotter machine
Leave a Message
Product Description

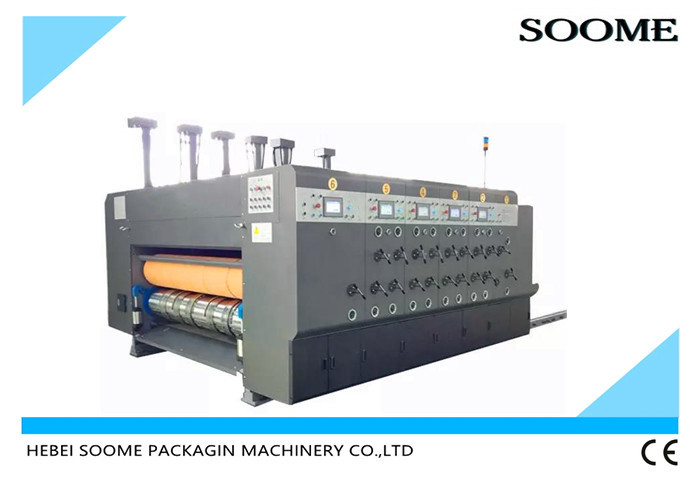

1370X2800 Flexo Ink Three Color Printer Slotter Die Cutter Machine

Function and characteristics:

Corrugating and die-cutting units belong to the middle and later stages of corrugated carton production line. Its main function is to print out the corrugated board produced in the previous process, color the cardboard, and then make the cardboard into a form of easy folding, stitching and bonding through two processes of grooving and die-cutting.




Technological Parameter:




1270×2200
1270×2500
1270×2800
width of inside machine
mm
2400
2700
3000
Design speed
pcs/min
180
180
180
Max. feeding size
mm
1200×2200
1200×2500
1200×2800
Max. printing size
mm
1150×1850
1150×2150
1150×2450
Min. printing size
mm
400×700
400×700
400×700
Precision of mahcine
mm
±0.5
±0.5
±0.5














Printing unit:


1. Quick change printing plate device.
2. The roller space adjustment adopt self locking structure.
3. The horizontal /phase adjustment of Printing plate adopt PLC and Electric 360 degree adjustment
4. The phase fix device adopt cylinder brake
5. Pneumatic diaphragm pump inking, automatic circle, automatic cleaning
6. Cleaning printing plate memory function

7. Anilox roller adopt pneumatic up/down device synchronous with feeder


Drying section:

1. Machine in accordance with high precision, high efficiency, low consumption, reliability, and design and manufacturing;
2. Independent drying system (infrared heater), the drying temperature can be adjusted according to need
1370x2800 Flexo Ink Printer Slotter Die Cutter Machine Three Color 0

























1370x2800 Flexo Ink Printer Slotter Die Cutter Machine Three Color 1
