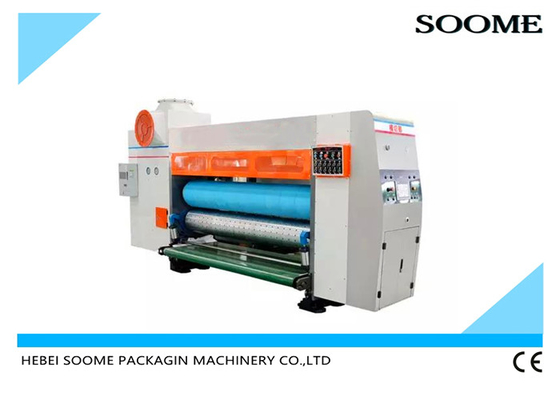

1270 Model Graphics Corrugated Carton Machine Printing Heating Polish

1270 Model Graphics Corrugated Carton Machine Printing Heating Polish

  • 1270 Model Graphics Corrugated Carton Machine Printing Heating Polish
  • 1270 Model Graphics Corrugated Carton Machine Printing Heating Polish
1270 Model Graphics Corrugated Carton Machine Printing Heating Polish
Product Details:
Place of Origin: China
Brand Name: SOOME
Certification: CE
Model Number: ZYK1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: wrapped with plastic film
Delivery Time: 60 days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 set pre/year
Contact Now
Detailed Product Description
Voltage: 380V/400V/415V Or Others Driven Type: Electric And Pneumatic
Max. Feeding Size: 1200×2200 Mm Max. Printing Size: 1150×1850 Mm
Min. Printing Size: 400*700 Mm Precision Of Mahcine: ±0.5 Mm
High Light:

1270 corrugated carton machine

,

printing heating polish corrugated carton machine

1270 Model Graphics Corrugated Carton Printing Heating Polish Machine



Function and characteristic:



Delta inverter and PLC ,touch screen operation .

Schneider contactor/ electric

Gear adopt 20CrMnTi material with grinding technology with thickness 60mm

Feeding stroke can be adjusted.

3 pcs servo motor for control the feeding unit, it is higher precision.

Units combined and detached by motor with alarm bell

Friction clutch installed on transmission roller which avoid machine damaged by mis-operation.

There is protect system for main motor(machine can not working when it is not locked for combination).

Four rollers for feeding, upper two rollers wrapped with rubbers which can keep the flute in good shape, not destroyed .

Dust removal device is installed

Front baffle is adjusted by manual.

Skipping feeding is available.



Technical index:





1270×2200
1270×2500
1270×2800
width of inside machine
mm
2400
2700
3000
Design speed
pcs/min
180
180
180
Max. feeding size
mm
1200×2200
1200×2500
1200×2800
Max. printing size
mm
1150×1850
1150×2150
1150×2450
Min. printing size
mm
400×700
400×700
400×700
Precision of mahcine
mm
±0.5
±0.5
±0.5



















Feeding Unit:


1. PLC Control Lead edge feeder, Frequency Converter Motor Quick react

2. Mechanical driving, feeding paper with high precision

3. Working speed and quantity digital display

4. Equipped with dust suck removing device to improve printing quality.



Printing unit:


1. Quick change printing plate device.

2. The roller space adjustment adopt self locking structure.

3. The horizontal /phase adjustment of Printing plate adopt PLC and Electric 360 degree adjustment

4. The phase fix device adopt cylinder brake

5. Pneumatic diaphragm pump inking, automatic circle, automatic cleaning

6. Cleaning printing plate memory function

7. Anilox roller adopt pneumatic up/down device synchronous with feeder

1270 Model Graphics Corrugated Carton Machine Printing Heating Polish 0

























































1270 Model Graphics Corrugated Carton Machine Printing Heating Polish 1
