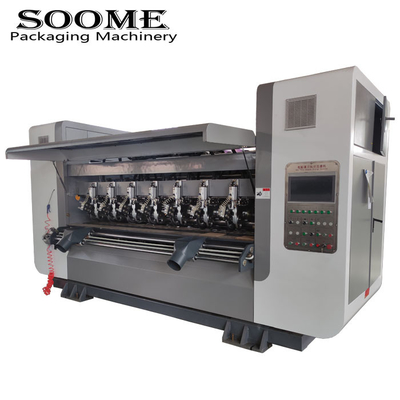

Computer Controlled Thin Blade Slitter Scorer Automatic Change Order Precise Cutting Nc

Place of Origin Made In China Hebei
Brand Name SOOME
Certification CE
Model Number SMBD-BNC
Minimum Order Quantity 1Set
Price Contact
Packaging Details Wooden case or plastic film;LCL or 20' Container
Delivery Time 45 Days /30 Days
Payment Terms L/C, T/T
Supply Ability 20 Pcs/month
Product Details
Speed 150,200,250m/min Blade&scorer 5&8,6&10,7&12
Order Change 1-3s(servo Type) 3-8s(invert Type) Precision ±0.5mm
Min.slitting 135mm Min.scorer 0mm
Correction Range 200mm Width 1800mm,2200mm,2500mm
Power 25kw,30kw,35kw
High Light

nc thin blade slitter scorer machine

,

computer controlled thin blade slitter scorer

,

precise cutting thin blade slitter scorer

Leave a Message
Product Description

Computer-controlled,Automatic change order,Precise cutting NC Thin Blade Slitter Scorer

1 . Summarize



Product overview:As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise.Adopt computer-controlled,automatic change order,and reduce waste,improve work efficiency.



2 .  Features



1) High quality touch screen and PLC equipped composing the CNC system,connect to the production line.

2) High quality beeline rail and high-precision screw conveying guarantees the precision.

3) A memory of orders,realize non-stop automatic or manual change.

4) Speed synchronizes with board speed.Standard communication interface,easy to link with management system.

5) Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto sharpening.

6) The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.

7) Three types of scorers:convex to concave(three lines).convex to concave(five lines),convex to flat.

8) Two rows of scorers,realizes minimum scorer spacing is 0mm.

9) Computer control score-depth,high quality scorer,more steady.

10) Using the synchronous belt transmission ,low noise,prolong using time.

11) Standard motorized body left-right rectification system 200mm.



3. Technical index





width 1800mm 2200mm 2500mm
speed 150,200,250m/min
Blade&scorer 5&8,6&10,7&12
Order change

1-3s(servo type)

3-8s(invert type)

precision ±0.5mm
Min.slitting 135mm
Min.scorer 0mm
Correction range

200mm

power

25kw

30kw 35kw
machine size

3900*1800*2450 (mm)

4300*1800*2450(mm) 4500*1800*2450(mm)





Computer Controlled Thin Blade Slitter Scorer Automatic Change Order Precise Cutting Nc 0
