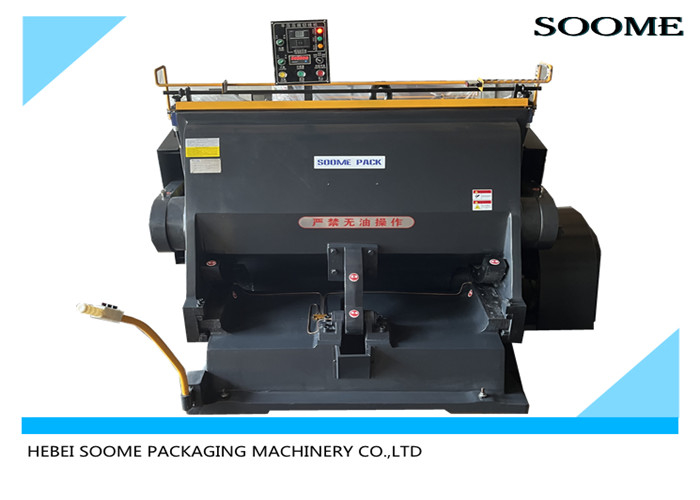

Corrugated Cardboard Sheet Manual Die Cutting And Creasing Machine 28pcs/Min
| Place of Origin | China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | ML1500 |
| Minimum Order Quantity | 1 Set |
| Price | Contact |
| Packaging Details | Wooden case or plastic film;1*20'Container |
| Delivery Time | 15 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 Sets/Month |
Product Details
| Usage | Die Cutting And Creasing Cardboard | Capacity | 16-28pcs/min |
|---|---|---|---|
| Voltage | 380V Or As You Need | Suitable For | Corrugated Cardboard Or Paper |
| Power | 7.5KW | Machine Weight | 6000Kg |
| Machine Metaril | Cast Iron | Product Name | Manual Die Cutting And Creasing Machine |
| High Light | 380v manual die cutting and creasing machine,28pcs/min manual die cutting and creasing machine,corrugated cardboard creasing die cutting machine |
||
Product Description
Corrugated Cardboard Sheet Manual Die Cutting And Creasing Machine
Main Features
1. Adopt high quality foam type casting HT250 material, main parts use 700-2 material which has the high density, more thick and bigger cutting pressure. Each machine is about 400kg heavier than common type.
2. The whole machine adopts China famous brand HRB bearings, with heat treated,angle change position designing, to reach the high strength and better occlusion.
3. Sliding bearings are made of high quality alloy copper, abrasion resistant and shake reducing. Bearing shaft adopts ZCuZn40Pb2 material.
4. High cutting pressure, moving-bed can be opened to its optimum, angle bigger than 160°, so the operation is more easy and safe.
5. This machine brake is sensitive and has four safety insurance methods, keep the operator more safe.
6. Automatic oil supplying system.
7. All our machines use the painting specially for cars, more beautiful and durable.
8. Have 3 functions of pressing and cutting for single sheet, continuous sheets and opening dwell. The dwell time can be adjusted.
9. Flywheel with big moment of force and large pressure.
10. The single plate electromagnetic clutch is sensitive and reliable.
11. Be suitable to colorful corrugated cartons, kinds of plastic plates, leather, car inside decoration, cloth collar, and covered film products.
Specifications
| Model | Max. area | Working speed | Efficiency length | Power | Overall dimensions |
| ML750 | 750x520mm | 28±2(stroes/min) | <15m | 2.2kw | 1260x1350x1280mm |
| ML930 | 930x670mm | 23±2(stroes/min) | <25m | 4.0kw | 1800x1600x1600mm |
| ML1100 | 1100x800mm | 20±2(stroes/min) | <32m | 5.5kw | 1900x1800x1700mm |
| ML1200 | 1200x830mm | 20±2(stroes/min) | <35m | 5.5kw | 1900x2000x1700mm |
| ML1300 | 1300x920mm | 18±2(stroes/min) | <40m | 7.5kw | 2000x2400x1800mm |
| ML1400 | 1400x1000mm | 18±2(stroes/min) | <45m | 7.5kw | 2000x2450x1900mm |
| ML1500 | 1500x1050mm | 18±2(stroes/min) | <45m | 7.5kw | 2000x2500x1930mm |
| ML1600 | 1600x1250mm | 16±2(stroes/min) | <50m | 11kw | 2170x2560x2130mm |
| ML1800 | 1800x1300mm | 16±2(stroes/min) | <62m | 15kw | 2240x2800x2230mm |
| ML2000 | 2000x1400mm | 16±2(stroes/min) | <80m | 15kw | 2280x2900x2230mm |
4 security insurance
