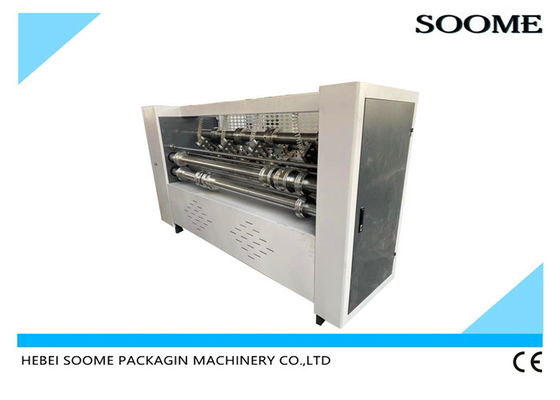

Manual Control 1800 Model Thin Blade Slitter Scorer Machine Corrugated
Voltage | 380V/400V/415V Or Others | Machine Power | 4.5/6/8KW |
---|---|---|---|
Condition | New | Driven Type | Electric |
Warranty | 1 Year | Max Slitting Size(mm) | 1800/2000/2800 |
Min Slitting Size(mm) | 130 | Min Slitting Length (mm) | 350 |
Min Scorer Width(mm) | 130 | Automatic Grade | Semi-Automatic |
High Light | thin blade slitter scorer machine corrugated,1800mm thin blade slitter scorer machine,manual control slitter scorer |
Manual Control 1800 Model Slitter Scorer Corrugated
Equipment introduction:
1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2. Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work
efficiency
3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
4. Adopt eight roll , two roll-rang feeding, then scoring ,easy to ad -justment.It could be do slitting only without scoring, avoid error when scoring.
5. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
Technical index:
Model | 2000 | 2200 | 2500 | 2800 | 3000 | |
Max slitting size(mm) | 1800 | 2000 | 2300 | 2600 | 2800 | |
Min slitting size(mm) | 130 | |||||
Min slitting length(mm) | 270 | 300 | ||||
Min scorer width(mm) | 30 | |||||
Scorer height(mm) | 0-12 | |||||
Blade size(mm) | 190*122 | |||||
Blade/scorer | 4/6 ,5/8 ,6/10,7/12,8/14 |
