3500mm Thin Blade Slitter Scorer Machine Automatic For Corrugated Sheet

Basic Information
Place of Origin: China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-DNC-3500
Minimum Order Quantity: 1 Set
Price: Contact
Packaging Details: Wooden case or plastic film;1*20'Container
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets/Month
Detail Information
Usage: Slitting And Scorer Corrugated Paper Sheet Wide Size: 2800-3500
Speed: 160m/min Blade Quantity: 4-8
Scorer Quantity: 5-14 Voltage: As You Need
Changed Order Time: 1-2 Seconds Feeder Paper Type: Automatic Lead Edge Feeder
High Light:

3500mm thin blade slitter scorer machine

,

computerized thin blade slitter scorer machine

,

rack and pinion type slitter scorer


Product Description

3500Mm Automatic Thin Blade Slitter Scorer Machine For Corrugated Sheet





I.  Machine Advantage:



1 . Rack and pinion type slitter scorer machine , fast order change, 1-2 seconds to change order.

2 . Pneumatic lifting of blades and creasers, maximize the size of cardboard processing.

3 . Computer control slitter and scorer , one-click to change order.

4 . Three kinds of pressure line, convex to flat (flat shaft design, no drag marks), convex to concave, convex to convex.

5 . Automatic lead edge feeder thin blade slitter scorer can save worker cost.



II. Brief introduction of functions:



1 . Man-machine interface—PLC control slitter and scorer. This system is a robot operating system that is more humane, simple in structure and easy to maintain.

2 . The slitting and pressing line is independently controlled by the servo, and the order change speed is fast, 1-2 seconds to change the order.

3 . Using precision ground gear rack and pinion transmission, slitting and scorer accuracy ±0.5mm.

4 . It adopts Taiwan Shangyin precision linear guide precision transmission.

5 . The height and pressure of the cardboard are automatically adjusted.

6 . Pneumatic lifting of the knife and pneumatic lifting of the pressure line maximizes the processing size.

7 . Auto counting.

8 . There are two sharpening methods, manual and automatic sharpening.

9 . The upper and lower control system is composed of high-quality PLC and high-performance programmable controller.

10 . The operation is very user-friendly and can be operated by ordinary workers.

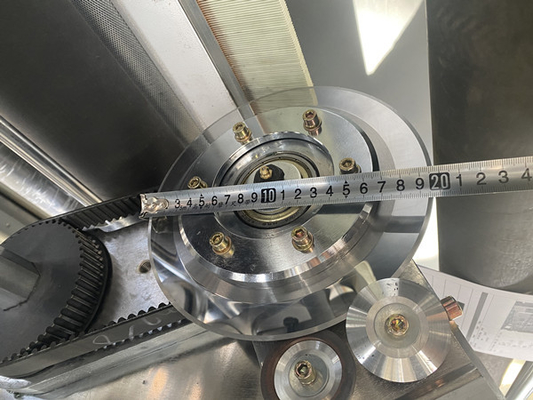

11 .  Slitting part: high-quality tungsten steel alloy blades are used, with long service life, and the slits of the cardboard cut out are neat and without fracturing and burrs.

12 . Thin blade slitter scorer machine can store 999 groups of orders.

13 . The synchronous belt transmission device has high precision, low noise and long operating life.



III. Thin blade slitter scorer main parameters



Model SMBD-DNC-2800 SMBD-DNC-3200 SMBD-DNC-3500
No.s of slitting scoring 4/6 5/8 6/10
Max.production speed 160m/min
Max.slitting width 2500mm 3000mm 3200mm
Min.slitting width 130mm 130mm 130mm
Min.feeding length 380mm 380mm 380mm
Min.scoring distance 120mm 120mm 120mm
Gap adjustment Auto
Main motor power 15kw 16kw 17kw
Weigh 3780kg 3980kg 4680Kg

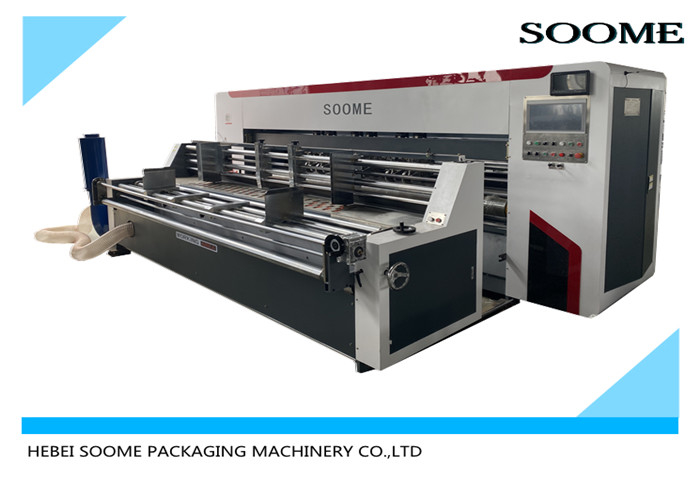

3500mm Thin Blade Slitter Scorer Machine Automatic For Corrugated Sheet 03500mm Thin Blade Slitter Scorer Machine Automatic For Corrugated Sheet 13500mm Thin Blade Slitter Scorer Machine Automatic For Corrugated Sheet 2
