2000 Type Thin Blade Slitter Scorer Machine For Corrugated Cardboard Production Line

Basic Information
Place of Origin: Made In China Hebei
Brand Name: SOOME
Certification: CE
Model Number: SMBD
Minimum Order Quantity: 1Set
Price: Contact
Packaging Details: Wooden case or plastic film;1*40' Container
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 30 Pcs/month
Detail Information
Usage: Corrugated Making Line Speed: 200m/min
Blade: 4 5 6 7 8blades Scorer: 6 8 10 12 14scorers
Keywords: Online Thin Blade Slitter Scorer Warranty: 1 Year
Function: Cutting And Creasing Cardboard Power: 380V
High Light:

2000 thin blade slitter scorer machine

,

corrugated thin blade slitter scorer machine

,

computerized thin blade rotary machine


Product Description

2000 Type Thin Blade Slitter Scorer For Corrugated Cardboard Production Line



Product overview:



  As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise.Adopt computer-controlled,automatic change order,and reduce waste,improve work efficiency.



Function and Characteristic:



1 . High quality touch screen and PLC equipped composing the CNC system,connect to the production line.

2 . High quality beeline rail guarantees the precision.

3 . A memory of orders,realize non-stop automatic or manual change.

4 . Speed synchronizes with board speed.Standard communication interface,easy to link with management system.

5 . Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto sharpening

6 . The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.

7 . Two types of scorers:convex to concave ,convex to flat.

8 . Two rows of scorers,realizes minimum scorer spacing is 0mm.

9 . Computer control score-depth,high quality scorer,more steady .

10 . Using the synchronous belt transmission ,low noise,prolong using time.

11 . Standard motorized body left-right rectification system 200mm



Technical Specifications:



width 1800mm 2200mm 2500mm
speed 150,200,250m/min
Blade&scorer 5&8,6&10,7&12
Order change

1s

precision ±0.5mm
Min.slitting 135mm
Min.scorer 0mm
Correction range

200mm

power

25kw

30kw 35kw
machine size

3900*1800*2450 (mm)

4300*1800*2450(mm) 4500*1800*2450(mm)

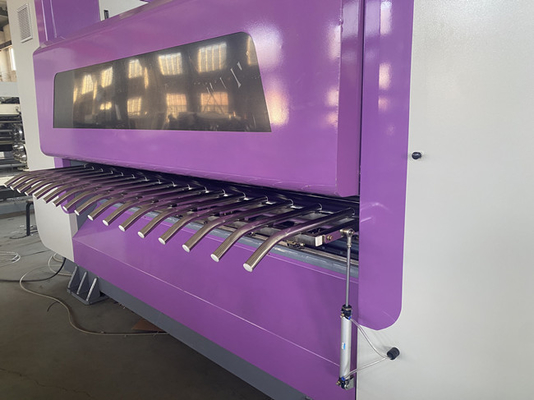

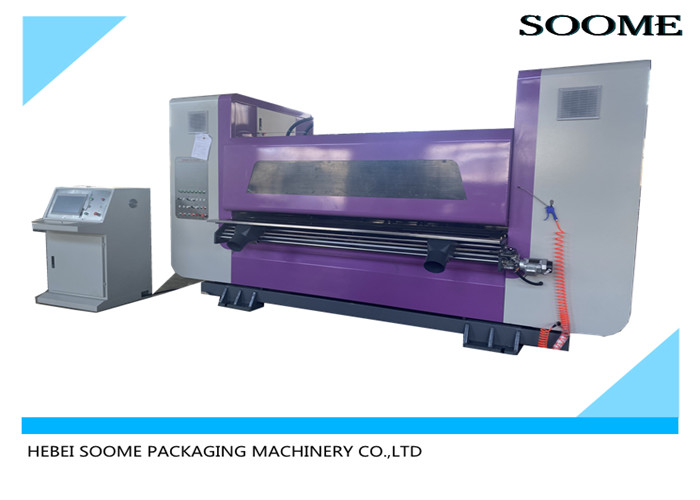

2000 Type Thin Blade Slitter Scorer Machine For Corrugated Cardboard Production Line 02000 Type Thin Blade Slitter Scorer Machine For Corrugated Cardboard Production Line 12000 Type Thin Blade Slitter Scorer Machine For Corrugated Cardboard Production Line 2
