Computerized 2200 Type Thin Blade Slitter Scorer For Corrugated Carton Box Making Line

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Computerized 2200 Type Thin Blade Slitter Scorer For Corrugated Carton Box Making Line

Product Details:
Place of Origin: Made In China Hebei
Brand Name: SOOME
Certification: CE
Model Number: SMBD
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Contact
Packaging Details: Wooden case or plastic film;1*40' Container
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 30 Pcs/month
Detailed Product Description
Usage: Carton Box Making Machine Speed: 200m/min
Blade: 4-8 Blades Scorer: 6-14 Scorers
Keywords: Thin Blade Slitter Scorer Warranty: 1 Year
Function: Cutting And Creasing Cardboard Power: 380V
High Light:

2200 type thin blade slitter scorer

,

computerized thin blade slitter scorer

,

computerised thin blade slitter scorer machine

2200 Type Thin Blade Slitter Scorer For Corrugated Carton Box Making Line



Product overview:



  As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise.Adopt computer-controlled,automatic change order,and reduce waste,improve work efficiency.



Function and Characteristic:



1 . High quality touch screen and PLC equipped composing the CNC system,connect to the production line.

2 . High quality beeline rail guarantees the precision.

3 . A memory of orders,realize non-stop automatic or manual change.

4 . Speed synchronizes with board speed.Standard communication interface,easy to link with management system.

5 . Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto sharpening

6 . The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.

7 . Two types of scorers:convex to concave ,convex to flat.

8 . Two rows of scorers,realizes minimum scorer spacing is 0mm.

9 . Computer control score-depth,high quality scorer,more steady .

10 . Using the synchronous belt transmission ,low noise,prolong using time.

11 . Standard motorized body left-right rectification system 200mm



Technical Specifications:



width 1800mm 2200mm 2500mm
speed 150,200,250m/min
Blade&scorer 5&8,6&10,7&12
Order change

1s



precision ±0.5mm
Min.slitting 135mm
Min.scorer 0mm
Correction range

200mm



power

25kw



30kw 35kw
machine size

3900*1800*2450 (mm)



4300*1800*2450(mm) 4500*1800*2450(mm)

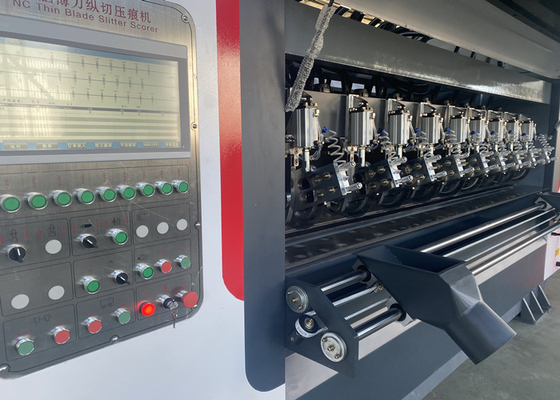

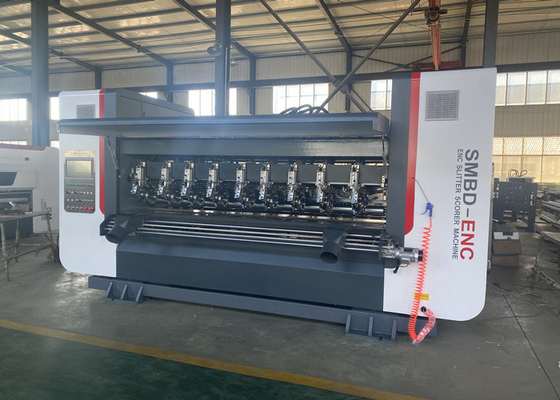

Computerized 2200 Type Thin Blade Slitter Scorer For Corrugated Carton Box Making Line 0

Computerized 2200 Type Thin Blade Slitter Scorer For Corrugated Carton Box Making Line 1Computerized 2200 Type Thin Blade Slitter Scorer For Corrugated Carton Box Making Line 2
