Pp Carton Semi 6-15mm Automatic Corrugation Machine Strapping Packer
| Place of Origin | Heibei Province China |
|---|---|
| Brand Name | SOOME |
| Certification | CE Certification |
| Model Number | SMDD |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | wooden case and filling with plastic film |
| Delivery Time | 15 days after depoist |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 per/mounth |
Product Details
| Application | Machinery & Hardware | Packaging Type | Cartons,Case,Film |
|---|---|---|---|
| Weight | 90 Kgs | Driven Type | Electric |
| Speed | 3M/S | Dimension(L*W*H) | 900*575*730mm |
| Strapping Width | 60mm-unlimited | Type | Wrapping Machine |
| Machine Power | 250 W | Power Source | 220V 50HZ |
| High Light | 6mm automatic corrugation machine,strapping semi automatic corrugation machine,15mm packing carton box machine |
||
Product Description

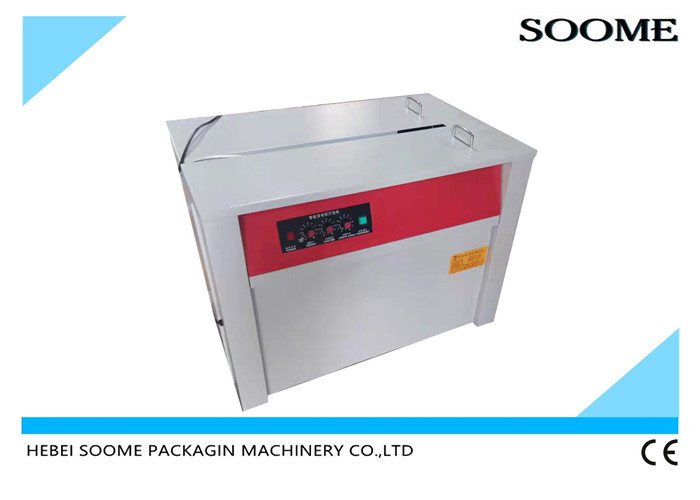

6-15mm PP Carton Semi Auto Strapping Packer Machine
Advantages:
In the corrugated cartons making and transportation process, strapping / Packing cartons is the last procedure.
First use Corrugated Production Line to produce corrugated paperboard in different sizes, thickness, specifications and quality. Second use Thin Blade Slitter Scorer machine to slit into needed sizes and crease lines. Third put the sheets on Flexo Printer Slotter Rotary Die-cutter machine to print needed words, patterns and colors, and slot or die-cut into different shapes. Forth, put the printed cardboard on Folder Gluer machine to make into cartons. Fifth, after glued the cardboard into cartons, need strapping machine to pack them well waiting for transportation or selling.
Technical Spec:
| Model | DB-200 |
| Electrical | 1PH,220V,50HZ |
| Power consumption | 250W 50HZ |
| Strap width | 6-15mm |
| Strapping width | 60mm-unlimited |
| Strapping speed | ≤3second/one strap |
| Tension adjustment | 100N |
| Working table height | 814mm |
| Machine dimension(L×W×H) | 900×570×730mm |
| Machine weight | 90 kgs |
