3/4/5 Color Automatic Corrugation Machine Flexo Printer Folder Gluer

3/4/5 Color Automatic Corrugation Machine Flexo Printer Folder Gluer

  • 3/4/5 Color Automatic Corrugation Machine Flexo Printer Folder Gluer
  • 3/4/5 Color Automatic Corrugation Machine Flexo Printer Folder Gluer
3/4/5 Color Automatic Corrugation Machine Flexo Printer Folder Gluer
Product Details:
Place of Origin: China
Brand Name: Soome
Model Number: JK-Linkage
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact
Packaging Details: Plastic film or Wooden box, 20 feet container or 40 feet container
Delivery Time: 65 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 set per year
Contact Now
Detailed Product Description
Certification: ISO,CE Guarantee: 1 Year
Packaging: Plastic,wood Driven: Electric
Key Selling Points: Lingkage Line Color: White And Black
Condition: New Automatic Grade: Automatic
Voltage: 220V/380V/440V Name: Flexo Printing Machine
High Light:

5 color automatic corrugation machine


printer folder gluer automatic corrugation machine


4 color corrugation machine fully automatic

Carton Making Machines Box Packing Machine 3/4/5 Color Flexo Printer Folder Gluer Machine


This machine aimed at solving the existing carton printing machinery poor automation, low stability, poor reliability, unsightly appearance, short life and other problems. The product adopts high speed direct printing method, which integrates printing, drying, glazing, slotting, die-cutting, gluing box, folding and carton forming. It can complete the production process from corrugated board to finished packaging carton at one time. Products are equipped with automatic feeding unit, automatic computer control, digital display, using precision servo motor and electronic modules to adjust and monitor the entire production process.


Main technical parameters:


Model LUM-1800 LUM-2000 LUM-2200 LUM-2400 LUM-2600 LUM-2800 LUM-2600
Roller diameter(mm) 468 468 468 468 468 530 530
Max.feeding size (mm) 1800 2000 2200 2400 2600 2800 2600
Max.printing size (mm) 1470×1600 1470×1800 1470×2000 1470×2200 1470×2400 1600×2600 1600×2400
Color accuracy (mm) two color ±0.5 three color ±0.75
Slotting width* depth 7mm*300mm Transmission mode Chain type
Slot Accuracy (mm) ±1.5 Work speed (sheets/min) 0-60 sheets/min
Electrical power (KW) 3.0 3.0 3.0 4.0 4.0 5.5 5.5






























Machine features and features:

1. The whole machine electrical appliances and computer software are all internationally renowned brands, Chint, Siemens, Taiwan Delta. The quality is stable and reliable; the man-machine interface, computer order management, easy to operate.

2. The whole machine wall panel and important parts are treated with aging treatment, tempering to eliminate metal internal stress; CNC grinding machine grinding processing is made by high-precision machining center.

3. The whole machine shaft and roller are made of high-quality steel, high-precision computer dynamic balance correction, grinding processing, and hard chrome plating on the surface.

4. The whole transmission gear is made of 40Cr alloy steel, quenched and treated, hardness

HRC58~62; After grinding, 6 grade precision, ensuring high precision of long-term use.

5. The transmission part of the whole machine (shaft and tooth connection) adopts keyless connection (expansion sleeve) to eliminate the connection gap and is suitable for long-term high-speed operation of high torque.

6. The whole machine transmission bearing, the main transmission parts are all domestic famous brand:C&U, easy maintenance and longer service life.

7. The whole machine lubrication system adopts spray type automatic lubrication and is equipped with double oil level oil level balance system.

8. The whole machine adjusts the preset position function, feeding, printing, die cutting, automatic zero return, memory automatic reset.

9. The working gap adjustment of the whole machine is quickly adjusted by using a wrench-free wrench, and the adjustment is quick and convenient.

10. The main engine adopts frequency conversion control, which makes the start up and operation more stable and energy-saving.

technology can save energy consumption.

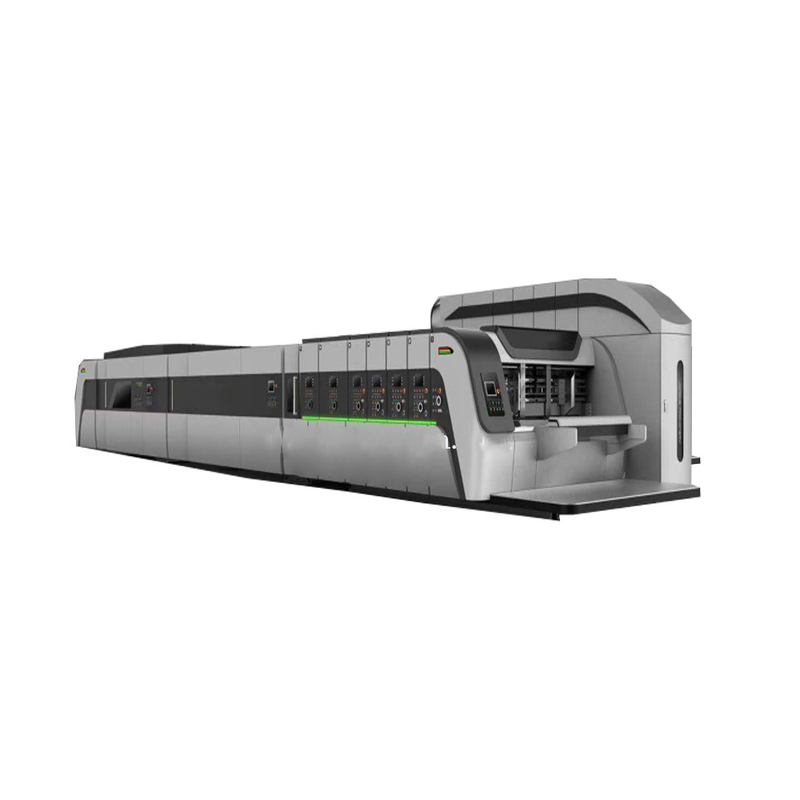

3/4/5 Color Automatic Corrugation Machine Flexo Printer Folder Gluer 0

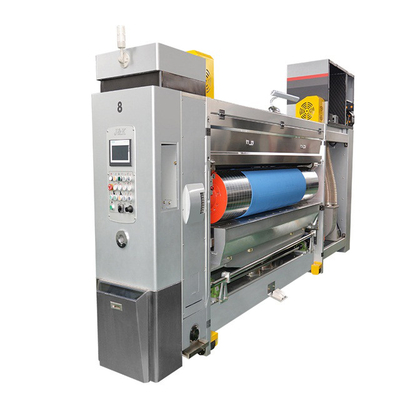

3/4/5 Color Automatic Corrugation Machine Flexo Printer Folder Gluer 1
