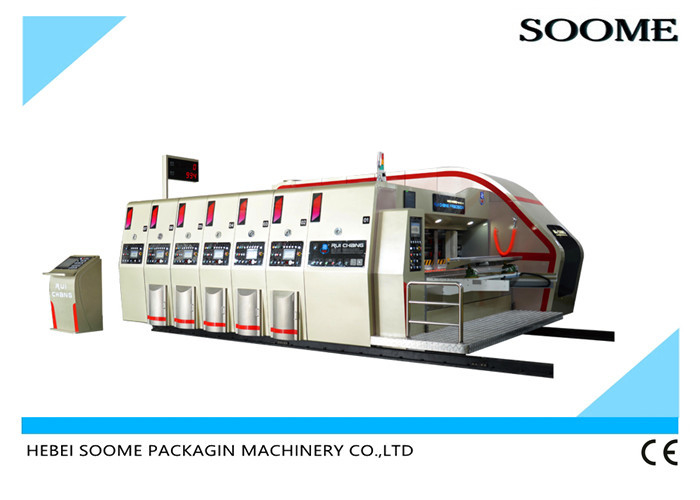

Vacuum Transfer 4 Color Printing Slotter Die Cutting Machine With Stacker

large.img.alt
small.img.alt small.img.alt

Large Image :  Vacuum Transfer 4 Color Printing Slotter Die Cutting Machine With Stacker

Product Details:
Place of Origin: China
Brand Name: SOOME
Certification: CE
Model Number: ZYK1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: wrapped with plastic film
Delivery Time: 60 days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 set pre/year
Detailed Product Description
Linkage Line Speed: 300m/min Minimum Square Size Of Folding Box: 350*260 Mm
Maximum Box Size Of Folding Box: 1375*1200 Mm Total Mechanical Weight: 15 T
Effective Printing Area: 1200*2400 Mm Min Paper Size: 300*550 Mm
Skip Feeding Size: 1280*2400 Mm Board Thickness: 2-11 Mm
Voltage: 380V/400V/415V Or Others Driven Type: Electric And Pneumatic
High Light:

stacker 4 color printing slotter die cutting machine

,

soome 4 color printing slotter die cutting machine

,

vacuum transfer 4 color printer slotter die cutter

Vacuum Transfer 4 Color Print Slotter Die Cutting Machine With Stacker



Function and characteristic:



Delta inverter and PLC ,touch screen operation .

Schneider contactor/ electric

Gear adopt 20CrMnTi material with grinding technology with thickness 60mm

Feeding stroke can be adjusted.

3 pcs servo motor for control the feeding unit, it is higher precision.

Units combined and detached by motor with alarm bell

Friction clutch installed on transmission roller which avoid machine damaged by mis-operation.

There is protect system for main motor(machine can not working when it is not locked for combination).

Four rollers for feeding, upper two rollers wrapped with rubbers which can keep the flute in good shape, not destroyed .

Dust removal device is installed

Front baffle is adjusted by manual.

Skipping feeding is available.



Technical index:



Type

Unit

ZYK1224

Working speed

Pcs/min

120-180

Max paper coverage

mm

1200*2400

Effective printing area

mm

1200*2400

Min finish size

mm

350*650

cardboard thickness

mm

2-10

Wall thickness

mm

60mm

Print precision

mm

≤±0.5

Slotter precision

mm

≤±1.5

Die cut precision

mm

≤±1.5



























Material:



Independent servo motor for die cut unit, it has less interference on print precision.

Auto zero with order memory function.

Touch screen and button operation .

Schneider contactor/ electric

Gear adopt 20CrMnTi material with grinding technology with thickness 60mm.

Die cut roller and anvil roller adopt dynamic balance technical for steady working.

Operator can operate the machine also when he is in the back of machine.

Vacuum Transfer 4 Color Printing Slotter Die Cutting Machine With Stacker 0

















































































Vacuum Transfer 4 Color Printing Slotter Die Cutting Machine With Stacker 1



















































































Vacuum Transfer 4 Color Printing Slotter Die Cutting Machine With Stacker 2
