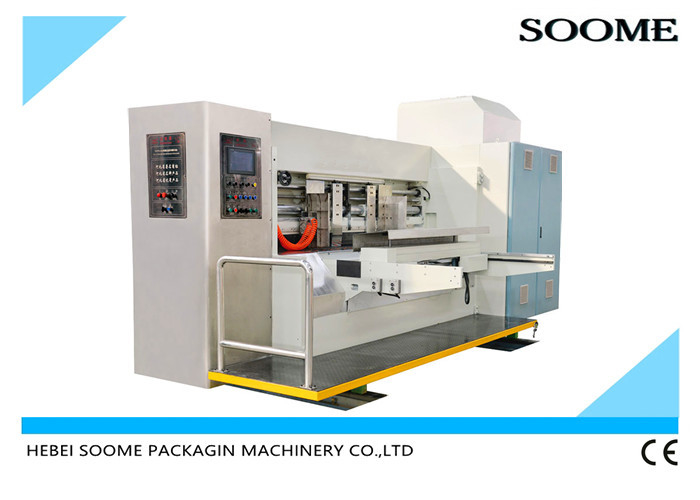

1224 Common Model Making Corrugated Carton Printing Machine CE

  • 1224 Common Model Making Corrugated Carton Printing Machine CE
  • 1224 Common Model Making Corrugated Carton Printing Machine CE
Place of Origin China
Brand Name SOOME
Certification CE
Model Number SMYS-QY-2600
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details wrapped with plastic film
Delivery Time 60 days after received deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 30 set pre/year
Product Details
Machine Speed 180 M/min Minimum Square Size Of Folding Box 350*260 Mm
Maximum Box Size Of Folding Box 1375*1200 Mm Total Mechanical Weight 15 T
Maxpaper Size 1200*2400 Mm Min Paper Size 300*550 Mm
Skip Feeding Size 1280*2400 Mm Board Thickness 2-11 Mm
Voltage 380V/400V/415V Or Others Driven Type Electric And Pneumatic
High Light

1224 corrugated carton making machine

,

1224 corrugated carton printing machine

,

ce corrugated carton printing machine
Leave a Message
Product Description

1224 common model corrugated carton making printing machine



Function and characteristic:



carton box making machine prices YKW 1270 series corrugated carton box printing machine is used for high graphic corrugated carton printing, adopt sun lead edge feeder, sun doctor blade , ceramic roller, keep the quality highest, also bright oil and uv coating, slotting, ratory die cutting. keep the speed from 80-150pcs/min, big production per day.



Material:



Wallboard thickness: 50mm

Gears thickness: 50~60mm

Inner housing thickness: 6mm steel plate

Outer housing thickness: 2mm

Common gears material: 40# chrome, hardness 50~55

45# steel, with quenching, hardness 45~50

Our gears material: 20# chrome, hardness 60~65. With Mn and Ti, good toughness



Technical index:



Type Unit SMYS-QY-2600
Plate roller diameter mm ￠380
Plate roller length mm 2500
Inner width of machine mm 2600
Speed pcs／min 240
Max printing area mm 1200×2200
Max feeding paper size mm 1200×2400
Feeding paper by skip mm 1280x2400
Min feeding paper size mm 300×550
Board thickness mm 2－11
Print plate thickness mm 7.2



1224 Common Model Making Corrugated Carton Printing Machine CE 0

















































































1224 Common Model Making Corrugated Carton Printing Machine CE 1

















































































1224 Common Model Making Corrugated Carton Printing Machine CE 2
