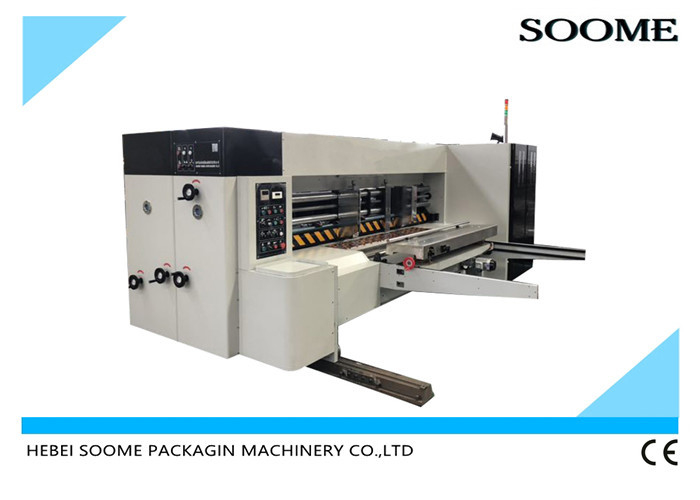

1 Colors Ink Printing Slotting Die Cutting Machine

  • 1 Colors Ink Printing Slotting Die Cutting Machine
  • 1 Colors Ink Printing Slotting Die Cutting Machine
Place of Origin Hebei China
Brand Name SOOME
Certification CE certification
Model Number SMYS-1224
Minimum Order Quantity 1 set
Price negotiated
Packaging Details Wrapped with film or in wooden case
Delivery Time 25-40days after deposit
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100sets per month
Product Details
Warranty 1 Year Condition New
Machine Max Speed 120 Pieces/min Max Feeding Size (L×W) 1200mm×2600mm
Min Feeding Size (L×W) 350mm×650mm Skip Feeding Size 1400*2400mm
Max Printing Size 1200*2400mm Thickness Of Paperboard 1.8-12mm
Color Register 0.5-0.75 Thickness Of Print Plate 7.2mm
High Light

1color printing slotting die cutting machine

,

ink printing slotting die cutting machine

,

lead edge feeding automatic corrugation machine
Leave a Message
Product Description

1224 Model 1 Colors Ink Printing Slotting Die Cutting Machine

Function and characteristics:



Printing unit:



The surface of the steel pipe is ground, pressed and plated with hard chromium.

Balance correction, smooth operation

Mesh number for the first group of 220 mesh, customers can choose the mesh number or ceramic stick.



Technological Parameter



Name of Parameter Unit Specification
GYK900X1800 GYK1200X2200 GYK1600X2400
Inside Width mm 2100 2500 2700
Working speed Pieces/min 120 160 150
Max Feed size mm 900x1800 1200x2200 1600x2400
Min Feed size mm 280x600 350x600 420x700
Feed paper skip mm 1100x1800 1500x2200 1700x2300
Max print size mm 840x1700 1150x2200 1600x2200
Print Precision mm +-/0.75 +-/0.75 +-/0.75



Feeding-unit:



1. Lead edge feeding type.

2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

Air suction auxiliary paper feeding, 7.5KW frequency conversion fan, according to different bending conditions of cardboard, the air volume can be adjusted to ensure smooth paper supply. (The valve adjusts the air volume)



1 Colors Ink Printing Slotting Die Cutting Machine 0



























































1 Colors Ink Printing Slotting Die Cutting Machine 1
