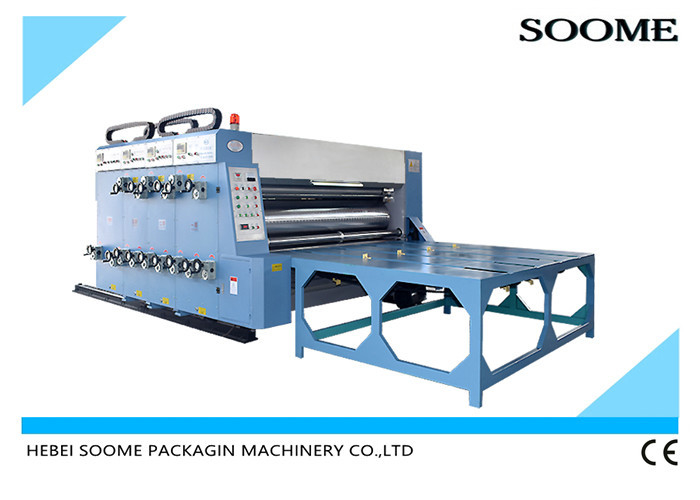

Chain Feeding 920mm Corrugated Carton Printing Machine Flexo Ink 3 Color
Place of Origin | Hebei China |
---|---|
Brand Name | SOOME |
Certification | CE certification |
Model Number | SMYS-1224 |
Minimum Order Quantity | 1 set |
Price | negotiated |
Packaging Details | Wrapped with film or in wooden case |
Delivery Time | 25-40days after deposit |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 100sets per month |
Product Details
Warranty | 1 Year | Condition | New |
---|---|---|---|
Machine Max Speed | 80 Pieces/min | Max Feeding Size (L×W) | 1200mm×2400mm |
Min Feeding Size (L×W) | 350mm×600mm | Skip Feeding Size | 1500*2400mm |
Max Printing Size | 1200*2360mm | Thickness Of Print Plate | 7.2mm |
Max Slotting Depth | 300mm | ||
High Light | 920mm 3 color flexo printing machine,chain feeding corrugated carton printing machine,920mm corrugated carton printing machine |
Product Description
Chain Feeding Flexo Ink 3 Color Corrugated Carton Printing Machine
Function and characteristics:
1. This machine adopts the up-to-date international design idea of electromechanical integration for high-grade printing.
2. It features in elegant appearance, compact structure, and high-degree automation.
3. It provides high printing sharpness, low topping error, and convenient adjustment.
4. Phase adjustment is made electrically, locking and stencil plate lifting are made pneumatically, And the ink distribution can be done automatically.
5. The adjustment system can realize high-standard, high-precision prompt phase adjustment within360°circumferentially.
6. The adjustment can be made with high precision via computer control without shutting down the overall machine. Gear lubrication device is adopted.
2. It features in elegant appearance, compact structure, and high-degree automation.
3. It provides high printing sharpness, low topping error, and convenient adjustment.
4. Phase adjustment is made electrically, locking and stencil plate lifting are made pneumatically, And the ink distribution can be done automatically.
5. The adjustment system can realize high-standard, high-precision prompt phase adjustment within360°circumferentially.
6. The adjustment can be made with high precision via computer control without shutting down the overall machine. Gear lubrication device is adopted.
7. The slotting positions and carton height are adjusted manually. The four cutter are adjusted simultaneously to save the changing time..
Technological Parameter:
automatic carton making machine | 920 | 1224 | 1426 | 1628 |
Max speed (pcs/min) | 300 | 250 | 180 | 160 |
Feeding precision(mm) | ±1 | |||
Min sheet size(mm) | 300*600 | 420*600 | 450*600 | 450*600 |
Max sheet size(mm) | 860*2100 | 1150*2500 | 1350*2700 | 1500*2900 |
Skip sheet size|(mm) | 1200*2100 | 1500*2500 | 1800*2700 | 2000*2900 |
Max printing area(mm) | 900*2000 | 1200*2400 | 1400*2600 | 1600*2800 |
Printing precision(mm) | ±0.5 | |||
Plate thickness(mm) | 7.2 | |||
positive knife Min slotting distance negative knife |
130*130*130*130 | 140*140*140*140 | 150*150*150*150 | |
230*65*230*65 | 230*70*230*70 | 240*75*240*75 | ||
Max slot depth | 230 | 300 | 360 | 400 |
increase the blade, increase the slot depth | ||||
Slotting precision(mm) | ±1 | |||
Max die cutting size(mm) | 2000 | 2400 | 2600 | 2800 |
Die cutting precision(mm) |
±1 |
