3 5 Layer Corrugated Cardboard Printing Slotting Die Cutting Machine

Basic Information
Place of Origin: China
Brand Name: SOOME
Certification: CE
Model Number: SMYS-QY-2600
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: wrapped with plastic film
Delivery Time: 60 days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 set pre/year
Detail Information
Linkage Line Speed: 300m/min Minimum Square Size Of Folding Box: 350*260 Mm
Maximum Box Size Of Folding Box: 1375*1200 Mm Total Mechanical Weight: 15 T
Maxpaper Size: 1200*2400 Mm Min Paper Size: 300*550 Mm
Skip Feeding Size: 1280*2400 Mm Board Thickness: 2-11 Mm
Voltage: 380V/400V/415V Or Others Driven Type: Electric And Pneumatic
High Light:

corrugated printing slotting die cutting machine


3layer printing slotting die cutting machine


5 layer slotting die cutting machine

Product Description

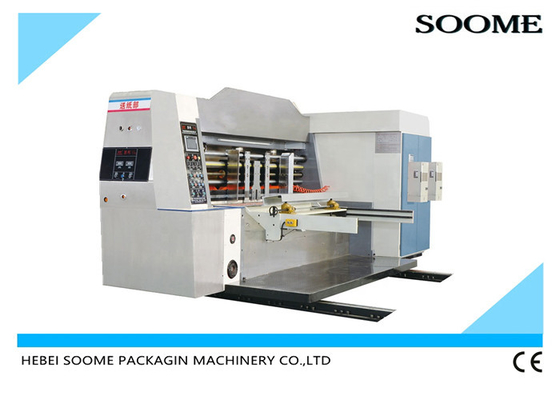

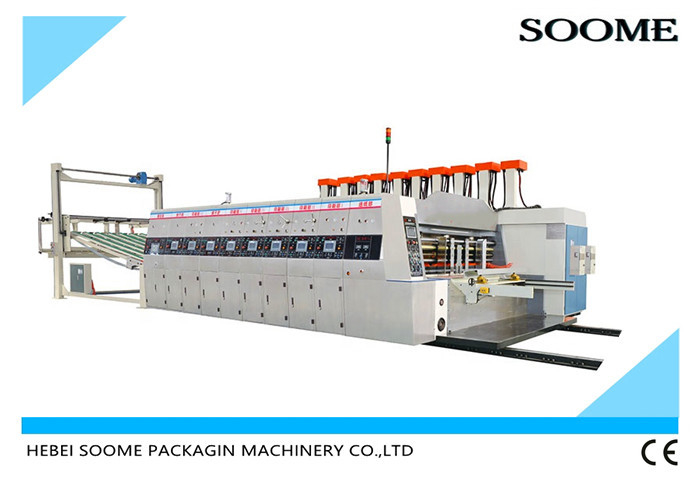

3 5 Layer Corrugated Cardboard Printing Slotting Die Cuttting Machine


Function and characteristic:

1. The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable
.Man-machine interface, Multi-point touch screen control ,computer order management, easy to operate.Replace the order faster(can
be stored 999 orders in advance)
2. Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress;Adopt high precision
machining centers, CNC grinding machine for grinding processing.
3. The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing
correction and surface hard chromium plating.
4. The engine drive gear is adopted 20CrMnTi alloy steel, carburizing,quenching treatment, hardness HRC58-62 and gear grinding
processing precision level 6, and ensured the long-term use of tinted with high precision




Wallboard thickness: 50mm

Gears thickness: 50~60mm

Inner housing thickness: 6mm steel plate

Outer housing thickness: 2mm

Common gears material: 40# chrome, hardness 50~55

45# steel, with quenching, hardness 45~50

Our gears material: 20# chrome, hardness 60~65. With Mn and Ti, good toughness


Technical index:


Type Unit SMYS-QY-2600
Plate roller diameter mm ¢380
Plate roller length mm 2500
Inner width of machine mm 2600
Speed pcs/min 240
Max printing area mm 1200×2200
Max feeding paper size mm 1200×2400
Feeding paper by skip mm 1280x2400
Min feeding paper size mm 300×550
Board thickness mm 2-11
Print plate thickness mm 7.2
Print roller axle circle-oriented regulating degree 360°revolving
Topping precision mm ±0.5
