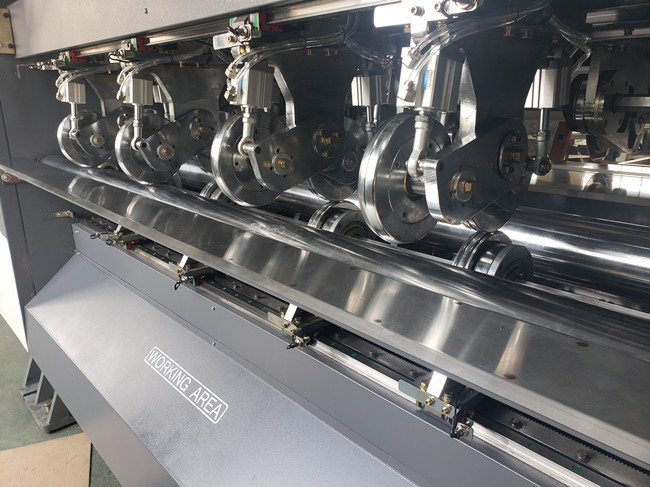

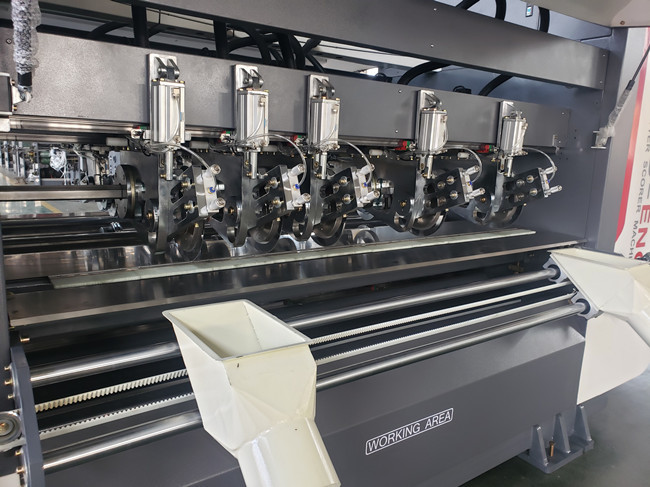

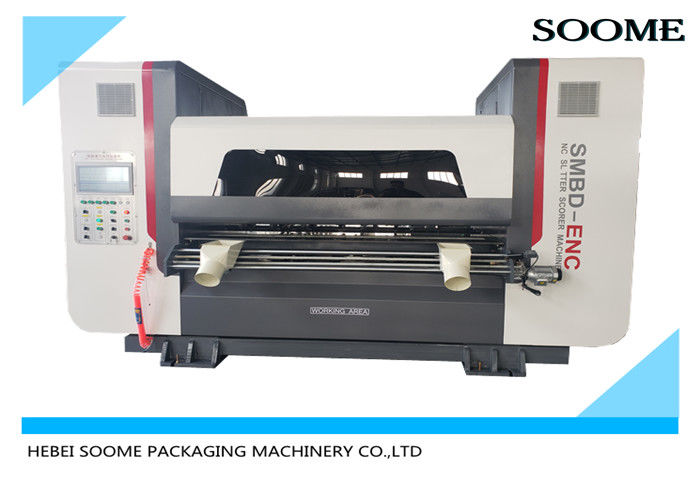

2200mm 7 Blade Corrugated 200m/Min Slitter Scorer Machine
| Place of Origin | Made in China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMBD-ENC |
| Minimum Order Quantity | 1 Set |
| Price | Contact |
| Packaging Details | Wooden case or plastic film 1*20'' container |
| Delivery Time | 60 Days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20 Sets / month |
Product Details
| Wide Size | 2000/2200/2500mm | Blade | 5/6/7 |
|---|---|---|---|
| Scorer | 8/10/12 | Min.scorer | 0mm |
| Usage | Online Cutting And Creasing Corrugated | Speed | 200/250m/min |
| Blade Material | Raw Material, Alloy Tungsten Steel | Precise | ±0.5mm |
| High Light | 2200mm slitter scorer machine,7 blade slitter scorer machine,pneumatic slitter scorer machine |
||
Product Description
2200Mm 7 Blade 200M/min Online Corrugated Thin Blade Slitter Scorer
Product overview:
As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise.Adopt computer-controlled,automatic change order,and reduce waste,improve work efficiency.
| width | 1800mm | 2200mm | 2500mm |
| speed | 150,200,250m/min | ||
| Blade&scorer | 5&8,6&10,7&12 | ||
| Order change |
1s |
||
| precision | ±0.5mm | ||
| Min.slitting | 135mm | ||
| Min.scorer | 0mm | ||
| Correction range |
200mm |
||
| power |
25kw |
30kw | 35kw |
| machine size |
3900*1800*2450(mm) |
4300*1800*2450(mm) | 4500*1800*2450(mm) |
Function and Characteristic:
1 . High quality touch screen and PLC equipped composing the CNC system,connect to the production line.
2 . High quality beeline rail guarantees the precision.
3 . A memory of orders,realize non-stop automatic or manual change.
4 . Speed synchronizes with board speed.Standard communication interface,easy to link with management system.
5 . Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto sharpening
6 . The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.
7 . Two types of scorers:convex to concave ,convex to flat.
8 . Two rows of scorers,realizes minimum scorer spacing is 0mm.
9 . Computer control score-depth,high quality scorer,more steady .
10 . Using the synchronous belt transmission ,low noise,prolong using time.
11 . Standard motorized body left-right rectification system 200mm
