| Place of Origin: | Hebei China |
| Brand Name: | SOOME |
| Certification: | CE certification |
| Model Number: | SMYS-1224 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 25-40days after deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100sets per month |
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Machine Max Speed: | 200 Pieces/min | Max Feeding Size (L×W): | 1200mm×2600mm |
| Min Feeding Size (L×W): | 350mm×650mm | Skip Feeding Size: | 1400*2400mm |
| Max Printing Size: | 1200*2400mm | Thickness Of Paperboard: | 1.8-12mm |
| Color Register: | 0.5-0.75 | Thickness Of Print Plate: | 7.2mm |

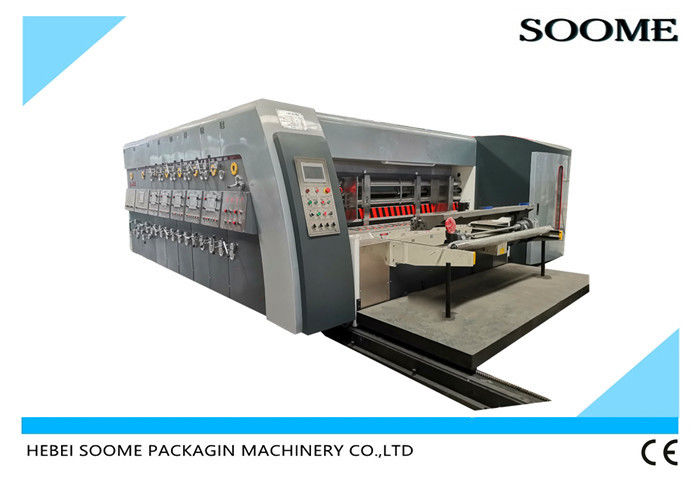

| High Light: | CE Flexo Printer Slotter Die Cutter,SOOME Printer Slotter Die Cutter Machine,CE Printer Slotter Die Cutter Machine |
||
Function and characteristics:
1. The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE (optional).
2. Straight gear drive.The gears are after high frequency quenching and grinding
3. All the rollers are plated with chromium to encrease their hardness.
4. Spray circulated oil lubrication.
5. Return to zero and adjust printing plate automatically.
6. Module-designed. Multicolor printing sections can be combined as your requests.
7. The side baffle of feeder and slotter are all adjusted electrically.
8. PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.
Technological Parameter
| Name of Parameter | Unit | Specification | ||
| GYK900X1800 | GYK1200X2200 | GYK1600X2400 | ||
| Inside Width | mm | 2100 | 2500 | 2700 |
| Working speed | Pieces/min | 180 | 160 | 150 |
| Max Feed size | mm | 900x1800 | 1200x2200 | 1600x2400 |
| Min Feed size | mm | 280x600 | 350x600 | 420x700 |
| Feed paper skip | mm | 1100x1800 | 1500x2200 | 1700x2300 |
| Max print size | mm | 840x1700 | 1150x2200 | 1600x2200 |
| Print Precision | mm | +-/0.75 | +-/0.75 | +-/0.75 |
| Standard print plate thickness | mm | 7.2 | 7.2 | 7.2 |
| Print board Thickness | mm | 3-9 | 3-9 | 3-9 |
| Min slot space | mm | 300x100x300x100 | 300x100x300x100 | 300x100x300x100 |
| Max slot depth | mm | 210 | 300 | 300 |
| Power | kw | 18.5 | 22 | 22 |
| Weight | kg (about) | 16000 | 19000 | 22000 |
Feeding-unit:
1. Lead edge feeding type.
2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.
3. Front baffle can be electrically adjusted with scale on it, easily understood.
4. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.
5. Clutch of the machine is controlled electrically. With alarm.
6. Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality
7. Skip feeding device with continuous feed or spacing feed options.
8. Pneumatic interlocking mechanism.
9. Equipped with dust clean device for the printing side of the paperboard and improve the printing quality
10. PLC and color touch screen. Lower failure and higher efficiency, and is easy to learn and operate.
11. The main machine and fan motor applies transducer speed regulation,stable and energy saving.
Printing unit:
1. The printing roller and trace pressing roller: good quality SSTU, grinded and hard chrome-plated.
2. Hang printing plate system, it is easy to install and change printing plate. Foot switch operate.
3. International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment.
4. Special planet gear design enables long service life.
5. Equipped with auto braking device with braking mechanism to lock rotation of press plate roller and maintain the fixing point of original gears when the printing machine breaks away
6. With auto reset system after cleaning
7. Computerized digital axis adjustment,with adjustmental distance of ±10mm
8. Equipped with auto raising device on the reticulate roll,separated the printing board when stopping feed paper
9. All the intervals adopt computerized adjustment and digital setting
10. Installed with ink roller rotation electrical machinery to prevent water ink drying while main machine stopping.
